LCD Display DC AC Inverters 12V 24V 48V DC to 110V 220V AC Pure Sine Wave Power Inverter 1500W

Product Description

`
LCD Display DC to AC Pure Sine Wave Power Inverter 1500W (12V/24V/48V DC to 110V/220V AC)
LCD Display DC AC Inverters 12V 24V 48V DC to 110V 220V AC Pure Sine Wave Power Inverter 1500W
Product Description
Smart LCD Display Pure Sine Wave DC to AC Power Inverter Specifications
Model DSA1500-12 DSA1500-24 DSA1500-48
DC Input
DC Input voltage 12V 24V 48V
DC Input voltage range 10~15V 20~30V 40~60V
AC Output
AC Output Voltage 110Vac±5% | 220Vac±5% | 230Vac±5% | 240Vac±5%
Output Frequency 50Hz or 60Hz±0.1%
Output Rated Power 1500W
Output Peak Power 3000W
Wave Pure Sine wave

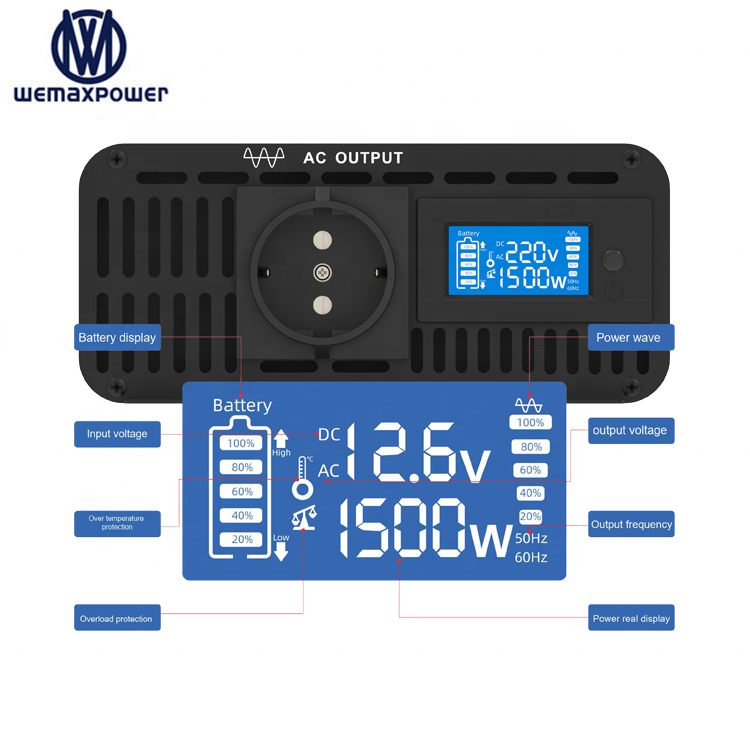

Smart LCD Display Digital LCD Display (Input Battery ratio, Temperature, DC input voltage, Output power, Load ratio, output frequency and alarm information)
Conversion Efficiency ≥90%
Multi Protect Function
Input Low Voltage Protection 12V (10V±0.3) | 24V (20V±0.3) | 48V (40V±0.3)
Input Recovery voltage 12V (13.2V±0.3) | 24V (25.5V±0.3) | 48V (51V±0.3)
Input Over voltage Protection 12V (15V±0.3) | 24V (30V±0.3) | 48V (60V±0.3)
Over Temperature Protection Over temperature protection: 80°±5°C
No-load current 0.7A
Over load protection ≤130%
Total Harmonic Distortion ≤4% full load
Working temperature -5~+50°C
Storage temperature -20~+70°C
Cooling method Forced air cooling
Size(mm) 360*173*76mm
Weight (kg) 3.5kg
Product Presentation & Details
Frequently Asked Questions
Q Why is the quotation higher than some other suppliers?
A: In the domestic market, high and low-quality inverter brands are mixed together. Many low-cost inverters are actually assembled in unlicensed workshops. They are built crudely with substandard components to reduce costs, which presents a significant security risk. To protect personal safety and property, please prioritize reliability over low prices and choose a trusted inverter.
Q How many categories does it have according to the output waveform?
A: Type One (Modified Sine Wave Inverter): This type uses PWM pulse width modulation to generate a modified sine wave. Featuring a dedicated intelligent circuit and high-power field effect tube, it reduces power loss and includes a soft-start function to ensure reliability. It meets the needs of most electrical equipment that does not demand premium power quality. However, it exhibits a 20% harmonic distortion when running sophisticated equipment and can cause high-frequency interference to radio communications. They are efficient, quiet, moderately priced, and represent the market mainstream.

Type Two (Pure Sine Wave Inverter): This type adopts an isolated coupling circuit design, providing high efficiency, stable output waveform, and high-frequency technology. It is small in size and compatible with all types of loads, including common electrical appliances and inductive devices (such as refrigerators, electric drills, etc.) without causing interference or noise (like buzzing or TV static). Its output is equivalent to or better than the utility grid, as it contains no electromagnetic pollution.
Q Is the output voltage of the inverter stable?
A: Absolutely. Our inverter is designed with an advanced regulator circuit, keeping the output voltage highly stable. Note that measuring with a conventional multimeter may show unstable readings because ordinary multimeters cannot correctly calculate data for non-pure sine waveforms.
Q What are resistive load appliances?
A: Generally, appliances like mobile phones, computers, LCD TVs, incandescent bulbs, electric fans, video broadcasts, small printers, electric mahjong machines, and rice cookers belong to resistive loads. Our modified sine wave inverters can power these devices successfully.
Q What are inductive load appliances?
A: Inductive load appliances utilize electromagnetic induction principles, typically found in high-power motor-driven devices, compressors, relays, fluorescent lamps, electric stoves, refrigerators, air conditioners, energy-saving lamps, and pumps. These products require 3 to 7 times their rated power during startup. Therefore, only pure sine wave inverters are suitable for running them safely.
Q What should be noticed when installing the inverter?
A: Install the product in a place that is well-ventilated, cool, dry, and waterproof. Please do not place foreign objects or apply stress to the inverter. Always remember to turn on the inverter before turning on your connected appliances.
