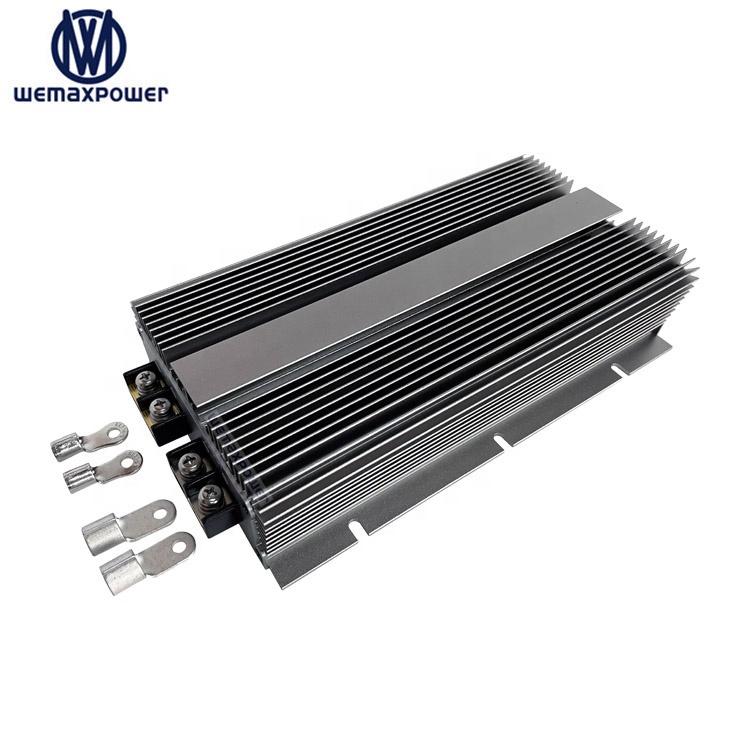

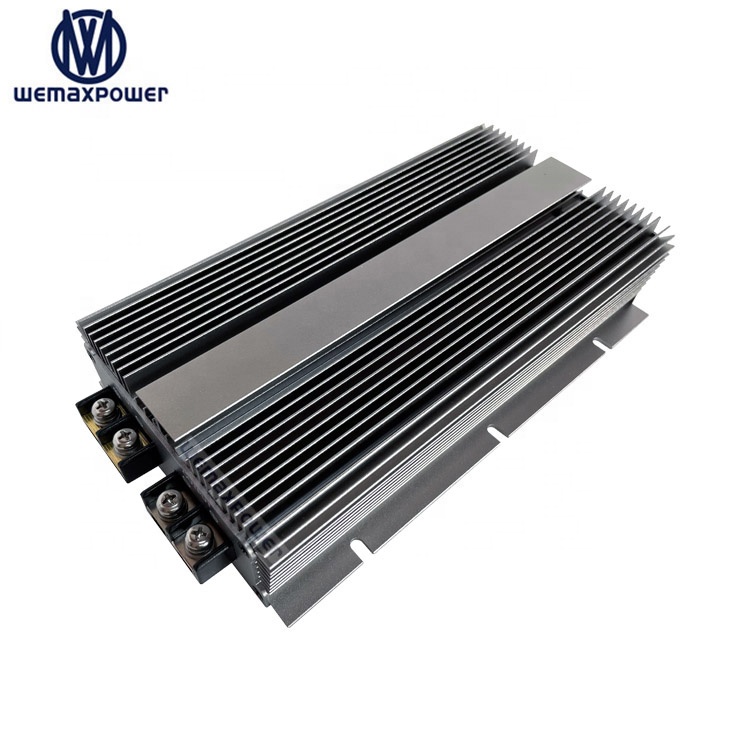

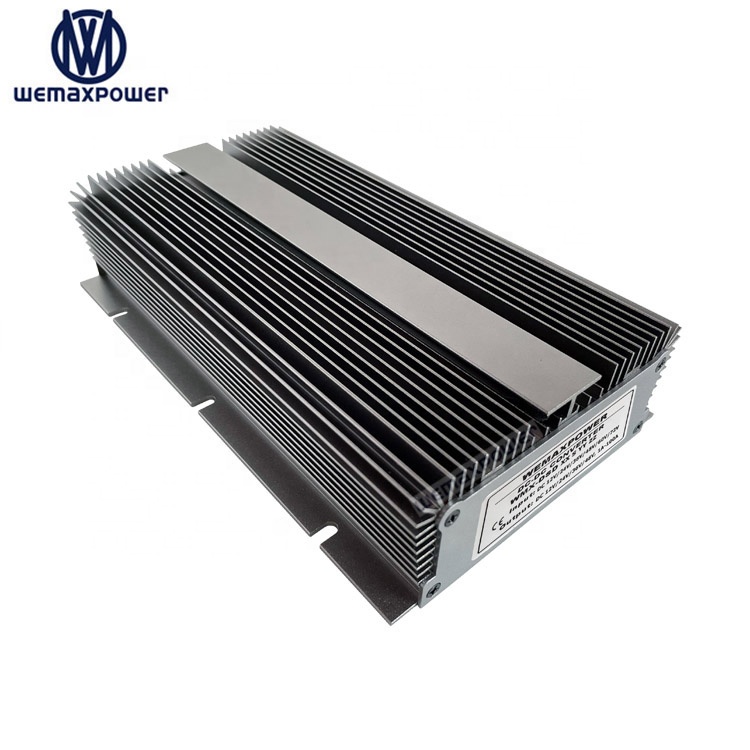

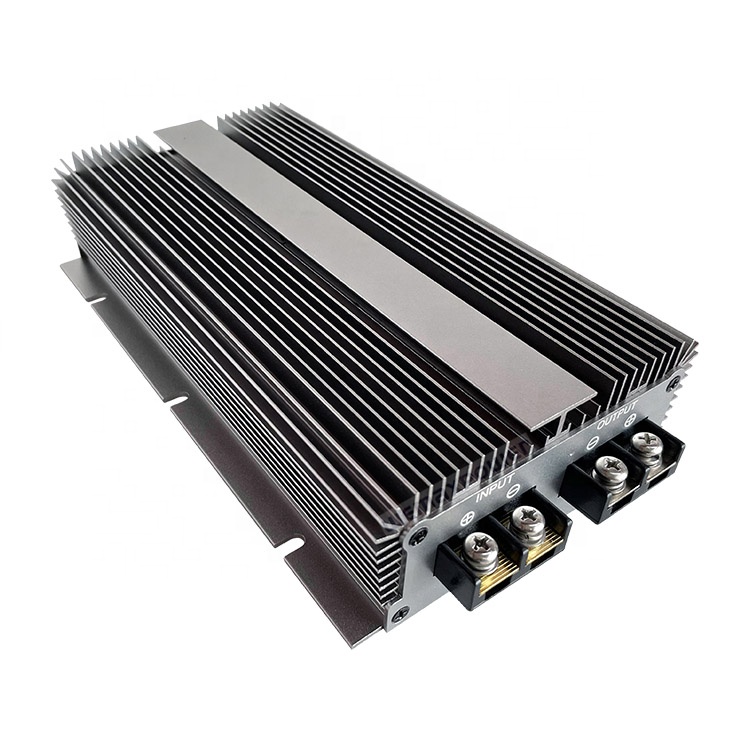

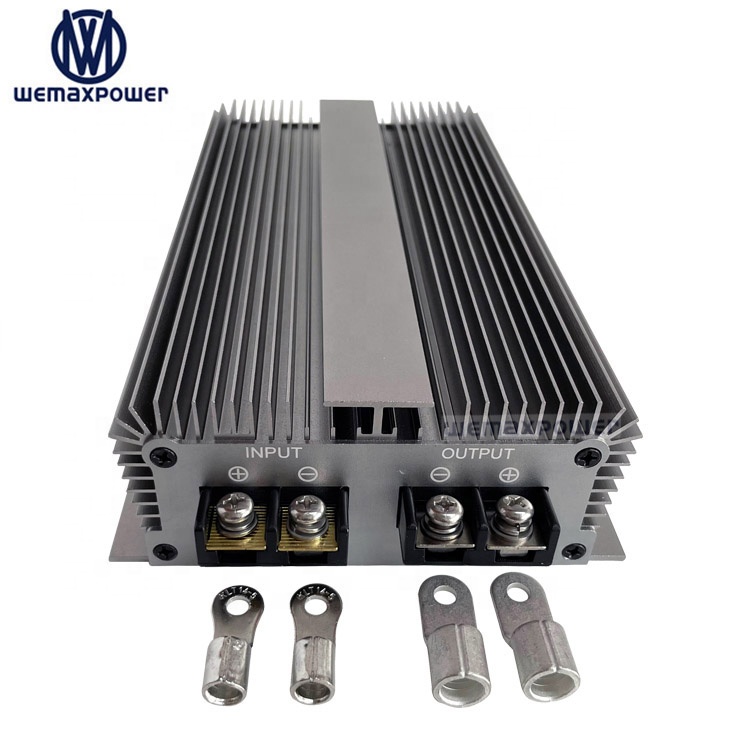

High Efficiency 12vdc 24vdc Voltage boost 48vdc 30amp 1440W Step up Module 30A Dc Dc Converter 12v 24v to 48v

Product Description

High Efficiency 12vdc 24vdc Voltage boost 48vdc 30amp 1440W Step up Module 30A Dc Dc Converter 12v 24v to 48v

High efficiency 12vdc 24vdc voltage boost 48vdc 30amp 1440W step up module 30A dc dc converter 12v 24v to 48v

DC DC Converter 12v 24v to 48v 30A

divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
divider
Series NO. WMX-D1224D48
Model NO. WMX-DSD1224S4830
Product Name dc dc converter 12v 24v to 48v
Input rated voltage 12/24Vdc
Input voltage range 8-32Vdc
Conversion Efficiency 96%
Output voltage 48Vdc
Output current 30A
Output rated power 1440W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 180mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 220*130*50mm
N. Weight 2.5kg
Cooling way Free air convection
Other Standard box packing
divider
Product detail 1

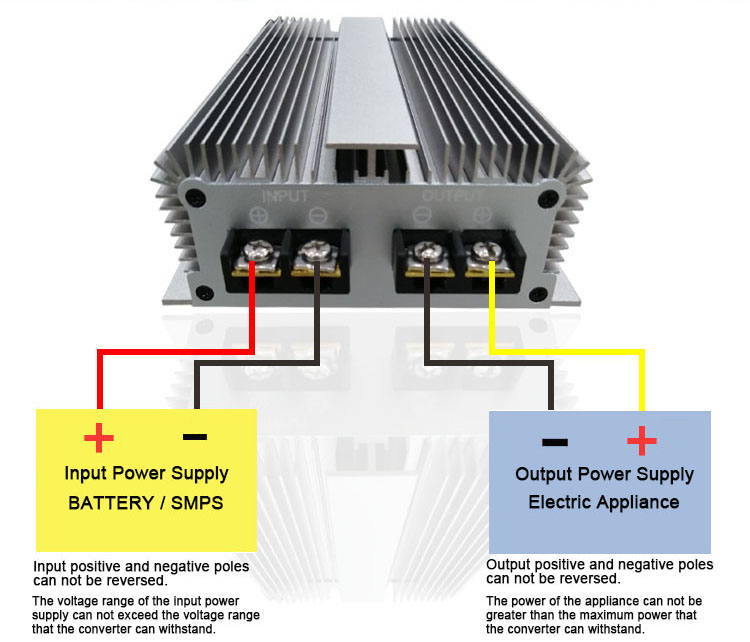

Product detail 2
divider
Product detail 3
Product detail 4
divider
Product installation
FAQ
divider
Q1 What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q2 How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.

Q3 If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?

Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.

Q4 Can I buy 1 or 2 pieces of samples for testing before place bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.

Q5 What is your Minimum Order Quantity?

Different products have different MOQ, generally speaking, our MOQ is 1pc, please don't hesitate to check with us for specific items.

Q6 What about delivery date?

If we have stock of the item you need, we can send goods to you within 1-3 working days after receiving deposit or 100% payment into our bank account. If we don't have free stock, the delivery date can be different for different products. Generally speaking, it will take 1 to 4 weeks.
