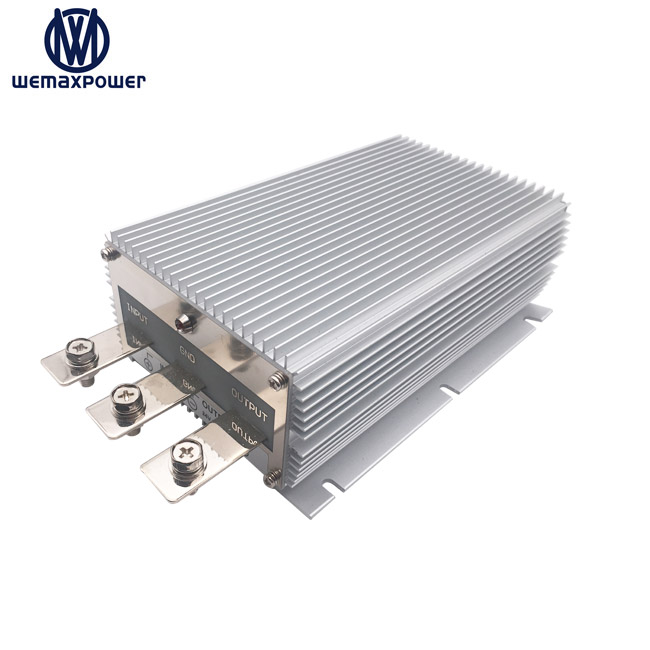

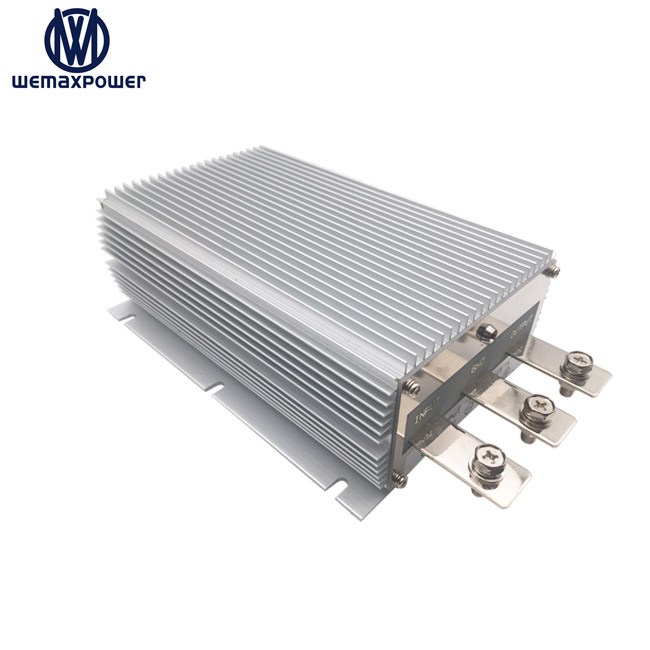

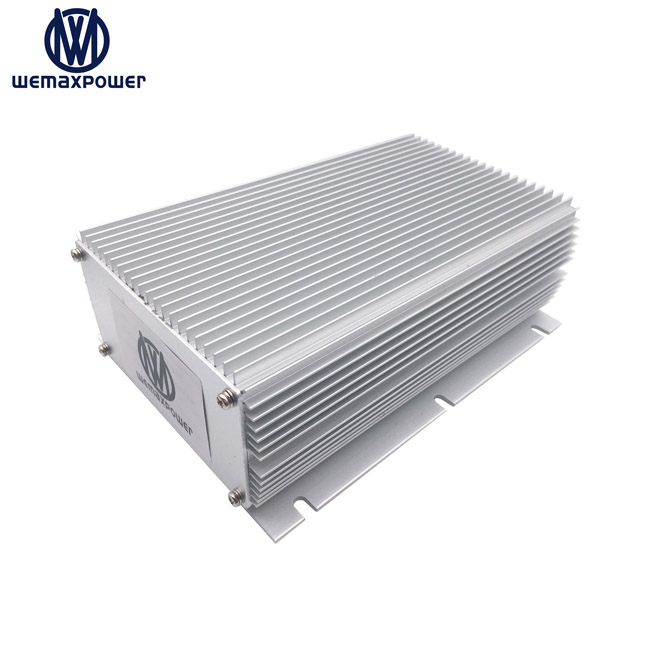

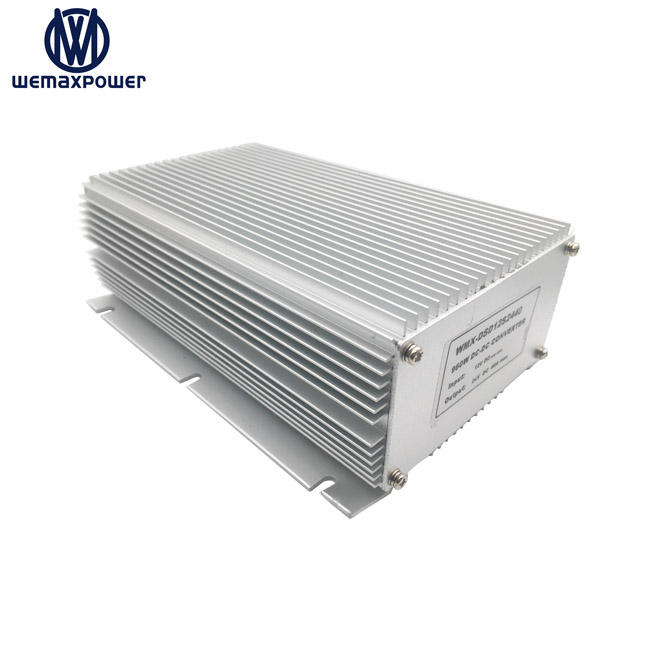

Good Heat Dissipation 12VDC to 24VDC 40A Single Phase DC-DC Boost Converter for Automotive Home & Motor Use 96% Efficiency

1 / 4

Good Heat Dissipation 12VDC to 24VDC 40A Single Phase DC-DC Boost Converter for Automotive Home & Motor Use 96% Efficiency

Send Inquiry

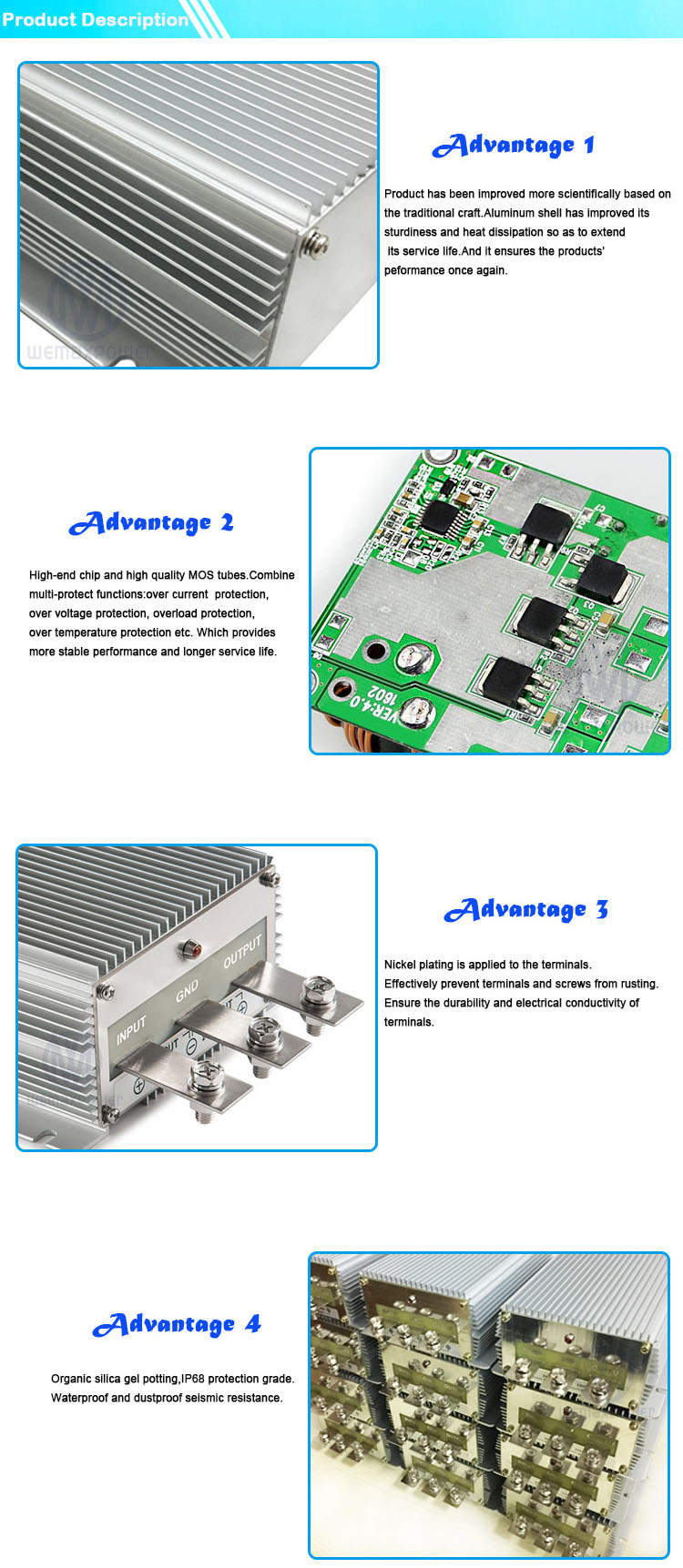

Product Description

12v to 24v 40a dc step up converter

High quality components.
Full power, stable voltage & current output.
Wide input voltage range.
Waterproof & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast aluminum shell, epoxy potting.
Non-Isolated Module.

Series NO.	WMX-D12D24
Model NO.	WMX-DSD12S2440
Product Name	12v to 24v 40a dc step up converter
Input rated voltage	12Vdc
Input voltage range	10-16Vdc
Conversion Efficiency	96%
Output voltage	24Vdc
Output current	40A
Output rated power	960W
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	18012763mm
N. Weight	1.9kg
Cooling way	Free air convection
Other	White box packing

Buyer Feedback

Frequently Asked Questions

Why choose our DC-DC converters?

We are an experienced DC-DC converter manufacturer with over 10 years of history. The performance of our converters is highly stable, and our technology is updated annually to incorporate the latest industry standards.

Is there any specific requirement for the load?

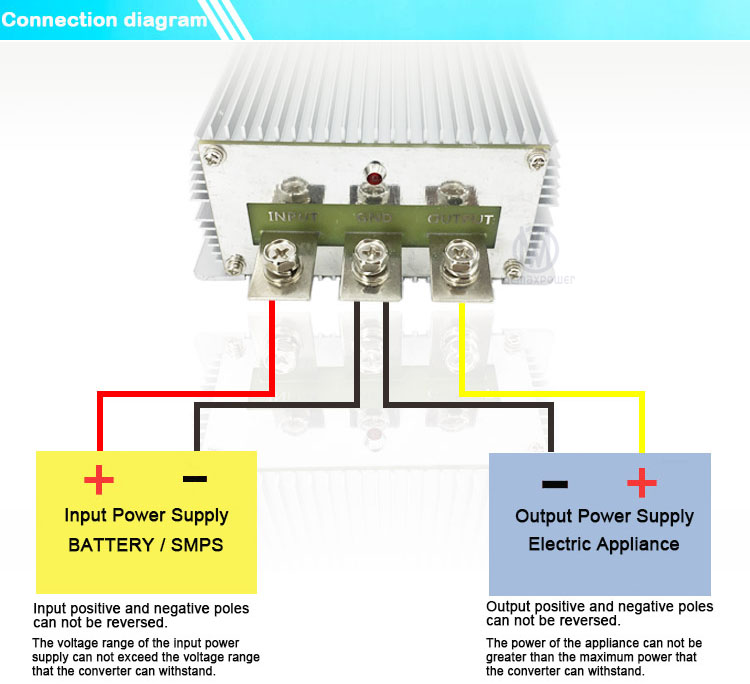

Yes, these DC-DC converters output a fixed voltage, so they cannot be used to charge batteries directly. If you require battery charging capabilities, please choose our dedicated DC-DC battery chargers.

Why are some other products on the market cheaper?

Many lower-cost alternatives use inexpensive, lower-grade components, which often results in insufficient power output and lower efficiency. Our products use imported components designed to support continuous, long-term, full-load operation.

What is your warranty and after-sales service policy?

We offer a 1-year guarantee on our products. Under our return and exchange policy, we will exchange goods if any quality issues arise within the warranty period.

What are the available payment and shipping options?

We support multiple payment methods including L/C, T/T, Western Union, MoneyGram, and PayPal. For logistics, we offer delivery via DHL, UPS, FedEx, TNT, EMS, and sea freight.

What is the minimum order quantity (MOQ) for the 12V to 24V converter?

We offer a low MOQ policy. We support sample orders of 1 to 5 units for testing purposes.
