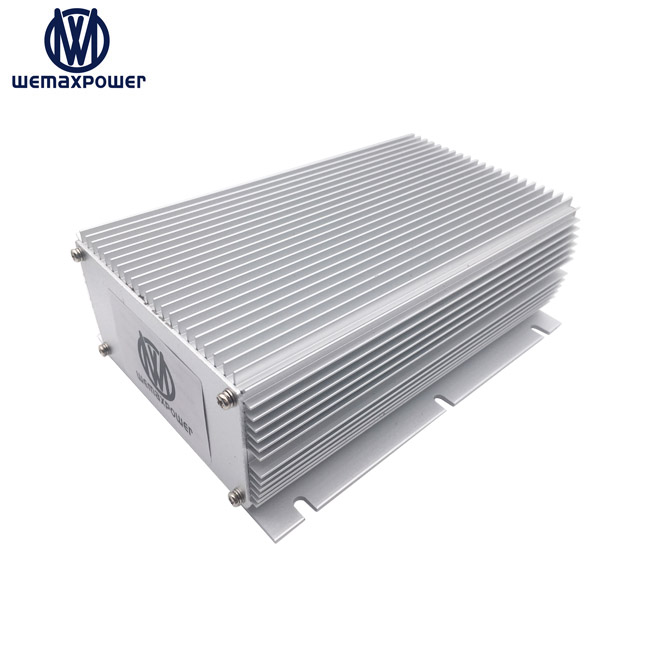

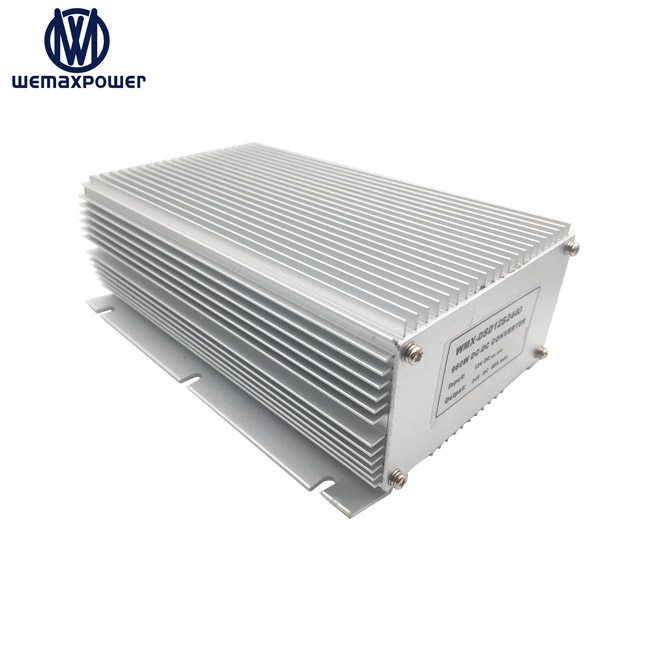

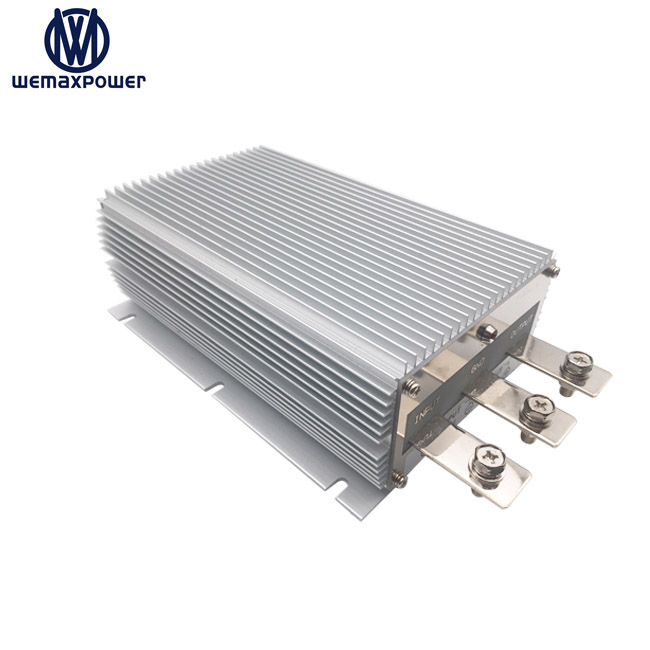

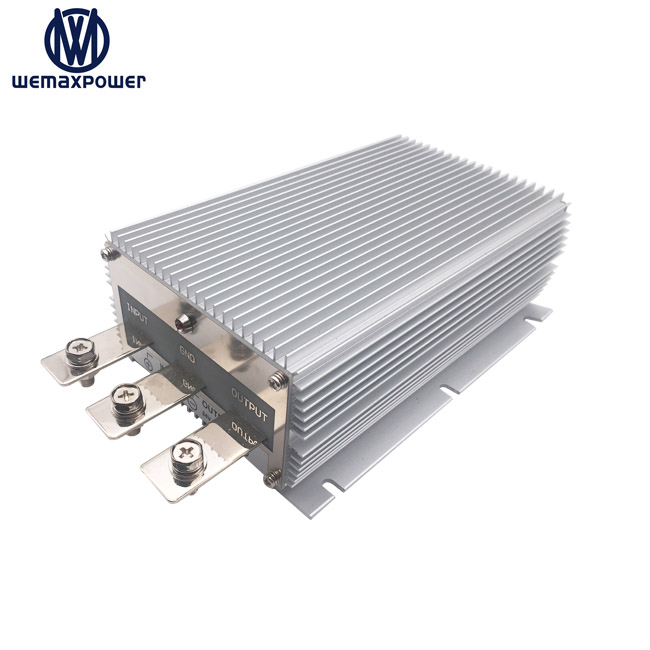

High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
1 / 4
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use
High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use

High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use

Send Inquiry

Product Description

Good heat dissipation 12vdc boost 24vdc 40A car voltage regulator 12v to 24v dc-dc boost converter

High Efficiency Single Phase 12VDC to 24VDC 40A DC-DC Boost Converter with Heat Dissipation for Automotive & Motor Use

12v to 24v 40a dc step up converter

Separator
  • ✔ High quality components.
  • ✔ Full power, stable voltage & current output.
  • ✔ Wide input voltage range.
  • ✔ Waterproof & anti-shock protection, ultra compact size, light weight.
  • ✔ Industry grade product, efficiency up to 96%.
  • ✔ Die-cast aluminum shell, epoxy potting.
  • ✔ Non-Isolated Module.
Separator
Series NO. WMX-D12D24
Model NO. WMX-DSD12S2440
Product Name 12v to 24v 40a dc step up converter
Input rated voltage 12Vdc
Input voltage range 10-16Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 40A
Output rated power 960W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 180*127*63mm
N. Weight 1.9kg
Cooling way Free air convection
Other White box packing
Separator
Dimensions and wiring diagram
Product detail view
Detailed specifications graphic
Installation Guide
Internal view and features
Product applications and certifications
★ Buyer Feedback
Customer reviews and high rating feedback
❓ FAQ
Q Why choose us?
A: We are a professional DC-DC converters manufacturer with more than 10 years of experience. The performance of our converters is highly stable, and our product technology is updated annually.
Q Is there any requirement for the load?
A: Yes, the DC-DC converters have a fixed voltage output, so they cannot be used for charging batteries directly. If you need to charge batteries, you may choose our DC-DC chargers.
Q Why are other products cheaper than yours?
A: Because other suppliers may use cheaper components, resulting in insufficient power output. Our products use imported components that support long-term, full-load operation.
Q What about your after-sales service?
A:
1. Guarantee time: 1 year.
2. Return policy: We can exchange goods if there is any quality problem within the warranty period.
Q What can you get from us?
A:
1. Excellent products (unique design, strict quality control).
2. Great service (OEM, ODM, after-sales services, fast delivery).
3. Professional business consultation.
Q What is the MOQ of the DC 12V to DC 24V DC-DC converter?
A: Low MOQ, 1~5 units for sample testing is available.
