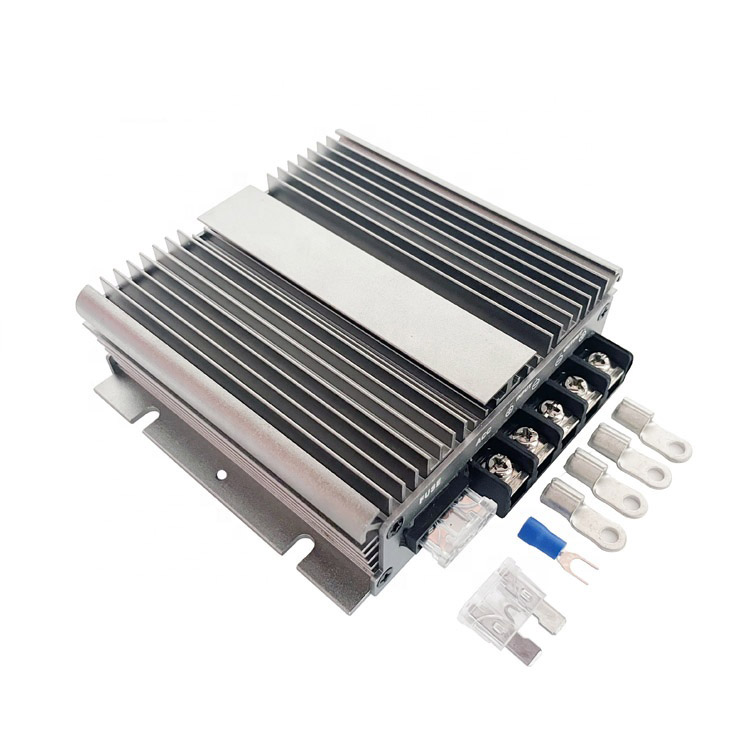

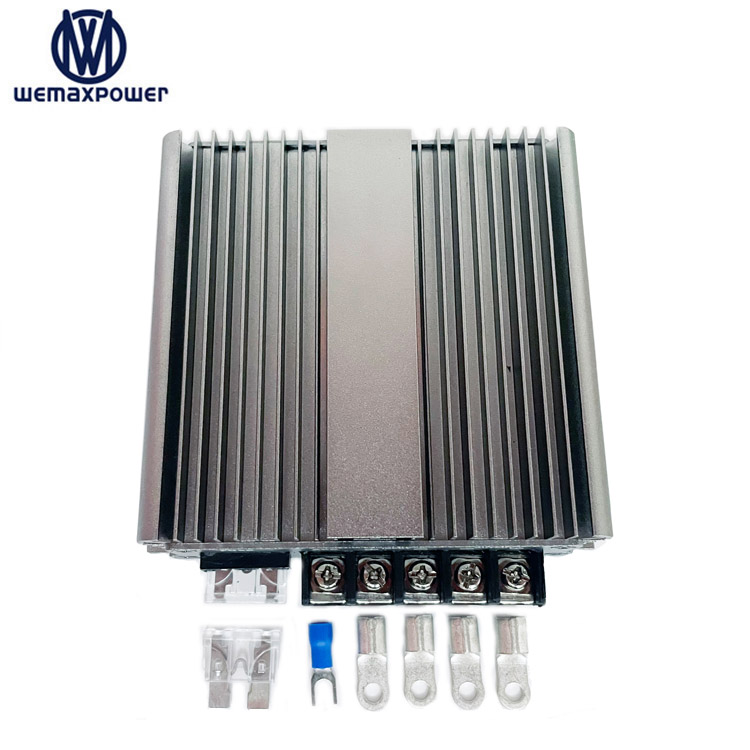

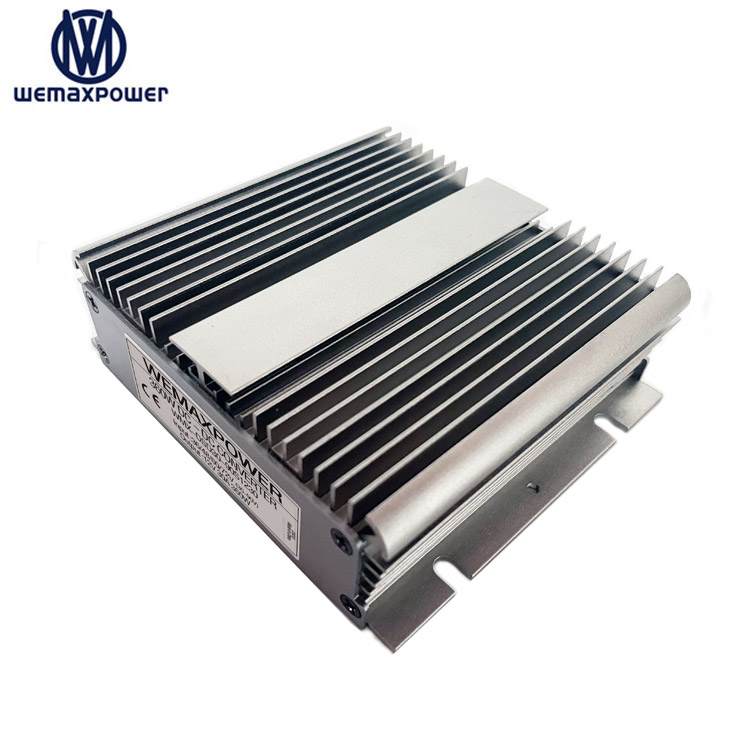

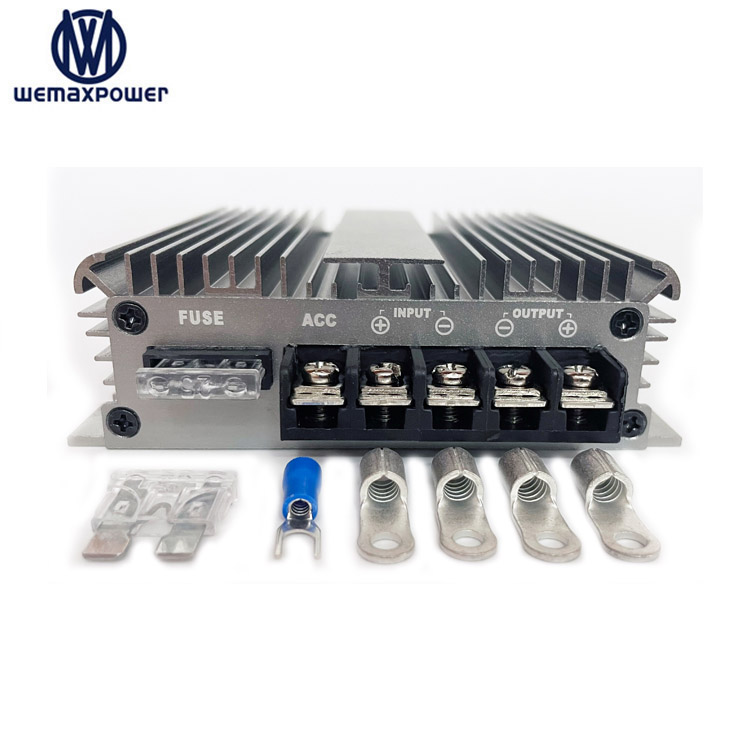

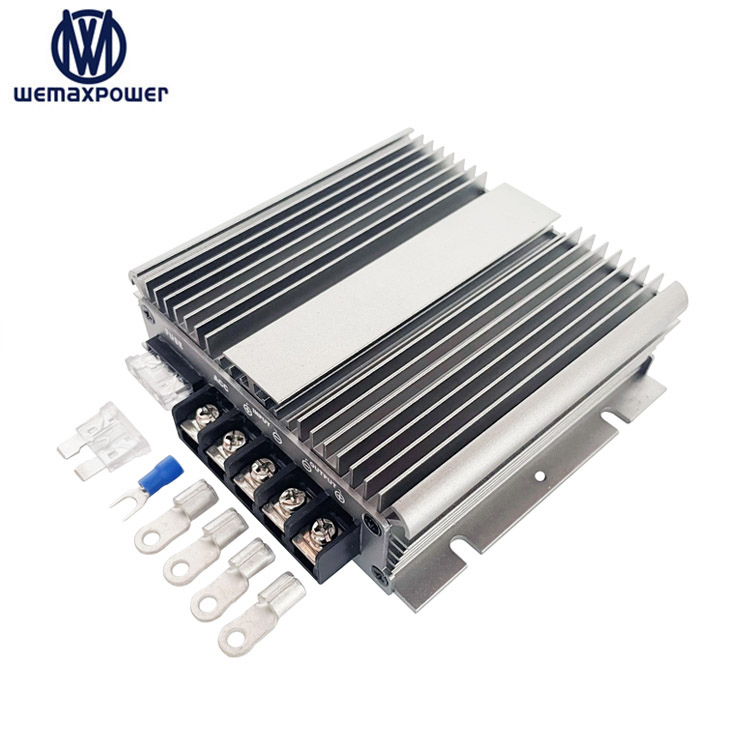

12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
1 / 5
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use

12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter with Fuse Single Phase Home & Motor Use

Send Inquiry

Product Description

10v-60v input 12vdc 24vdc 36vdc 48vdc convert dc48v 10amp buck boost module with fuse dc dc converter 12v to 48v 10a

12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Grid Divider
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Selection Guide

dc dc converter 12v to 48v 10a

12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Highlights
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Specifications Header
Series NO. WMX-D12D48
Model NO. WMX-DSD12S4810
Product Name dc dc converter 12v to 48v 10a
Input rated voltage 12V/24V/36V/48Vdc
Input voltage range 10-60Vdc
Conversion Efficiency 96%
Output voltage 48Vdc
Output current 10A
Output rated power 480W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*113*35mm
N. Weight 630g
Cooling way Free air convection
Other Standard box packing
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Details Header
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Technical Drawing
Buyer Feedback
12Vdc/24Vdc/36Vdc/48Vdc to 48Vdc 10A DC/DC Converter Buyer Feedback
FAQ
Why choose our DC-DC converters?
We are a professional DC-DC converter manufacturer with more than 10 years of industry experience. The performance of our converters is highly stable, and the product technology is updated every year to meet top industrial standards.
Is there any requirement of the load?
Yes, these DC-DC converters are designed with a fixed voltage output, so they cannot be used for charging batteries directly. If you need to charge batteries, please choose our dedicated DC-DC chargers.
Why are some other products cheaper?
Many lower-priced products use cheap components, which results in insufficient power output. Our products are made with premium imported components that support long-term full load operation.
What about your after-sales service and warranty?
We provide a 1-year guarantee. Within the warranty period, we offer product exchange service if there are any verified quality problems.
What value can you get from us?
You can expect excellent products featuring unique designs and strict quality control, reliable support (including OEM/ODM options and fast delivery), and professional business consultation.
What is the MOQ of the 12v to 48v dc dc converter?
We offer a low MOQ. Sample testing is highly supported, with 1 to 5 units available for your evaluation.
