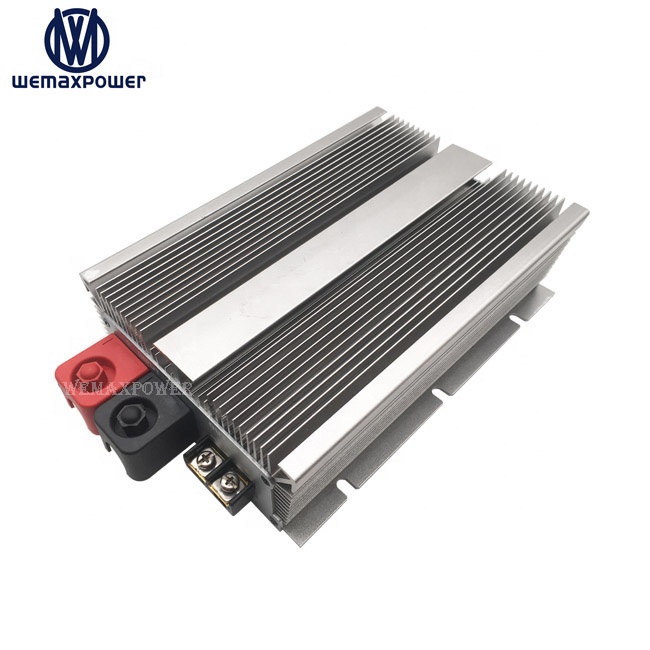

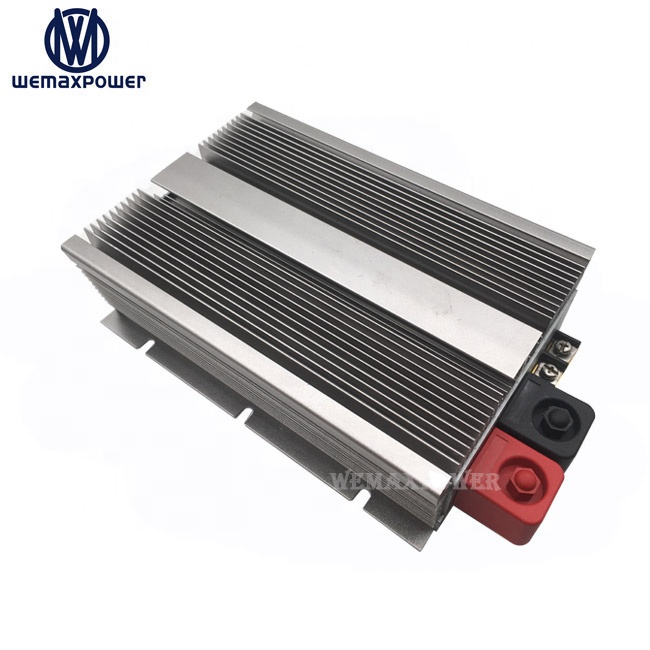

12vdc Voltage Regulator Step up 48vdc 40amp Transformer 12v to 48v 40a Dc Dc Converter for Car Golf Cart Electric Bike

12v to 48v dc converter

Features

High quality components
Full power, stable voltage & current output
Wide input voltage range
Waterproof & anti-shock protection, ultra compact size, light weight
Industry grade product, efficiency up to 96%
Die-cast aluminum shell, epoxy potting
Non-Isolated Module

Specifications

Series NO.	WMX-D12D48
Model NO.	WMX-DSD12S4840
Product Name	12v to 48v dc converter
Input rated voltage	12Vdc
Input voltage range	10-16Vdc
Conversion Efficiency	96%
Output voltage	48Vdc
Output current	40A
Output rated power	1920W
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	22015665mm
N. Weight	3kg
Cooling way	Free air convection
Other	White box packing

Product Overviews

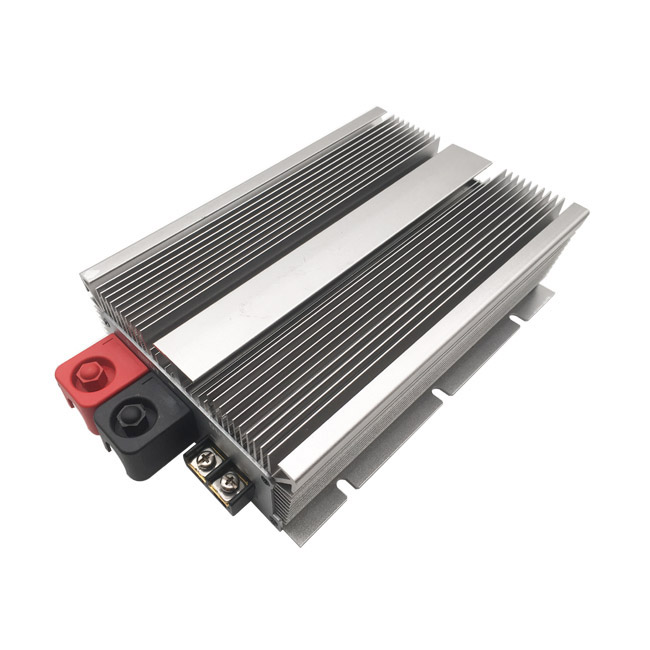

12vdc Voltage Regulator Step up 48vdc 40amp Transformer Overview

12vdc Voltage Regulator Step up 48vdc 40amp Transformer Structure

12vdc Voltage Regulator Dimension Drawing

Buyer Feedback

Frequently Asked Questions

Are there any requirements for product load?

Yes, the DC-DC converters are with fixed voltage output, so they cannot be used for charging batteries directly. If you need to charge batteries, you may choose DC-DC chargers.

Why are other similar products cheaper?

Some suppliers use lower grade components, resulting in insufficient power output. Our products are engineered with imported high-quality components to support stable, long-term full load operation.

What does your after-sales service guarantee include?

We offer a 1-year guarantee period. Our return policy allows for exchanges in the event of quality performance issues.

What payment methods and logistics options are supported?

We support payment terms including L/C, T/T, Western Union, MoneyGram, and Paypal. Shipping options include standard express services such as DHL, UPS, FedEx, TNT, EMS, and sea freight.

What value-added benefits do we receive?

You receive high-performance products with unique designs, rigorous quality control, comprehensive OEM/ODM support, and professional industrial consultations.

What is the Minimum Order Quantity (MOQ) for the 12v to 48v DC converter?

We support low MOQ requirements. A sample testing order of 5 units is available to get started.
