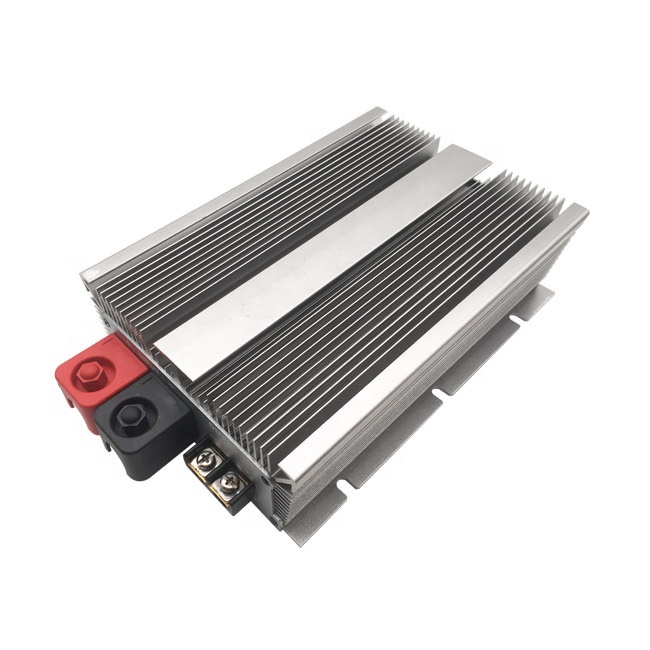

24vdc 36vdc Step up 48vdc 80amp 3840W Dc Voltage Regulator Power Supply 36v 24v to 48v 80a Dc Converter

Product Description

24vdc 36vdc step up 48vdc 80amp 3840W dc voltage regulator power supply 36v 24v to 48v 80a dc converter
24v to 48v dc step up converter
Features
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Divider Line
Series NO. WMX-D24D48
Model NO. WMX-DSD24S4880
Product Name 24v to 48v dc step up converter
Input rated voltage 24Vdc
Input voltage range 18-45Vdc
Conversion Efficiency 96%
Output voltage 48Vdc
Output current 80A
Output rated power 3840W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating Yes
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 220x156x65mm
N. Weight 3kg
Cooling way Free air convection
Other White box packing
Divider Line
DC Converter Main View

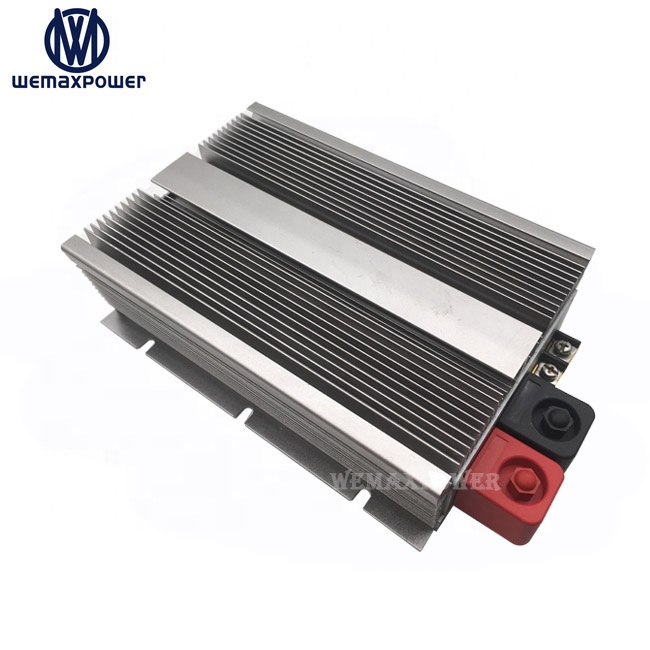

Product Angle View 1
Product Angle View 2

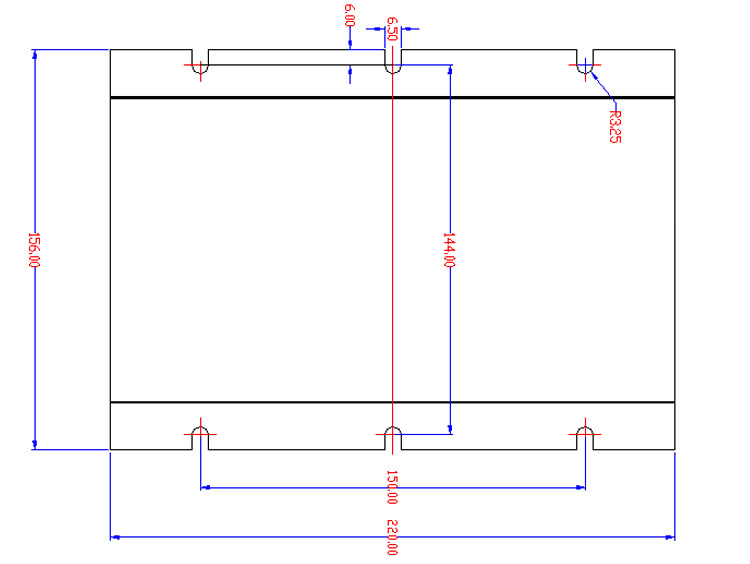

Product Dimensions View
Product Wiring Detail
Product Overview Banner
Buyer Feedback
Buyer Feedback Detail
FAQ
QWhy choose us?
We are the dc dc converters manufacturer for more than 10 years. The performance of the converters are very stable, and the product technology is updated every year.
QIs there any requirement of the load?
Yes, the dc dc converters are with fixed voltage output, so it can not be used for charging the batteries directly. If you have any requirement for charging the batteries, you may choose the dc dc chargers.
QWhy are other products cheaper than yours?
Because other suppliers use cheap components, the products are with not enough power output. Our products are used imported components, they can support long-term full load work.
QWhat about your after sales-service?
1. Guarantee time: 1 year
2. Return policy: we can exchange goods if there is any quality problem within warranty period.
QWhat can you get from us?
1. Excellent products (unique design, strict quality control)
2. Great service (OEM, ODM, after-sales services, fast delivery)
3. Professional business consultation.
QWhat is the MOQ of the 24v to 48v dc dc converter?
Low MOQ, 1 unit for sample testing is available.
