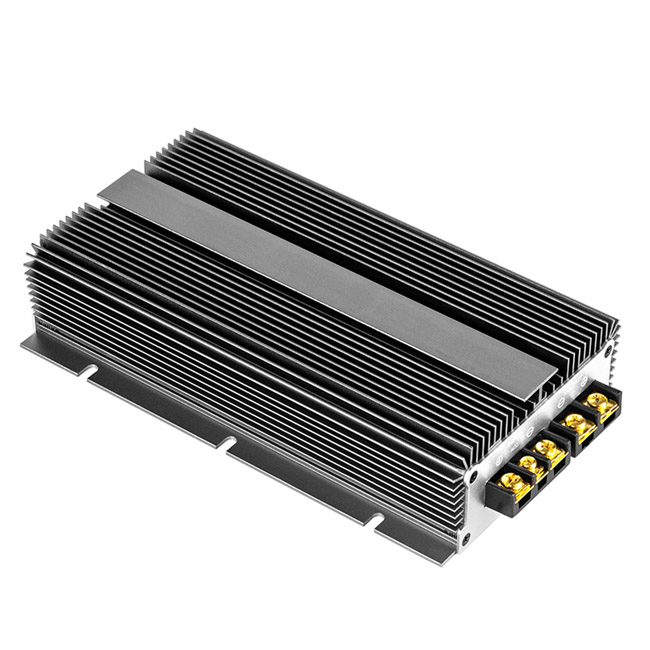

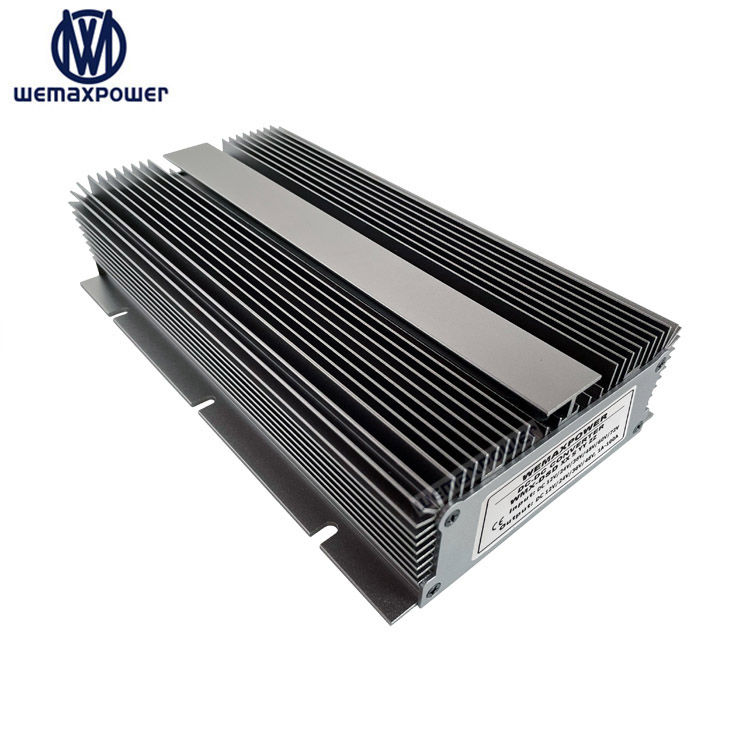

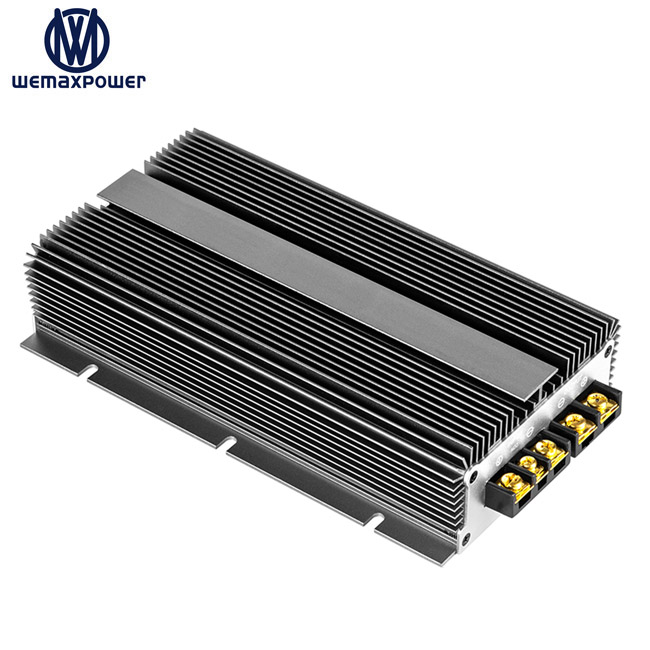

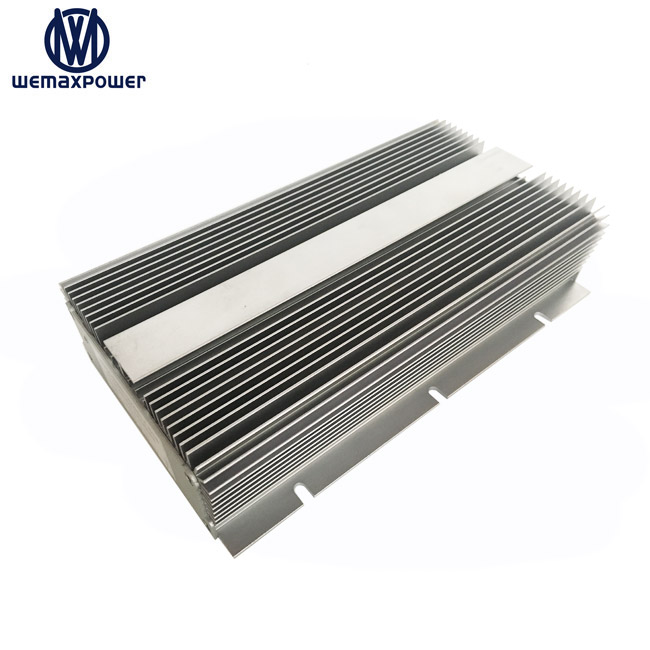

80A 48vdc to 13.8vdc Dc Voltage Regulator 100amp Buck Module 48v to 13.8v Dc Step Down Converter

Product Description

80A 48vdc to 13.8vdc Dc Voltage Regulator 100amp Buck Module

48v to 13.8v Dc Step Down Converter

Divider Line
Dc Step Down Converter Map Options

48v to 13.8v 80a dc-dc converter

Divider Line
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Divider Line
Series No. WMX-D48D13.8
Model No. WMX-DSD48S13.880
Product Name 48v to 13.8v 80a dc-dc converter
Input rated voltage 48Vdc
Input voltage range 30-60Vdc
Conversion Efficiency 96%
Output voltage 13.8Vdc
Output current 80A
Output rated power 1104W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 220*130*50mm
N. Weight 2.5kg
Cooling way Free air convection
Other Standard box packing
Divider Line

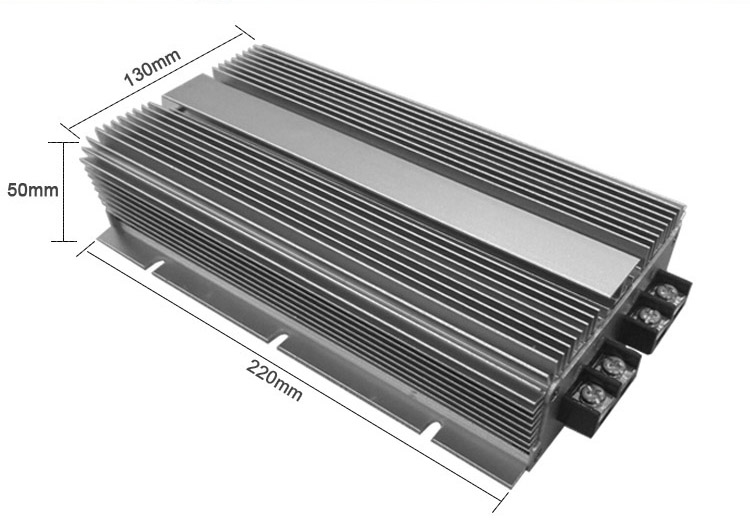

Buck Module Layout View 1 Buck Module Layout View 2
Divider Line
Detailed Dimensions and Specs
Divider Line
Connection Diagram
Divider Line
Factory Product Line Banner
Divider Line
Frequently Asked Questions
Q: What kind of products can you buy from us?

We offer a wide range of power solutions including DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.

Q: How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty against the delivery date. If the product does not function properly as described and the issue is proven to be caused by our manufacturing, we will provide replacement services for the exact item. Our support staff is always available to assist you.

Q: If we don't find what we need on your website, do you offer customization?

Yes, we provide bespoke services based on specific requirements. You can send us your detailed specifications, and we will evaluate the development feasibility. We design new models monthly that may not yet be published online, or you can send us samples for direct replication and development.

Q: Can I purchase 1 or 2 sample pieces for testing before placing a bulk order?

Yes, we gladly supply samples for testing product quality and performance. We are confident that the hand-on test will satisfy your expectations and prove to be a reliable choice for your power supply needs.

Q: What is your Minimum Order Quantity (MOQ)?

Minimum order requirements vary. Generally, our starting MOQ is 1 to 2 pieces, depending on the item. Please reach out to verify the specifics for your desired model.

Q: What is the estimated delivery timeframe?

For stocked items, dispatch takes 1-3 working days upon receipt of payment. If stock is unavailable, lead times vary by product complexity but typically range between 1 to 4 weeks.
