| Model | WMX-DSD30-90S12100 |
| Product Name | 30-90VDC TO 24VDC 100A DC-DC CONVERTER |
| Input Rated voltage | 36/48/60/72Vdc |
| Voltage range | 30-90Vdc |
| Efficiency (type) | 93% |
| Output Voltage | 12Vdc |
| Max. rated current | 100A |
| Max. rated power | 1200W |
| Voltage regulation | ±1% |
| Load regulation | 2% |
| No load loss | 70mA |
| Ripple & noise | 350mV |
| Environment Working temperature | -35 ~ +80°c |
| Working humidity | 10% ~ 90% RH |
| Storage temperature | -40 ~ +85°c |
| Waterproof | IP68 |
| Over temperature protection | YES |
| Over voltage protection | YES |
| Dimension / Net weight | SIZE : 220*156*65mm, NW: 3.65Kg |
| Other | Cooling Free air convection |
| Packaging | Standard cartons |

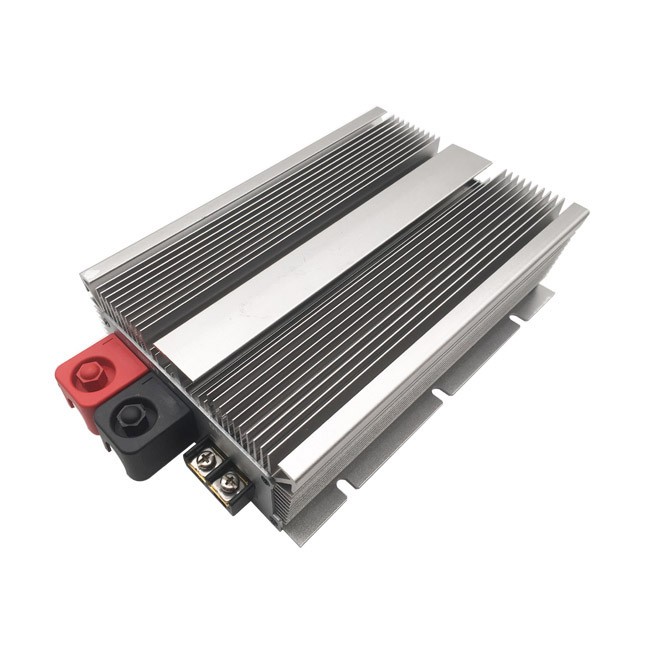

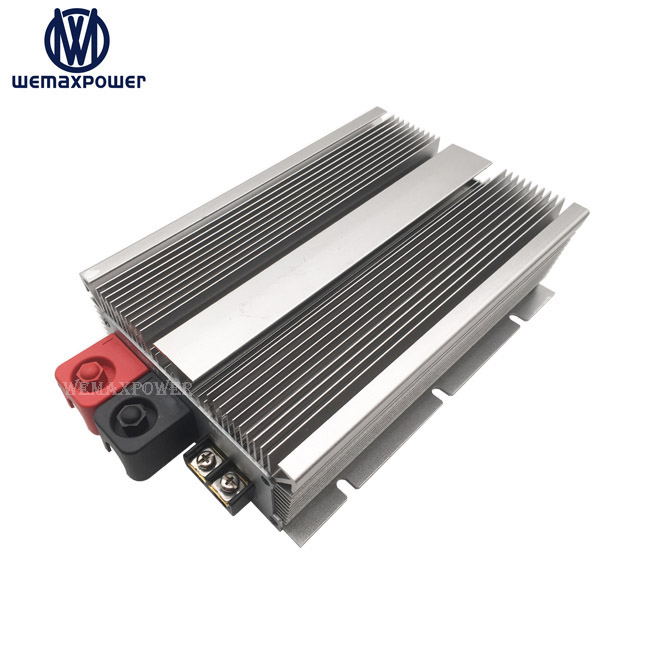

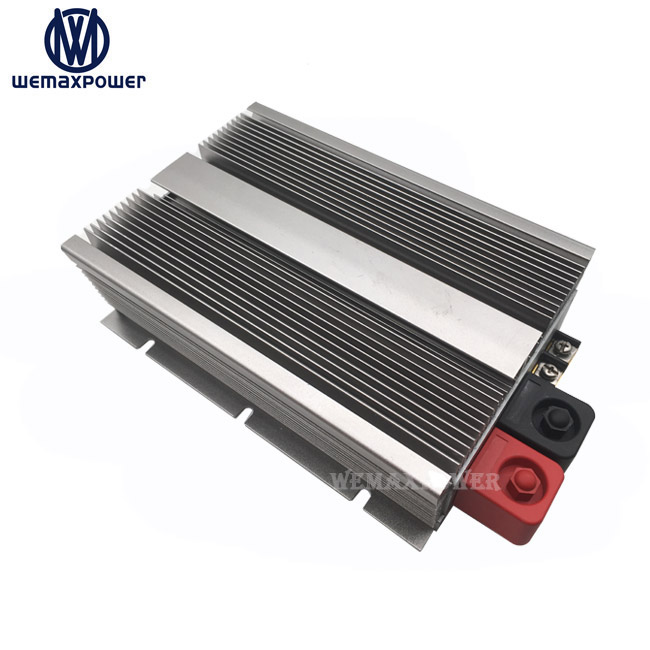

The Voltage Converter 48V 60V 72V to 12V 100A 1200W Step Down Buck Module is a high-performance DC/DC converter designed for electric vehicle applications.
The converter operates with a 3KG weight, providing efficient power conversion with an impressive output current of 100 A and an 85% efficiency rating. It supports single-phase operation and handles 48V, 60V, to 72V voltages.
Featuring a 1200W power rating, this module handles demanding loads effectively. It measures 220*156*65MM and operates in step-down mode, ensuring optimal power delivery.
Specifically engineered for electric vehicle systems, this converter is compatible with various battery voltage levels, making it highly versatile for diverse applications.
Backed by a strong warranty and a comprehensive user manual, providing reliable support to ensure full operational satisfaction.
We are an experienced team of power supply professionals established in 2018, supplying high-quality products to global markets including North America, Europe, Oceania, and Asia.
We guarantee quality by implementing a strict pre-production sample test before mass production and performing a thorough final inspection before shipment.
Our product range includes DC-DC Converters, Adjustable Power Supplies, Power Inverters, Battery Chargers, and DC-DC Chargers.
We possess strong technical strength, exquisite workmanship, and utilize advanced, innovative production processes and testing equipment to ensure robust product performance.
We accept delivery terms such as FOB, CFR, CIF, EXW, FAS, FCA, CPT, DDP, and support payments in USD, EUR, and CNY via T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, and Escrow. We offer service in English, Chinese, and Spanish.
The converter features an IP68 waterproof rating along with integrated over-temperature and over-voltage protections to ensure safe and reliable operation under harsh environmental conditions.
