| Series No. | WMX-D60D12 |
| Model | WMX-DSD60S1210 |

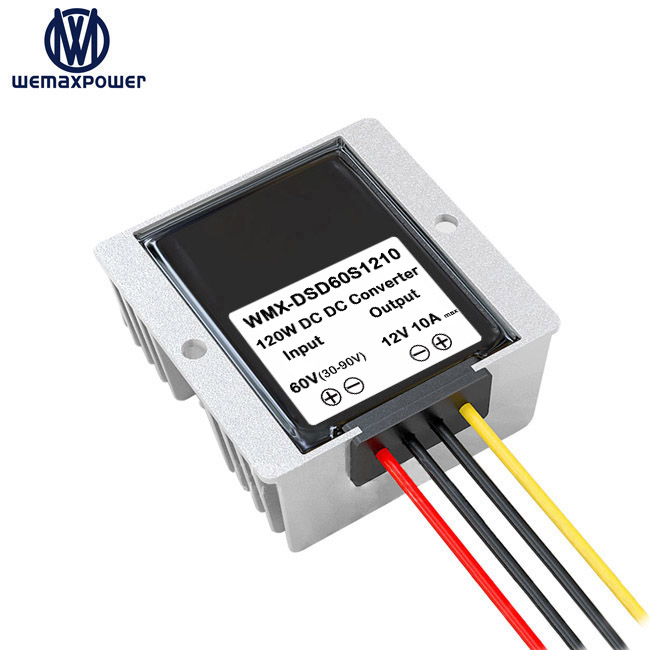

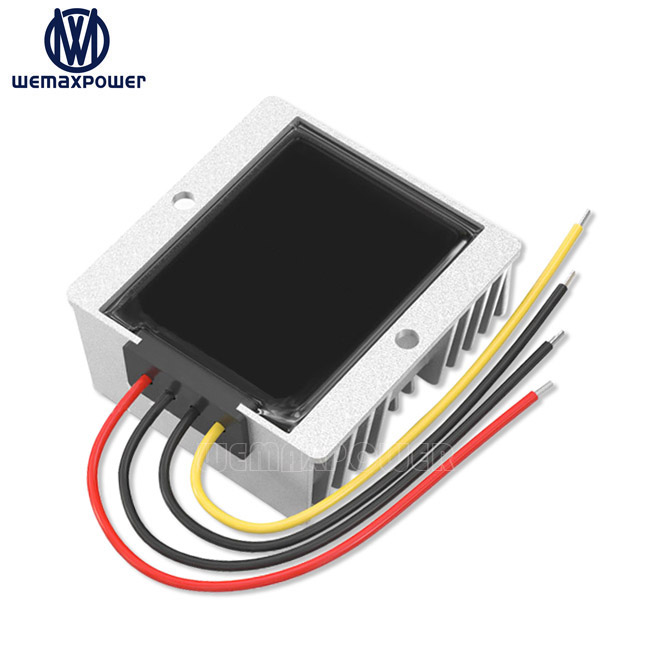

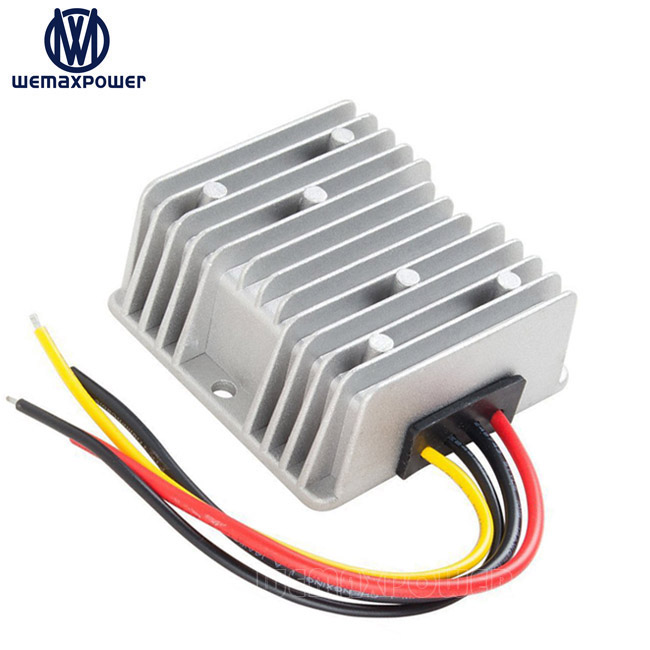

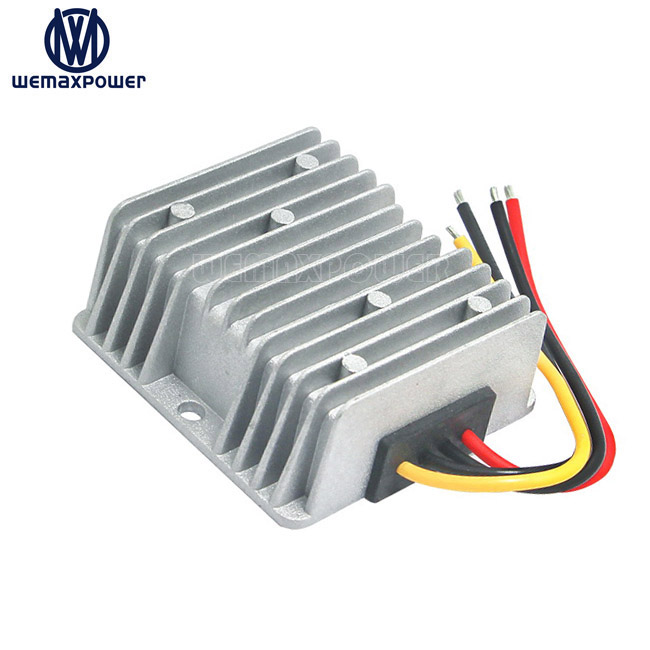

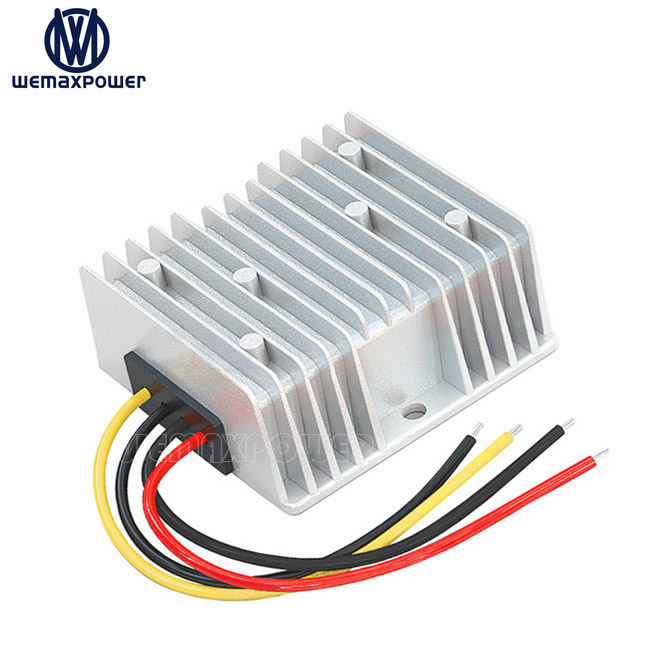

| Product Name | 60v to 12v voltage regulator |
| Input rated voltage | 60Vdc |
| Input voltage range | 30-90Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 12Vdc |
| Output current | 10Amps |
| Output rated power | 120Watts |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 74*74*32mm |
| N. Weight | 290g |
| Cooling way | Free air convection |
| Packing | White standard box |
All production processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If a product exhibits a manufacturing defect, exchange services are available.
Yes, customized services are available to meet specific voltage, current, and dimension requirements. Please provide your detailed specifications for technical evaluation.
Yes, sample orders are welcome to test the quality, performance, and compatibility of the converter with your system.
Payment can be made via T/T bank transfer, Western Union, or PayPal once the order details are finalized.
The MOQ varies by model. Generally, the minimum order quantity starts from 1 unit.
If stock is available, items are dispatched within 1-3 working days. For custom or out-of-stock items, production typically takes 1 to 4 weeks.
