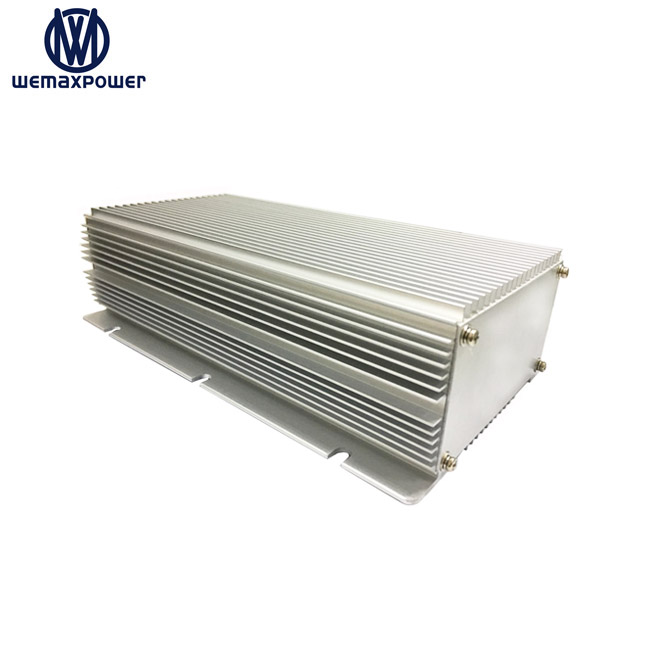

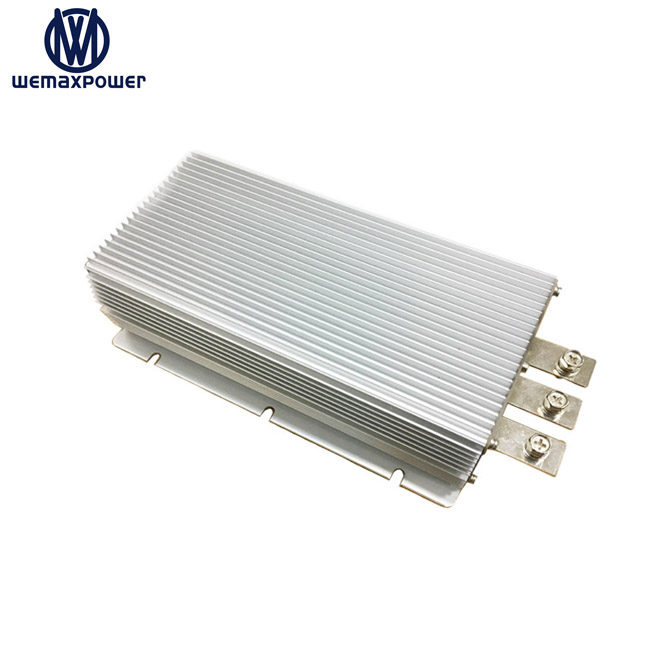

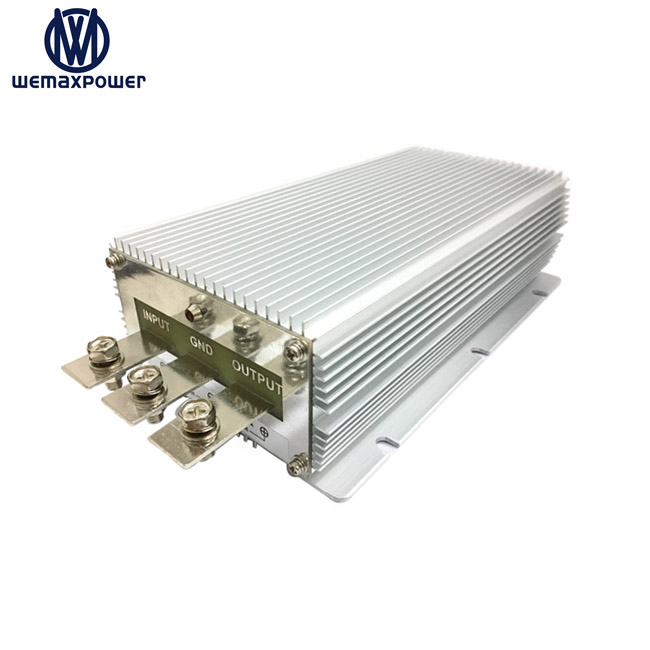

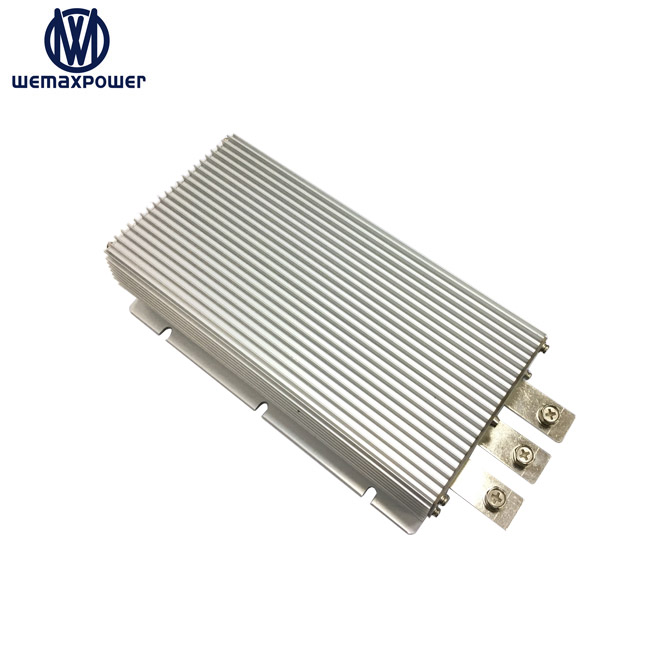

CE Approved 12vdc 24vdc Voltage boost 48vdc 20amp 960W Step up Module 20A Dc Dc Converter 12v 24v to 48v

Product Description

CE Approved 12VDC 24VDC Voltage Boost 48VDC 20Amp 960W Step Up Module 20A DC DC Converter 12V 24V to 48V

DC DC Converter 12v 24v to 48v 20A
Features Divider
High quality components.
Full power, stable voltage & current output.
Wide input voltage range.
Waterproof & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast aluminum shell, epoxy potting.
Non-Isolated Module.
Specifications Divider
Series NO. WMX-D1224D48
Model NO. WMX-DSD1224S4820
Product Name dc dc converter 12v 24v to 48v
Input rated voltage 12/24Vdc
Input voltage range 8-32Vdc
Conversion Efficiency 96%
Output voltage 48Vdc
Output current 20A
Output rated power 960W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 180mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 220*127*63mm
N. Weight 2.5kg
Cooling way Free air convection

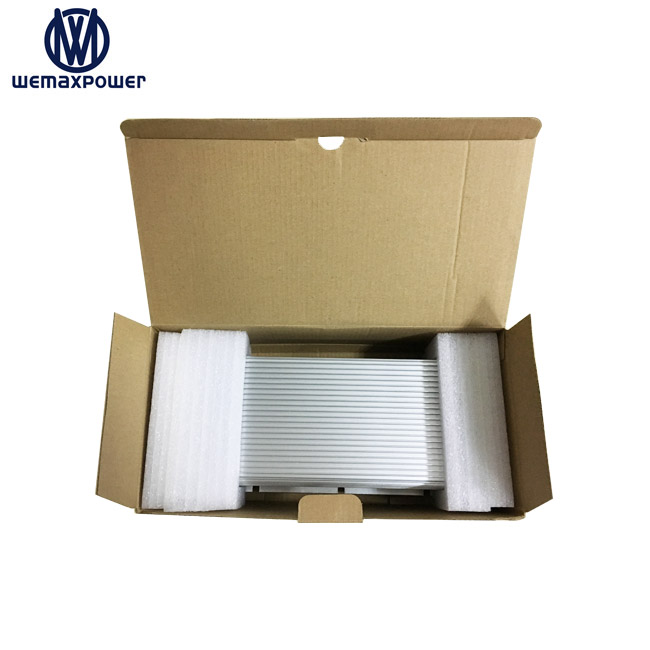

Other Standard box packing
Section Divider
Product Layout

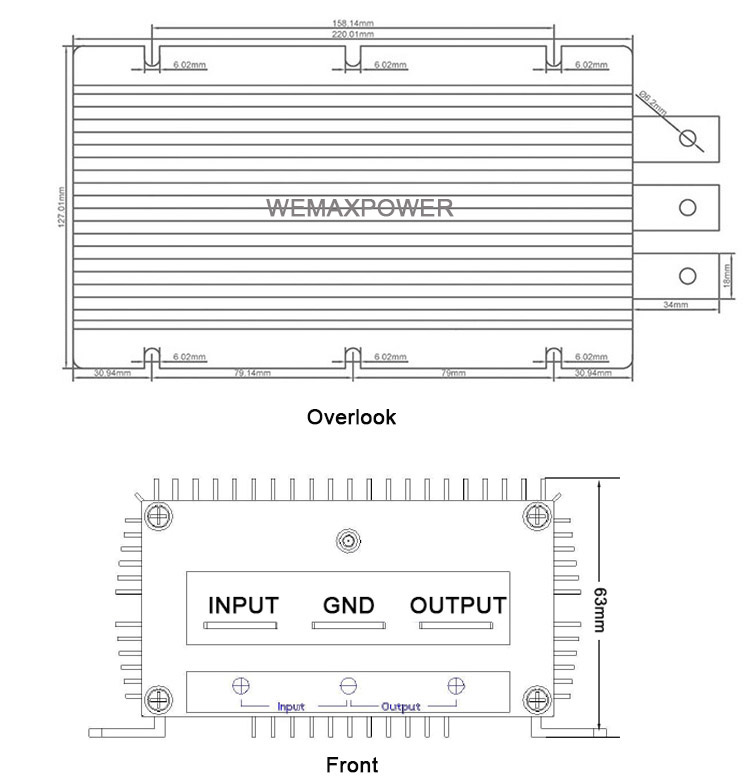

Product Diagram
Section Divider
Section Divider
Product Wiring Detail
Product Parameter Details
Product Installation Dimensions
Section Divider
FAQ Header Banner
Frequently Asked Questions
QWhat kind of products can we buy from you?

We offer a wide range of power solutions including DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.

QHow do you ensure your product and service quality?

All our manufacturing processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty against the delivery date. If the product does not function as described and the issue is proven to be caused by our factory, we will provide replacement services for the same item.

QCan you provide customized services based on specific requirements?

Yes, we can provide bespoke design and development services. You can send us your detailed technical specifications or physical samples by email, and our development team will evaluate the feasibility of building a customized model for you.

QCan I purchase samples for testing before placing a bulk order?

Yes, sample orders of 1 or 2 pieces are highly welcomed. Testing our samples directly will demonstrate the high quality and performance of our power modules before moving to larger orders.

QWhat is your Minimum Order Quantity (MOQ)?

MOQ varies by product. For standard configurations, our MOQ starts from 1 piece. Please check directly with us for specific model requirements.

QWhat are your standard delivery dates?

If the items are in stock, shipment takes 1-3 working days after payment clearance. If the items are not in stock, the production cycle typically ranges between 1 to 4 weeks depending on the product type.
