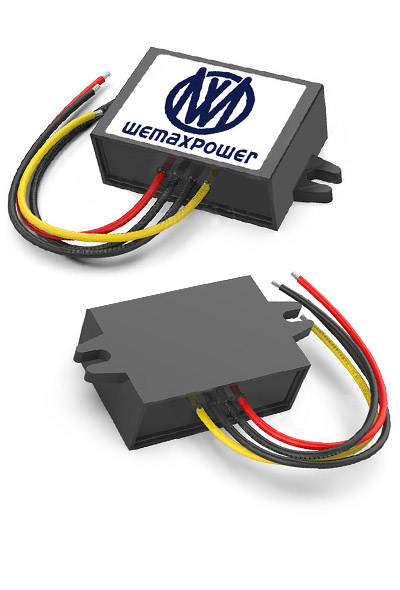

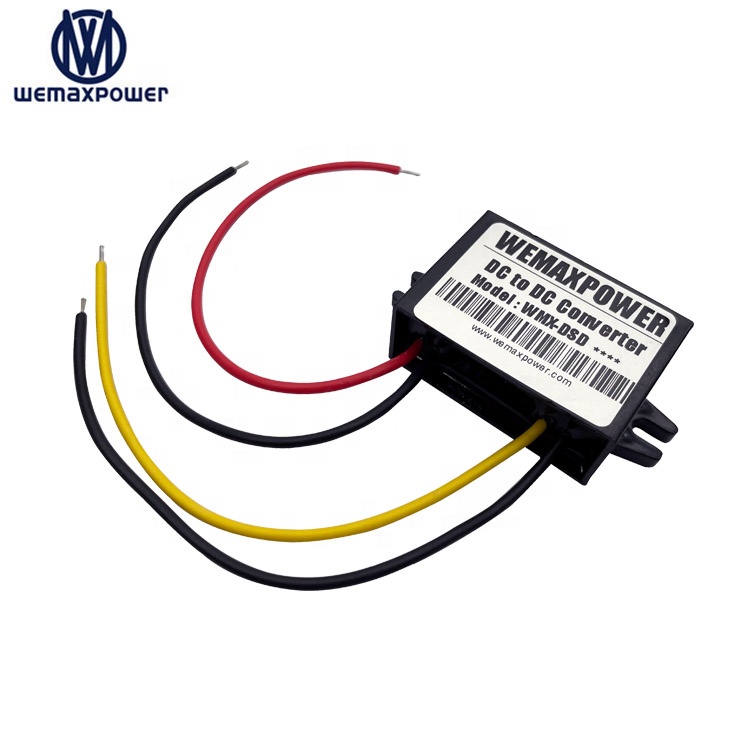

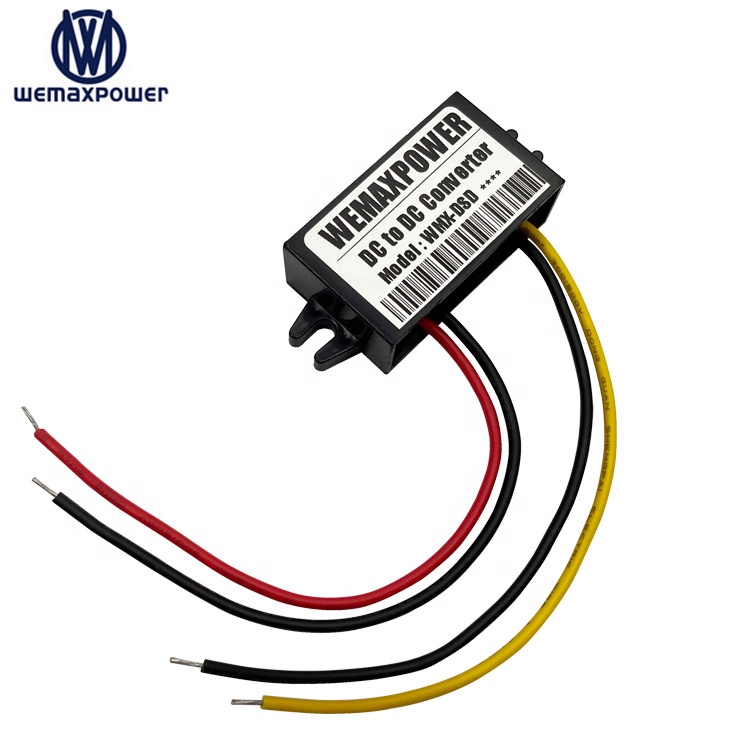

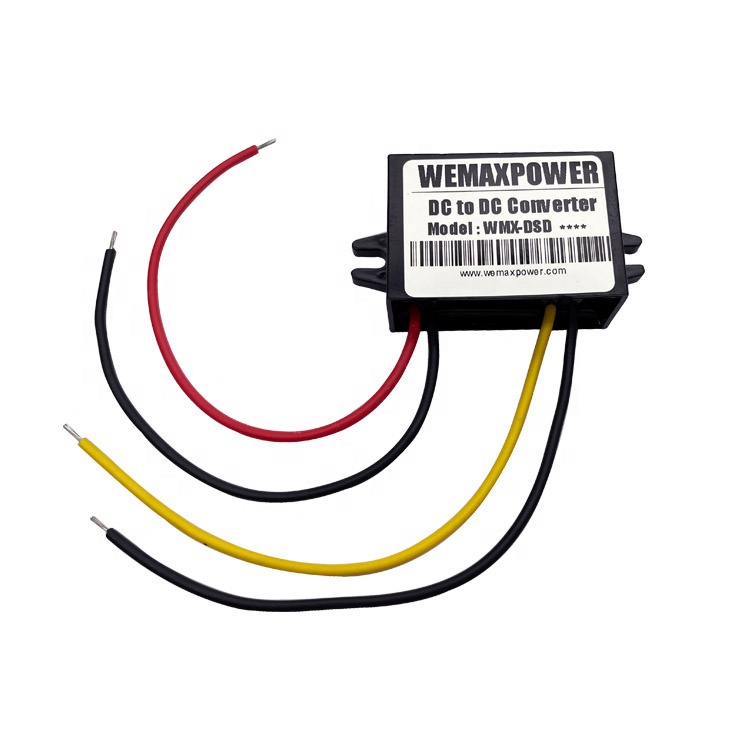

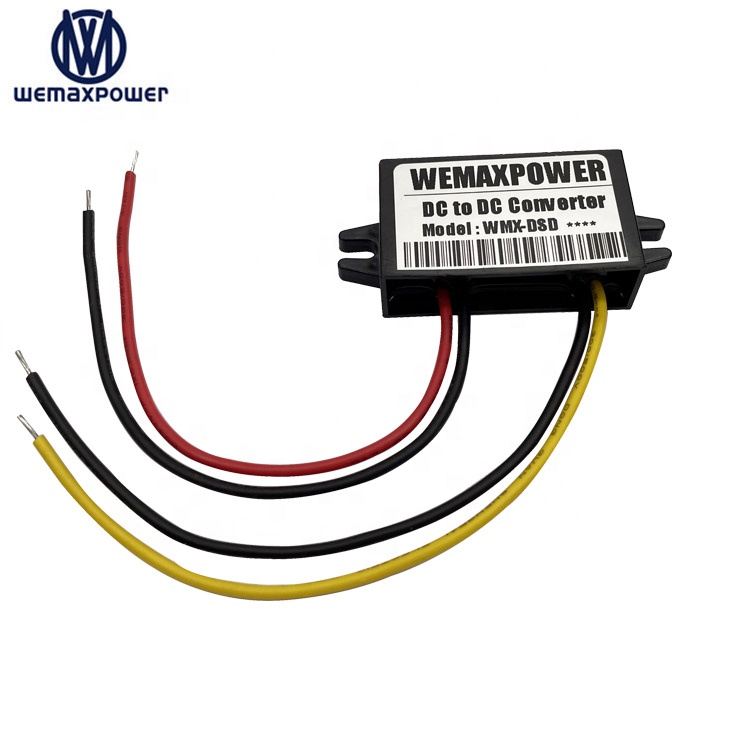

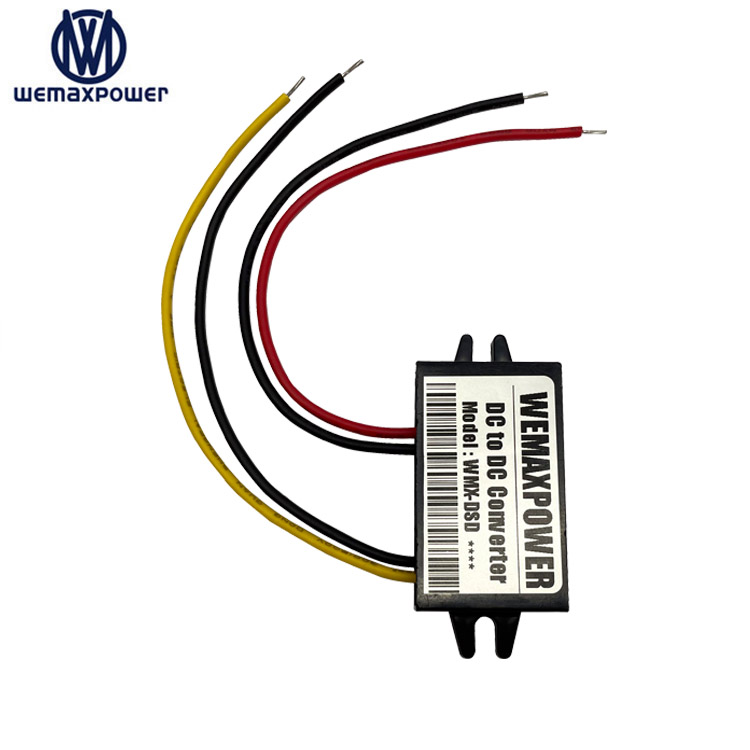

Product Name | 12V 24V to 48V DC Converter |
| Series NO. | WMX-D1224D48 | |
| Model NO. | WMX-DSD1224S481.5 | |
| Input Voltage | 12/24Vdc (10~30Vdc) | |
| Output Voltage | 48Vdc | |
| Output Current | 1.5A | |
| Output Power | 72W | |
| Input Wire Length | 13~15cm | |
| Output Wire Length | 13~15cm | |
| Working Temp. | -40°c ~ +80°c | |
| Waterproof Rate | IP67 | |
| Converter Type | Non-isolated module | |
| Shell Material | Plastic | |
| Dimension & N.W. | 46*32*18mm, 45g | |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
1) Ensure you confirm the power requirements of your load equipment based on its product label and parameters before selection.
2) For continuous long-term operations, select a converter with higher headroom. The ideal actual load power should be 30%~80% of the converter's rated power.
3) Full-load or overload operations significantly impact the stability, working temperature, and lifespan of the module, and may lead to irreversible damage.
