Product Description

Radio video car dc voltage regulator step down buck module 20A dc 48v to 13.8v converter

Radio Video Car Dc Voltage Regulator Step Down Buck Module 20A Dc 48v to 13.8v Converter
48v to 13.8v dc converter
Divider Line
✓ High quality components.
✓ Full power, stable voltage & current output.
✓ Wide input voltage range 30-60vdc.
✓ Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
✓ Industry grade product, efficiency up to 96%.

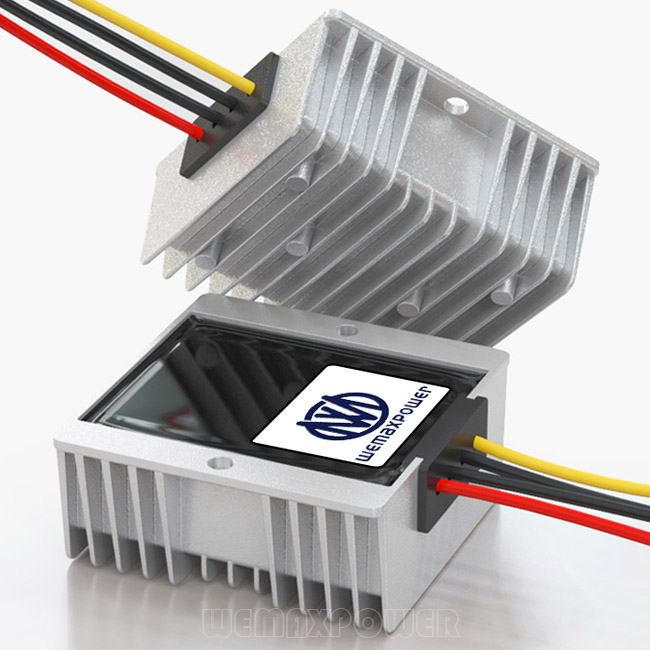

✓ Die-cast aluminum shell, epoxy potting.
✓ Non-Isolated Module.
Divider Line
Series No. WMX-D48D13.8
Model WMX-DSD48S13.820
Product Name dc 48v to 13.8v converter
Input rated voltage 48Vdc
Input voltage range 30-60Vdc
Conversion Efficiency 96%
Output voltage 13.8Vdc
Output current 20Amps
Output rated power 276Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Cooling way Free air convection
Packing White standard box
Divider Line Radio Video Car Dc Voltage Regulator Step Down Buck Module 20A Dc 48v to 13.8v Converter
Product Description
Product Details 1 Product Details 2 Product Details 3 Product Details 4 Product Details 5 Product Details 6 Product Details 7 Product Details 8
FAQ
Q: Why choose our DC-DC converters?
A: We are a dedicated manufacturer with over 10 years of experience. The performance of our converters is highly stable, and the product technology is continuously updated each year to meet rigorous industry demands.
Q: Is there any requirement of the load?
A: Yes, these DC-DC converters are designed with a fixed voltage output, so they cannot be used for charging batteries directly. If you require battery charging functionality, please choose our dedicated DC-DC chargers.
Q: Why are some other products cheaper?
A: Many low-cost suppliers use inexpensive components that fail to deliver the rated power output. Our products are engineered with imported high-grade components that support stable, long-term operation under full load conditions.
Q: What is the warranty and after-sales service policy?
A: We provide a 1-year warranty period. In the event of any quality issues within this period, we support a comprehensive product exchange policy.
Q: What are the payment terms and shipping options?
A: We support multiple payment terms including L/C, T/T, Western Union, MoneyGram, and PayPal. Delivery can be arranged via DHL, UPS, FedEx, TNT, EMS, or by sea.
Q: What is the MOQ of the dc 48v to 13.8v converter?
A: We maintain a low MOQ policy. Sample testing is available starting from 1 to 5 units.
