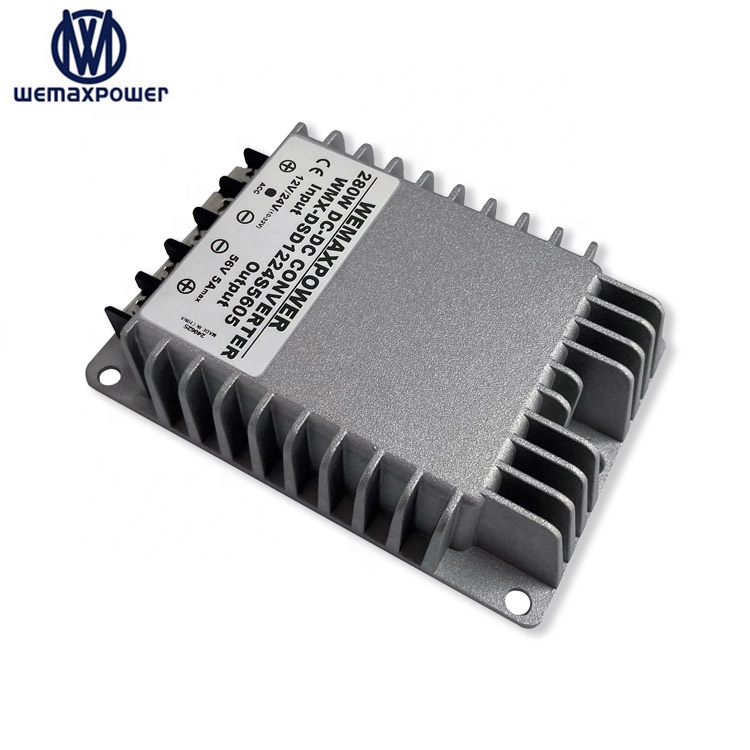

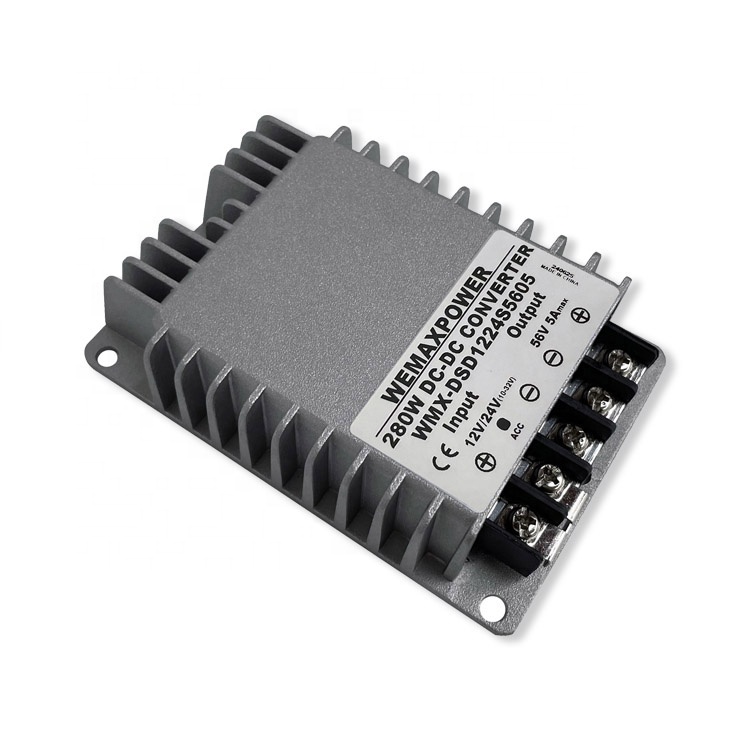

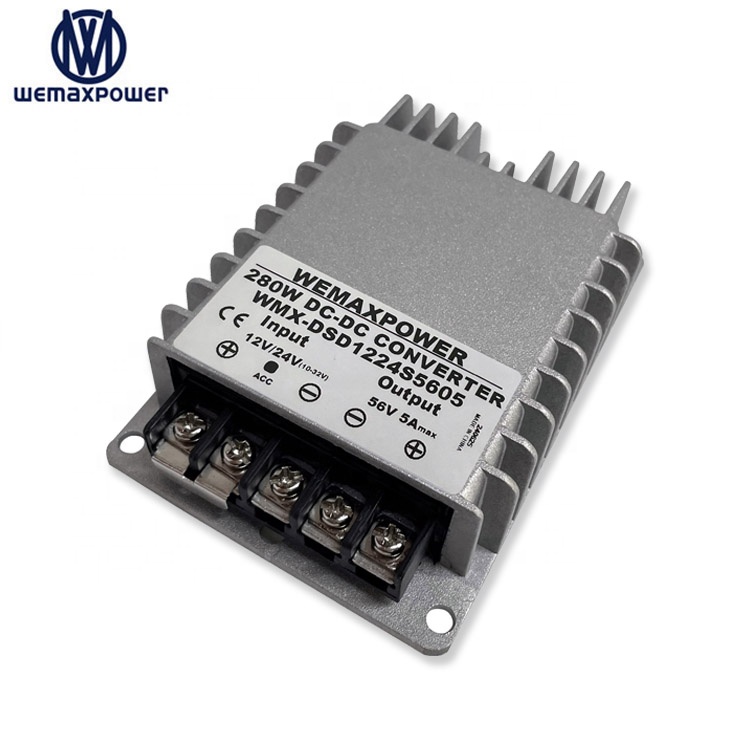

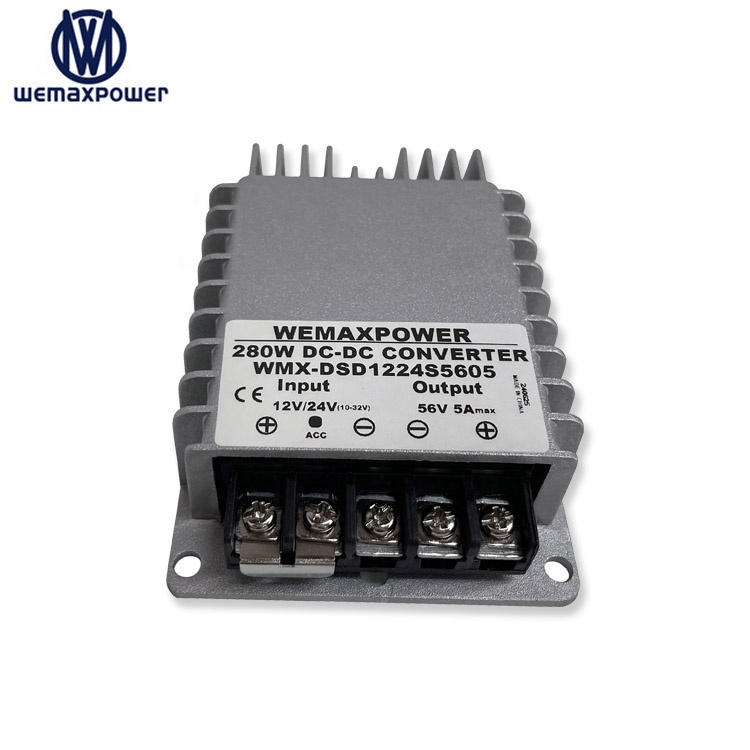

High Efficiency 12v to 56v 5a Dc to Dc Voltage Regulator 5amp 12vdc Step up 56vdc boost Converter

Product Description

High efficiency 12v to 56v 5a dc to dc voltage regulator 5amp 12vdc step up 56vdc boost converter

Divider Line
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Divider Line
Series No. WMX-D12D56
Model No. WMX-DSD12S5605
Product Name 12v to 56v dc dc converter
Input rated voltage 12Vdc
Input voltage range 10-16Vdc
Conversion Efficiency 96%
Output voltage 56Vdc
Output current 5A
Output rated power 280W
ACC Port YES
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 118*80*28mm
N. Weight 460g
Cooling way Free air convection
Divider Line

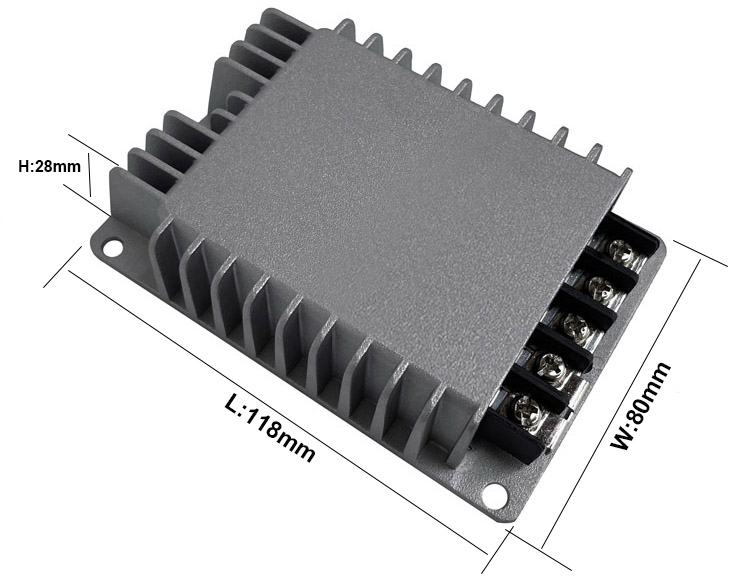

Product View 1 Product View 2
Divider Line

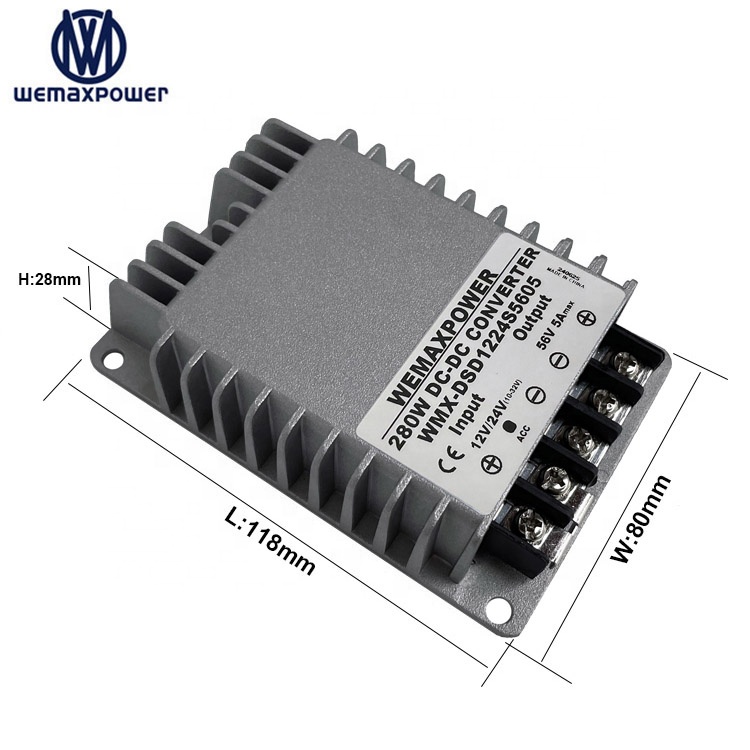

Detailed Dimensions and Specifications
Divider Line
Wiring Connection Guide
FAQ Divider Line

Frequently Asked Questions

How do we work?

Since 2009, our factory has provided various power solutions for different projects worldwide. This includes DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.

How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our manufacturing processes, we will provide exchange services for the same item. Our support team is always available to assist with your needs.

Can we request customized services based on specific requirements?

Yes, we provide bespoke services for customers with specific requirements. You can send detailed requirements via message or email, and we will check feasibility. We develop new models regularly, some of which may not yet be updated on our website. Alternatively, you can send us samples for custom development.

Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?

Yes, we are pleased to offer samples to test quality and performance. We are confident that you will be satisfied with the results. Paired with our reliable service and competitive pricing, we are a solid partner for your power supply needs.

How can I order and make payment?

Once your requirements are clear and the ideal product is determined, we will send a pro-forma invoice. Payment can be settled via bank transfer (TT), Western Union, or PayPal as preferred.
