High Efficiency 12v 24v to 56v 5a Dc to Dc Voltage Regulator 5amp 12vdc 24vdc Step up 56vdc boost Converter

1 / 5

High Efficiency 12v 24v to 56v 5a Dc to Dc Voltage Regulator 5amp 12vdc 24vdc Step up 56vdc boost Converter

Send Inquiry

Product Description

High efficiency 12v 24v to 56v 5a dc to dc voltage regulator 5amp 12vdc 24vdc step up 56vdc boost converter

12v 24v to 56v DC DC Converter

High quality components.
Full power, stable voltage & current output.
Wide input voltage range.
Waterproof & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast aluminum shell, epoxy potting.
Non-Isolated Module.

Series No.	WMX-D1224D56
Model No.	WMX-DSD1224S5605
Product Name	12/24v to 56v 5a dc-dc converter
Input rated voltage	12/24Vdc
Input voltage range	10-32Vdc
Conversion Efficiency	96%
Output voltage	56Vdc
Output current	5A
Output rated power	280W
ACC Port	YES
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c~ +80°c
Waterproof	YES
Protections	Over-load, Over-current, Over-temperature, Over-voltage

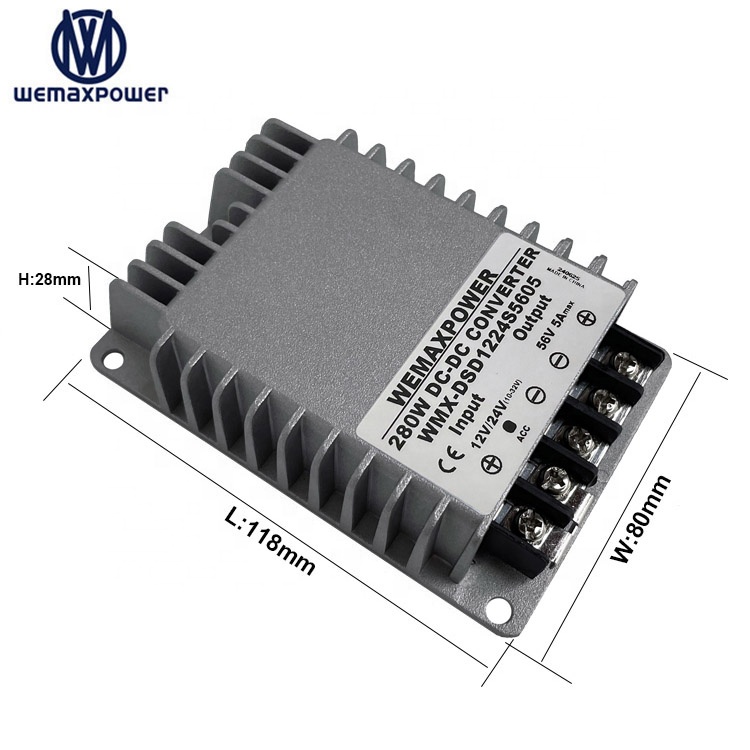

Machine size	1188028mm
N. Weight	460g
Cooling way	Free air convection

FAQ

Q1. What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q2. How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything needed.

Q3. If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?

Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.

Q4. Can I buy 1 or 2 pieces of samples for testing before place bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.

Q5. What is your Minimum Order Quantity?

Different products have different MOQ, generally speaking, our MOQ is 1~2pcs, please don't hesitate to check with us for specific items.

Q6. What about delivery date?

If we have stock of the item you need, we can send goods to you within 1-3 working days after receiving deposit or 100% payment into our bank account. If we don't have free stock, the delivery date can be different for different products. Generally speaking, it will take 1 to 4 weeks.
