High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
1 / 5
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof

High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof

Send Inquiry

Product Description

High power car voltage regulator 100amp 24vdc step down 13.8vdc buck module 24v to 13.8v 100a dc dc converter

High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof

24v to 13.8v 100a dc dc converter

High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
Series NO. WMX-D24D13.8
Model NO. WMX-DSD24S13.8100
Product Name 24v to 13.8v 100a dc dc converter
Input rated voltage 24Vdc
Input voltage range 18-32Vdc
Conversion Efficiency 96%
Output voltage 13.8Vdc
Output current 100A
Output rated power 1380W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage

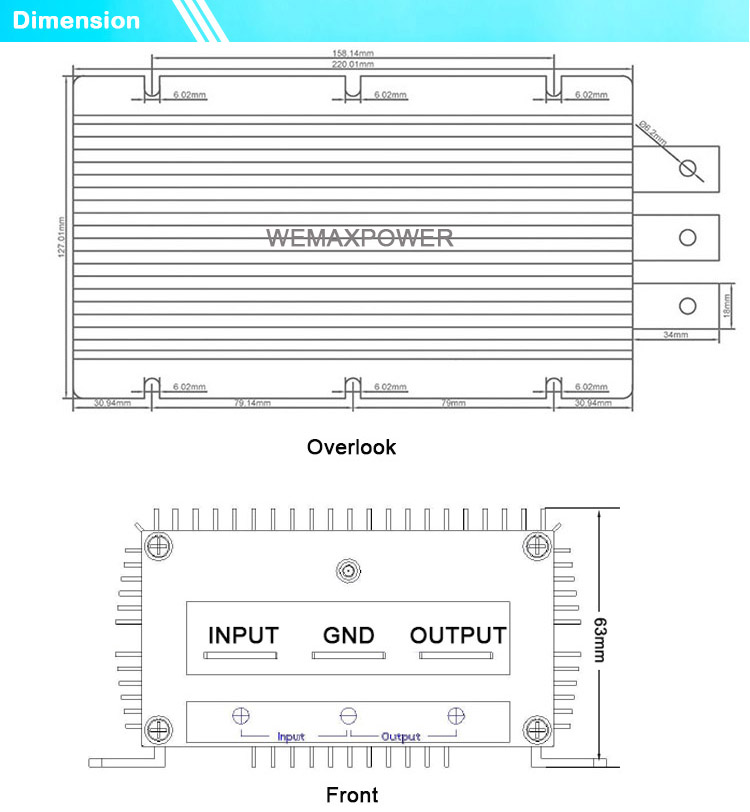

Machine size 220*127*63mm
N. Weight 2.35kg
Cooling way Free air convection
Other Standard box packing
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof

Buyer Feedback

High Power Car Voltage Regulator 100A 24Vdc to 13.8Vdc Buck Module DC/DC Converter Single Output Waterproof
Frequently Asked Questions
Why choose our DC-DC converters?
We are a dedicated DC-DC converter manufacturer with more than 10 years of experience. Our products feature highly stable performance, and our converter technology is continuously updated to ensure peak efficiency.
Is there any specific requirement for the load?
Yes, the DC-DC converters provide a fixed voltage output, which means they cannot be used to charge batteries directly. If you require battery charging, please select our dedicated DC-DC chargers.
Why do some other converters on the market cost less?
Lower-priced alternatives often use cheap components that fail to deliver the rated power output. Our products are engineered with imported, high-grade components designed to support continuous, long-term operation at full load.
What is the warranty and after-sales policy?
We provide a 1-year warranty on all products. If any quality issues arise within the warranty period, we offer product exchange services.
What services and customization do you offer?
We provide high-quality products with unique designs, strict quality control, and comprehensive services, including OEM/ODM options, professional technical consultation, and fast delivery.
What is the Minimum Order Quantity (MOQ) for the 24v to 13.8v converter?
We support a low MOQ. Sample testing is available starting from 1 to 5 units.
