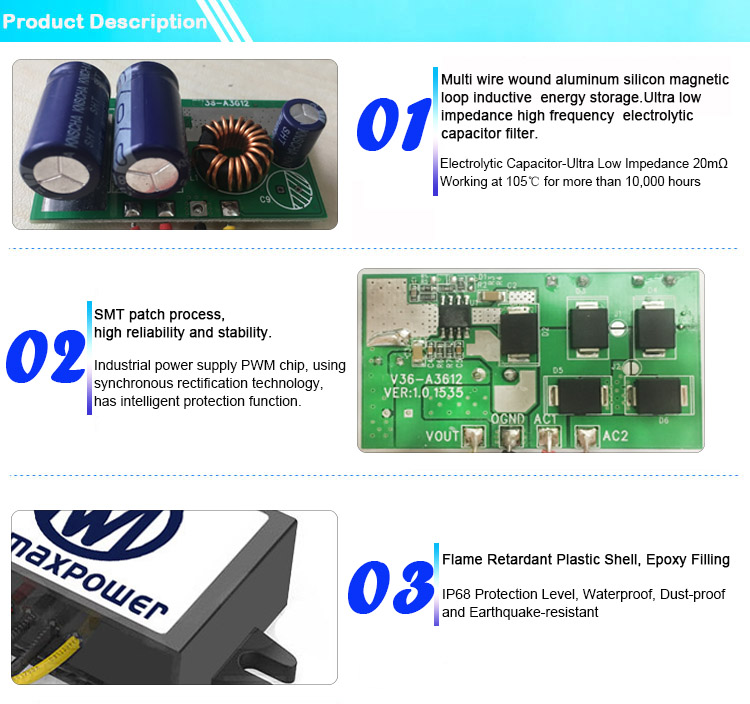

High quality components.
Full power, stable voltage & current output.
Wide input voltage range.
Waterproof & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast plastic shell, epoxy potting.
Designed for Trucks/Bus/Motor/Security/LED voltage regulators.
Non-Isolated Module.
| Series NO. | WMX-D48D24 |
|---|---|
| Model NO. | WMX-DSD48S2402 |

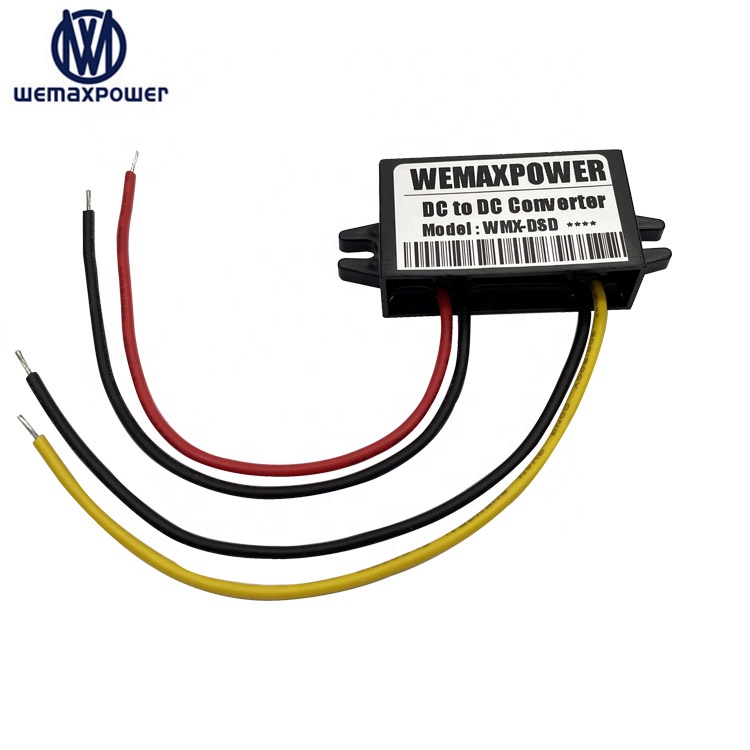

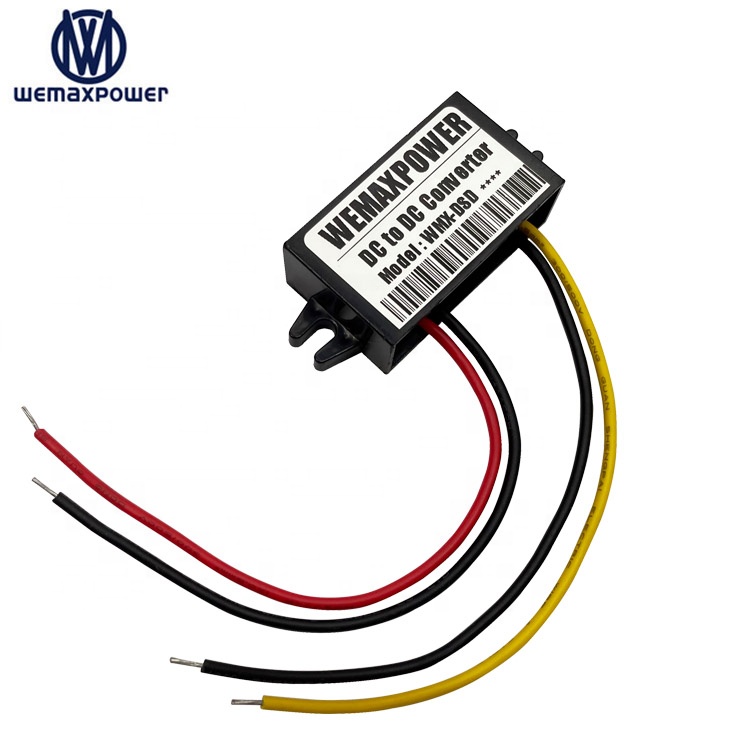

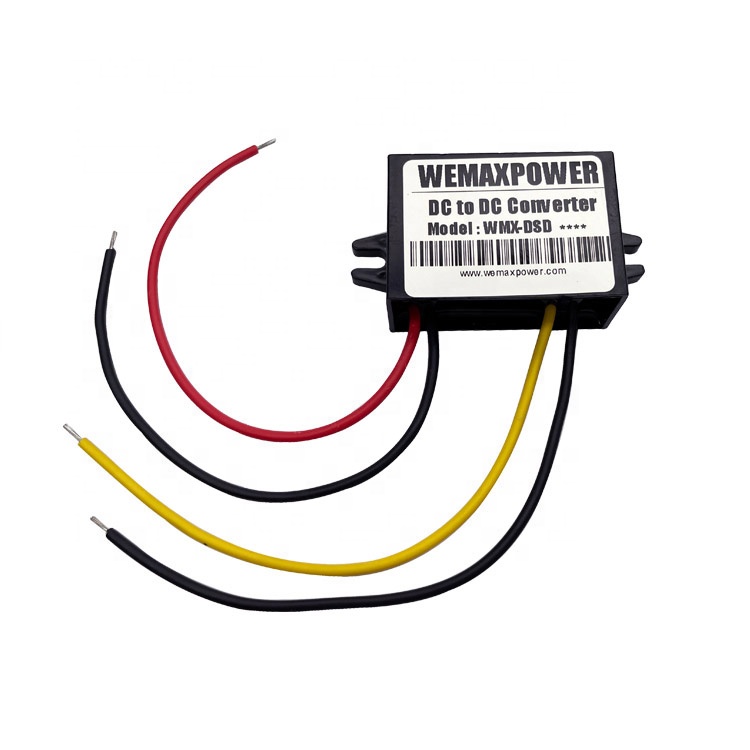

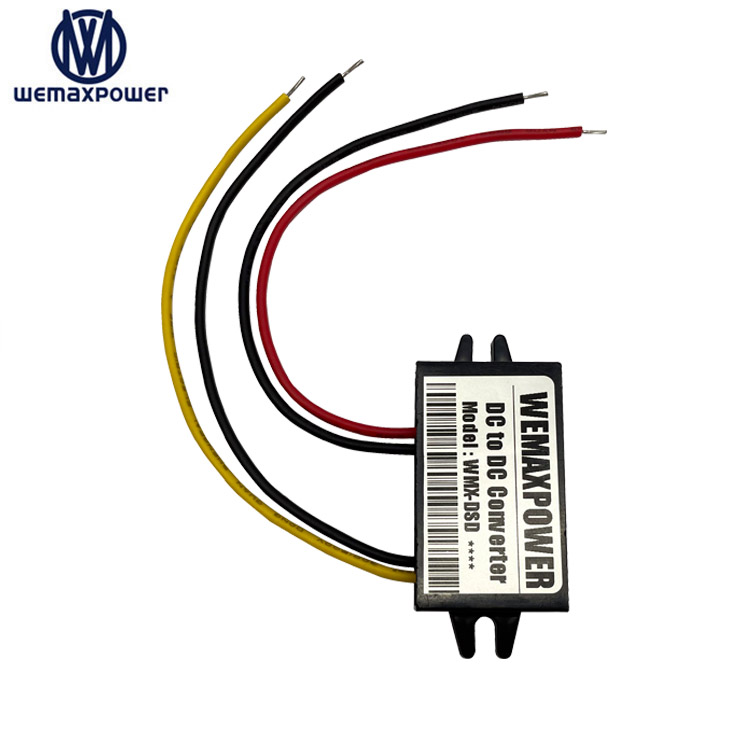

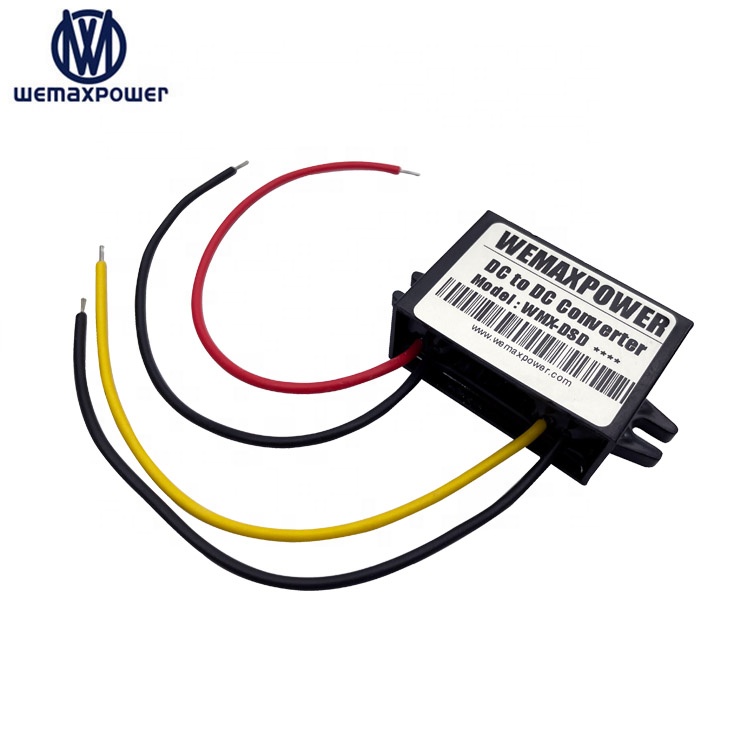

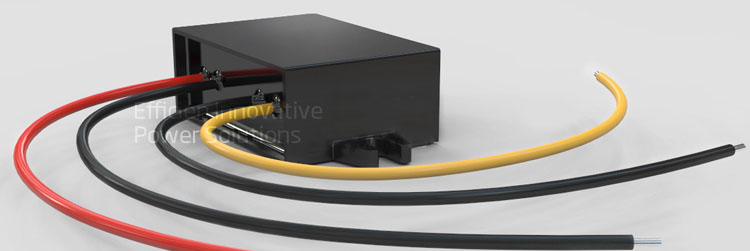

| Product Name | 48VDC Buck Module 24VDC 2A Module 48 to 24V DC Step Down Converter |
| Input rated voltage | 48Vdc |
| Input voltage range | 30-58Vdc |
| Conversion Efficiency | 93% |
| Output voltage | 24Vdc |
| Output current | 2A |
| Output rated power | 48W |
| Working Temperature | -20°c ~ +80°c |
| Waterproof rating | IP67 |

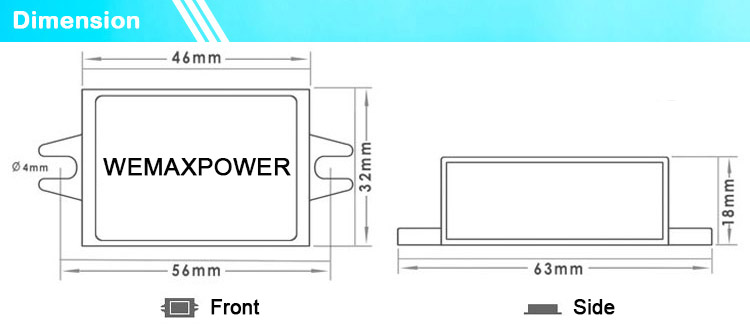

| Machine size | 46*32*18mm |
| N. Weight | 50g |
| Cooling way | Free air convection |
| Other | Static bag packaging |
If you are not familiar with how to choose the appropriate converter module, you should know the power of load equipment (based on equipment label and parameter labeling) before purchasing. If you need to work for a long time, you should choose the power module with higher power. The actual power of load equipment is 30%~75% of the rated power of the module. Full load and overload have a great impact on the stability, temperature and service life of the module. At any time, it may cause irreparable damage.
We offer a wide variety of power solutions, including DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
All our production processes strictly adhere to ISO-9001 quality management procedures. We offer a 12-month quality warranty from the delivery date. If a product does not function as specified and the issue is verified as a manufacturing defect, exchange services will be provided.
Yes, we provide custom and bespoke solutions for customers with specific requirements. You can send us your detailed project specifications, and we will evaluate the design feasibility. We also develop new models regularly based on client needs.
Yes, sample orders of 1 or 2 pieces are welcomed so that you can verify the performance and build quality of our modules in your application setup before proceeding with a volume order.
Once your technical requirements are confirmed and the ideal converter model is chosen, we will send a pro-forma invoice. Payments can be processed securely through wire bank transfer (T/T), Western Union, or PayPal.
Minimum Order Quantity varies depending on the specific product model. For standard converters and regulators, the MOQ starts at 1 piece to facilitate easy testing and integration.
