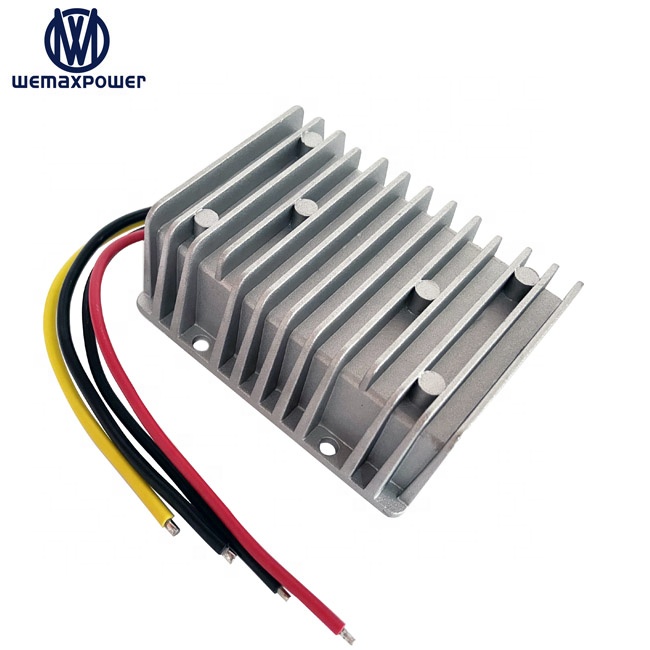

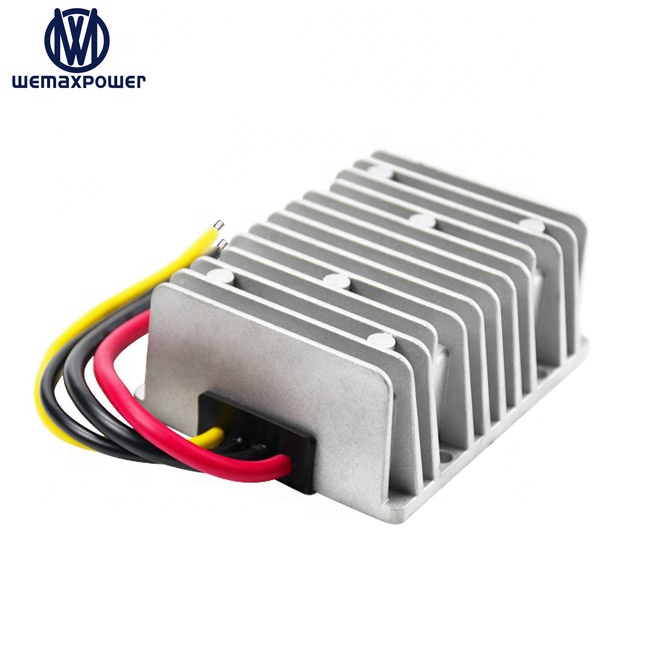

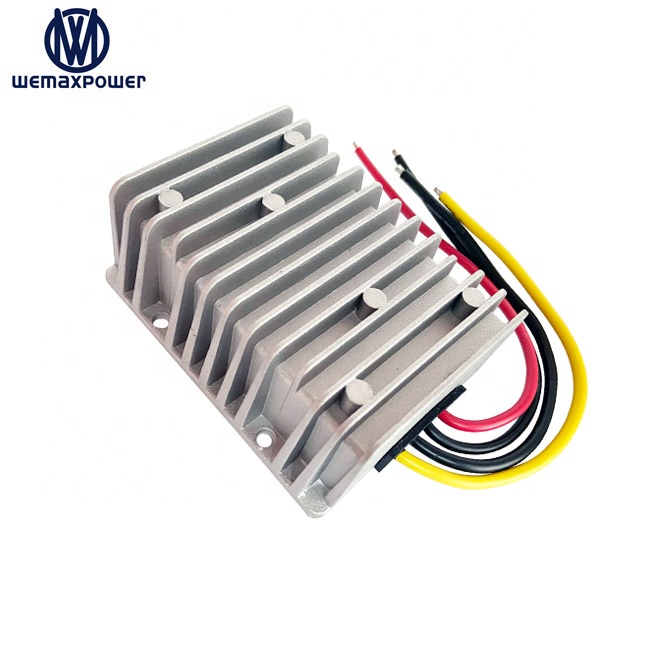

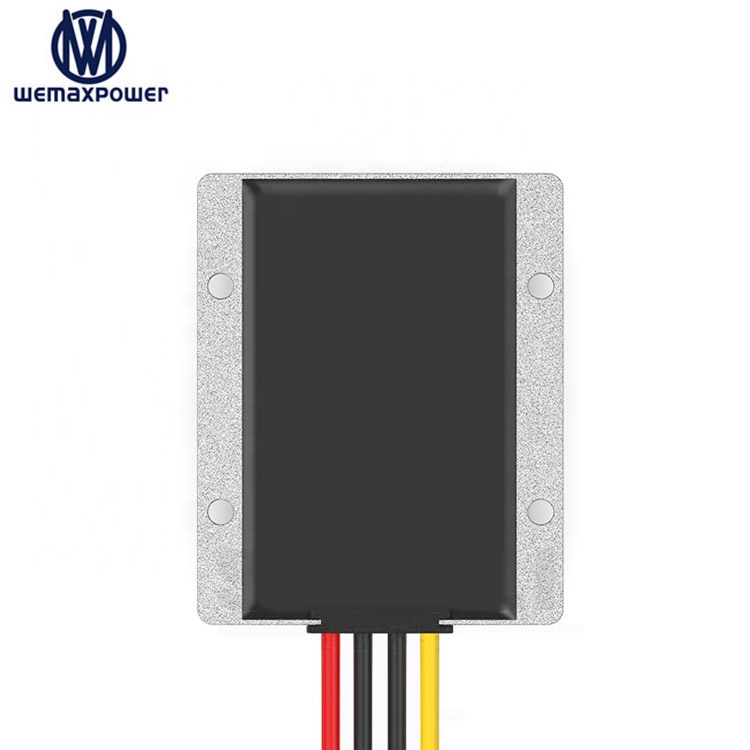

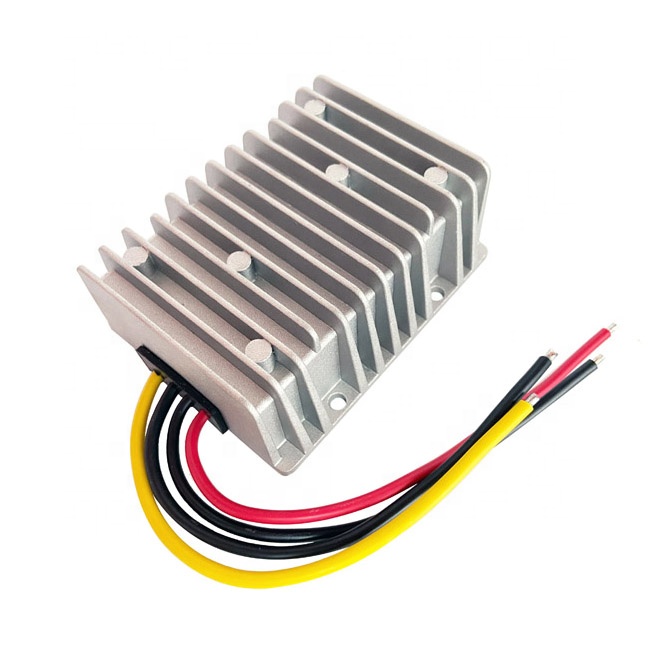

Waterproof 12vdc boost 28vdc 20amp Voltage Regulator 20a Voltage 12v to 28v Dc Step up Converter

Product Description

Waterproof 12vdc boost 28vdc 20amp voltage regulator 20a voltage 12v to 28v dc step up converter

Waterproof 12vdc boost 28vdc 20amp Voltage Regulator 20a Voltage 12v to 28v Dc Step up Converter
12v to 28v 20a dc converter
Separator
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Separator Voltage Regulator Options Matrix Separator
Series No. WMX-D12D28
Model No. WMX-DSD12S2820
Product Name 12v to 28v dc step up converter
Input rated voltage 12Vdc
Input voltage range 10-16Vdc
Conversion Efficiency 96%
Output voltage 28Vdc
Output current 20Amps
Output rated power 560Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Cooling way Free air convection
Packing White standard box
Product Description
Separator Product specifications and details
Voltage Regulator Detail view 1 Voltage Regulator Detail view 2

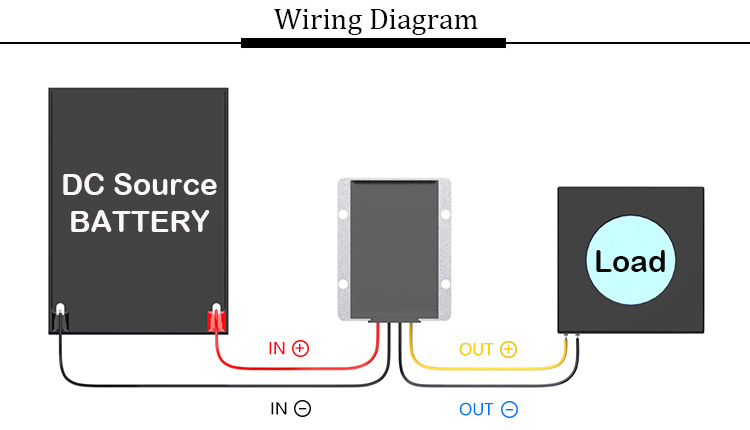

Separator Quality assembly and shell features Detailed specifications sheet Separator Application diagram
Frequently Asked Questions
Separator
How do you ensure your product and service quality?

All our processes strictly adhere to standard procedures. We provide a 12-month quality warranty against the delivery date. If the product does not work properly as described and the issue is proven to be caused by manufacturing, we will provide exchange services for the same item. Our support team is always available to assist you.

Can you customize products according to specific requirements?

Yes, we provide bespoke customization services to meet specific customer requirements. You can send your detailed specifications, and we will evaluate if we can develop the solution. We develop new models regularly, and we can also work with physical samples provided by you to build custom versions.

Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?

Yes, we are pleased to send samples so you can evaluate the build quality and performance. We are confident that you will be satisfied with the results and find our products to be a reliable choice for your power supply needs.

What is your Minimum Order Quantity (MOQ)?

Different products carry different MOQs. Generally speaking, our minimum order quantity starts at 1 to 2 pieces. Please contact us to confirm the requirements for specific items.

What is the expected delivery timeframe?

If the item you need is in stock, we can ship it within 1-3 working days after receiving payment. For out-of-stock items, the timeframe varies depending on the product, generally taking between 1 to 4 weeks for production.

What are the available shipping options?

Small batches can be shipped via air express, while larger orders can be sent by container to reduce costs. You may use your own assigned shipping agent or utilize our cooperative freight forwarders. Our strategic location near major ports ensures convenient maritime transportation.
