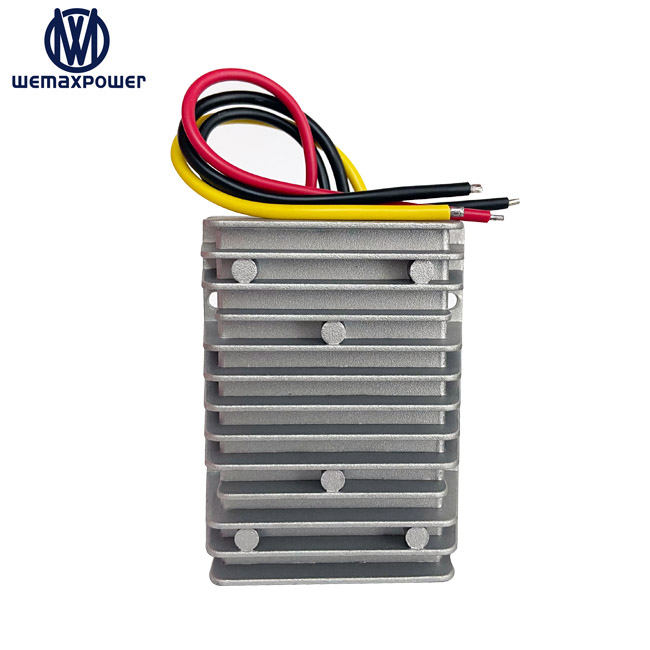

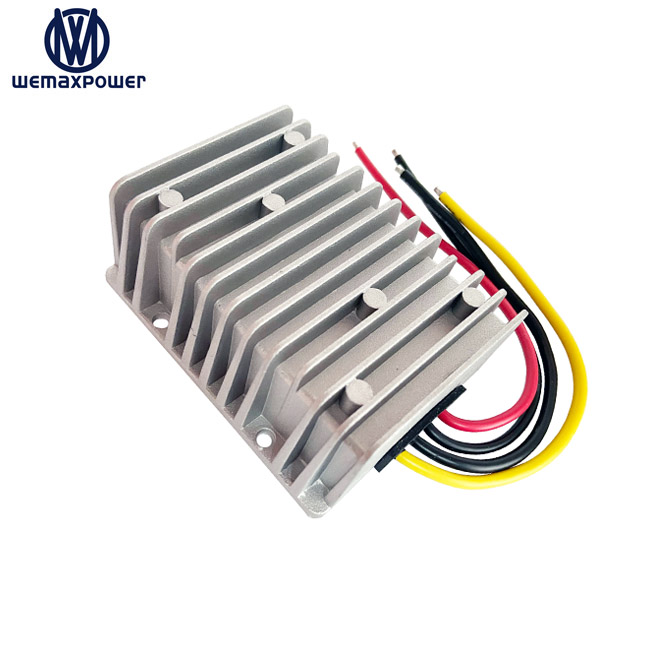

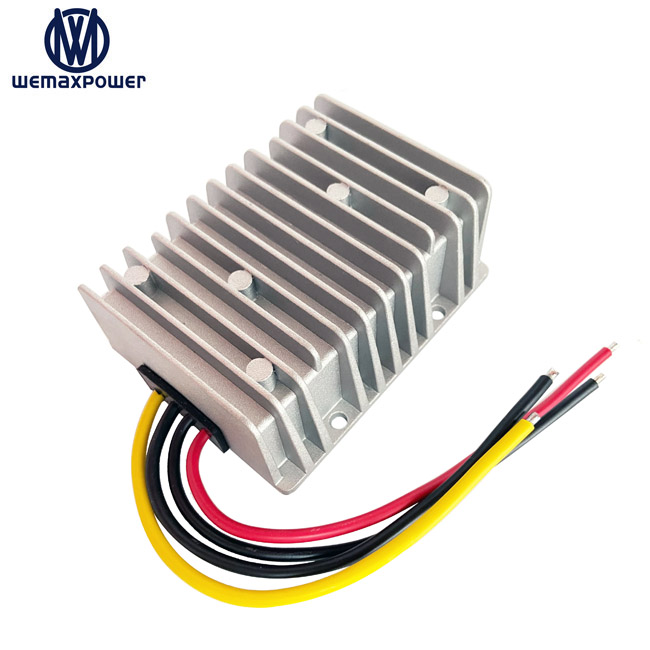

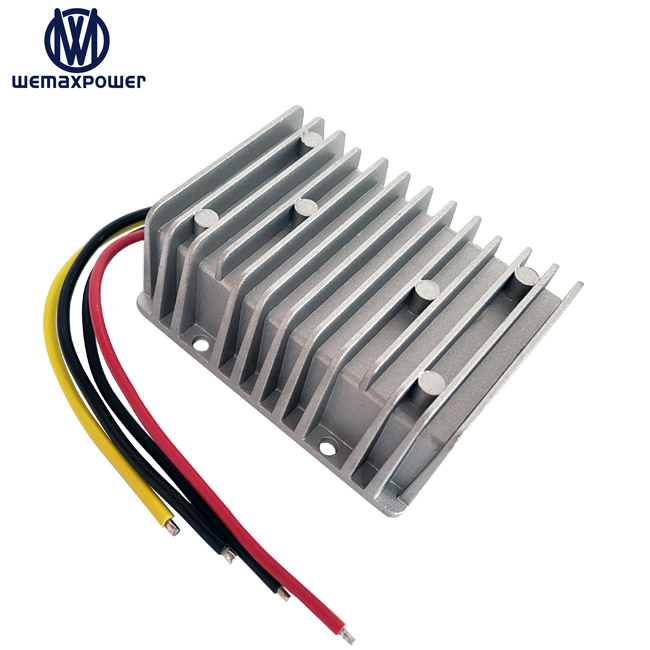

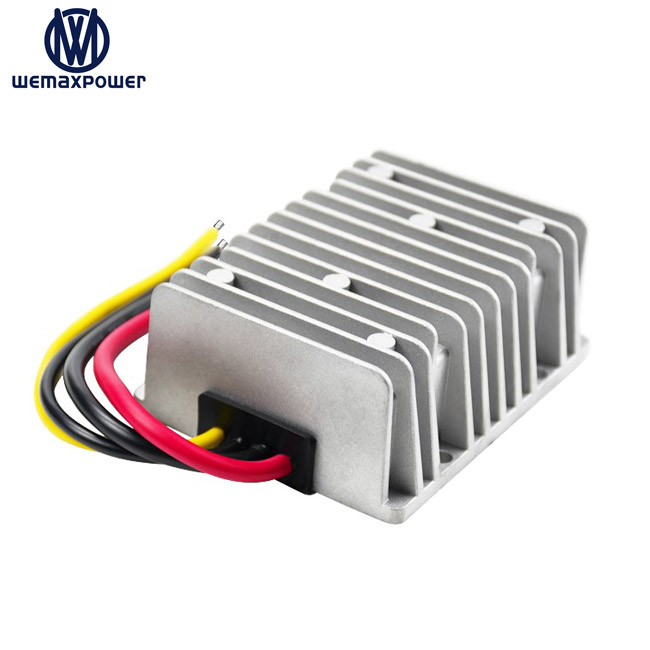

Video Radio 30Amp 24Vdc Buck 13.8Vdc Module Voltage Regulator 30A 24v to 13.8v DC Step Down Converter
Similar Products
24v to 13.8v converter
Features
- High quality components.
- Full power, stable voltage & current output.
- Wide input voltage range.
- Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
- Industry grade product, efficiency up to 96%.
- Die-cast aluminum shell, epoxy potting.
- Non-Isolated Module.
Specification
| Series NO. |
WMX-D24D13.8 |
| Model NO. |
WMX-DSD24S13.830 |
| Product Name |
24v to 13.8v converter |
| Input rated voltage |
24Vdc |
| Input voltage range |
18-32Vdc |
| Conversion Efficiency |
96% |
| Output voltage |
13.8Vdc |
| Output current |
30A |
| Output rated power |
414W |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Ripple (full load test) |
< 150mV |
| No-load current |
< 20mA |
| Working Temperature |
-40°c ~ +80°c |
| Waterproof rating |
IP67 |
| Protections |
Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size |
100*80*39mm |
| N. Weight |
490g |
| Cooling way |
Free air convection |
| Packing |
White standard box |
Buyer Feedback
FAQ
Why choose us?
We are a dedicated DC-DC converter manufacturer with more than 10 years of industry experience. The performance of our converters is extremely stable, and our product technology is updated regularly.
Is there any requirement of the load?
Yes, these DC-DC converters feature a fixed voltage output, which means they cannot be used to charge batteries directly. If you need a device for charging batteries, you may choose our specialized DC-DC chargers.
Why are other products cheaper than yours?
Some suppliers use cheaper components, which leads to insufficient power output. Our products are engineered with high-grade imported components designed to support continuous, full-load operation over the long term.
What about your after-sales service?
We provide a 1-year warranty on our products. In case of any quality issues within the warranty period, we offer product exchange services.
What are your Payment & Logistics terms?
We accept various payment terms including L/C, T/T, Western Union, MoneyGram, and PayPal. Shipping options include DHL, UPS, FedEx, TNT, EMS, and Sea transport.
What is the MOQ of the 24v to 13.8v buck converter?
We offer a low MOQ. Sample units (1 to 5 units) are available for testing purposes.
