| Series NO. | WMX-D12D24 |
| Model NO. | WMX-DSD12S2401 |
| Product Name | dc dc converter 12v to 24v |
| Input rated voltage | 12Vdc |
| Input voltage range | 9-20Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 24Vdc |
| Output current | 1A |
| Output rated power | 24W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |

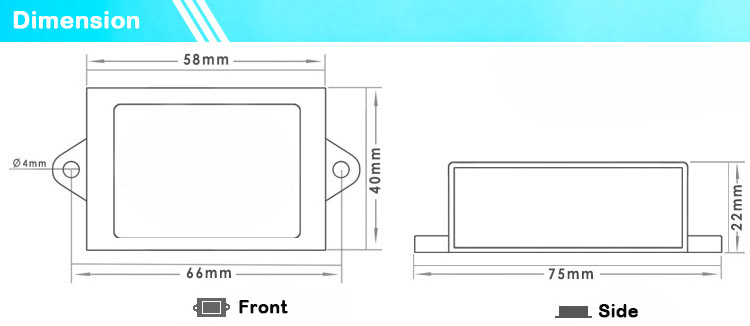

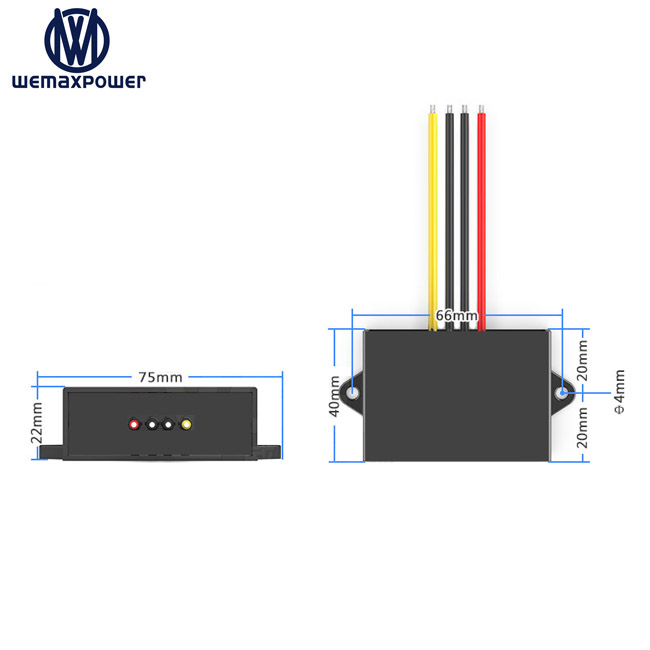

| Machine size | 58*40*22mm |
| N. Weight | 90g |
| Cooling way | Free air convection |
| Other | Static bag packing |
Since 2009, our factory has provided various power solutions for different projects worldwide. Our range includes DC to DC converters, AC to DC, DC to AC, and AC to AC power supplies designed to meet diverse power conversion requirements.
You can find a wide range of power conversion equipment from us, including DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
All manufacturing processes strictly follow ISO-9001 quality management procedures. We offer a 12-month quality warranty from the delivery date. If a product does not function as specified due to manufacturing defects, exchange services will be provided.
Yes, we provide bespoke manufacturing and custom engineering services. You can send us your detailed specification requirements or physical samples, and our development team will evaluate and customize the solution for your project.
Yes, we support sample orders of 1 or 2 pieces so you can test product quality and performance in your specific applications before committing to bulk purchases.
If standard stock is available, items are usually shipped within 1-3 working days. For out-of-stock items, lead times vary from 1 to 4 weeks depending on the order. We offer flexible shipping arrangements via air express for smaller batches or container shipping for large volume orders.
