Wemax Power
1 / 3
| Model No. | WMX-DSD10-60S2425 |
| Product Name | 12/24/36/48v to 24v dc-dc converter |
| Input rated voltage | 12/24/36/48Vdc |
| Input voltage range | 10-60Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 24Vdc |
| Output current | 25A |
| Output rated power | 600W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |

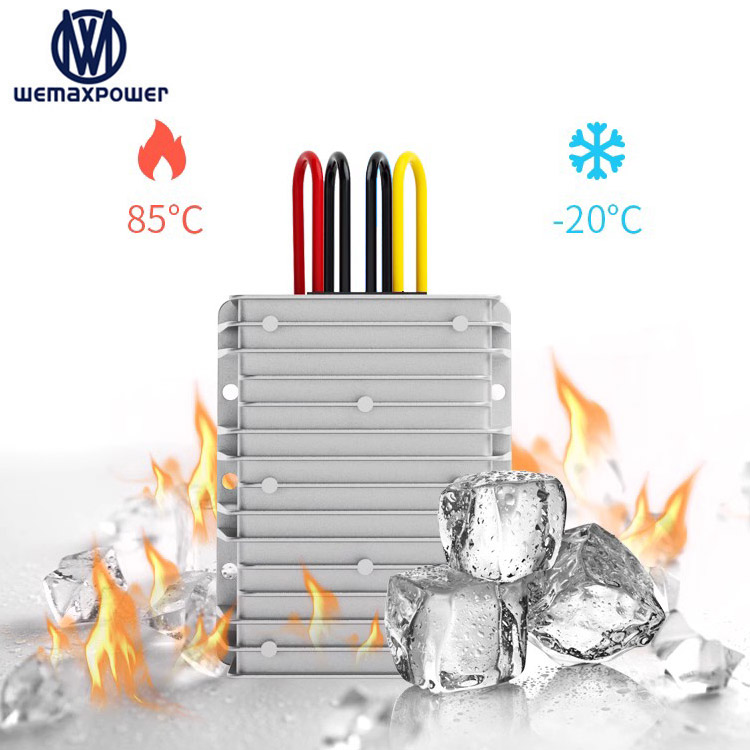

| Working Temperature | -40°c ~ +80°c |

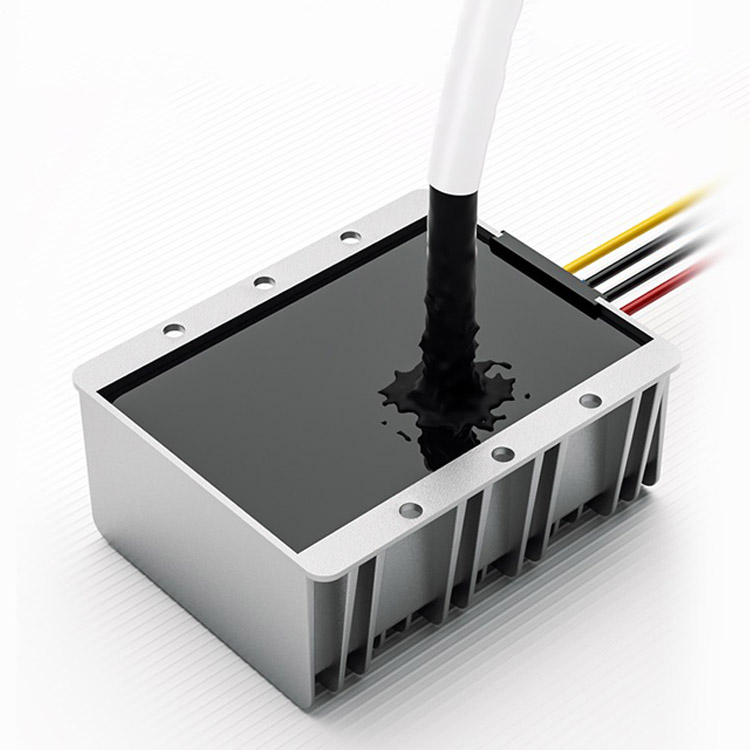

| Waterproof rating | IP67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |

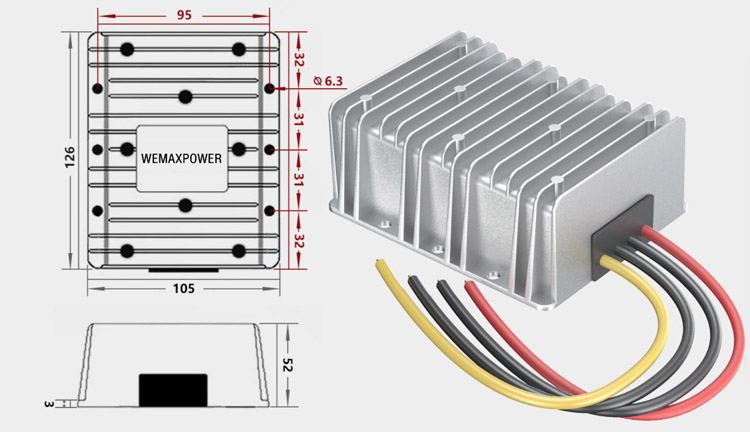

| Machine size | 126*105*52mm |
| N. Weight | 1kg |
| Cooling way | Free air convection |
| Packing | White standard box |
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staffs will always be there for you if anything needed.
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.
Different products have different MOQ, generally speaking, our MOQ is 1~2pcs, please don't hesitate to check with us for specific items.
If we have stock of the items you need, we can send goods to you within 1-3 working days after receiving deposit or 100% payment into our bank account. If we don't have inventory, the delivery date will be different for different products. Generally speaking, it will take 1 to 4 weeks.
