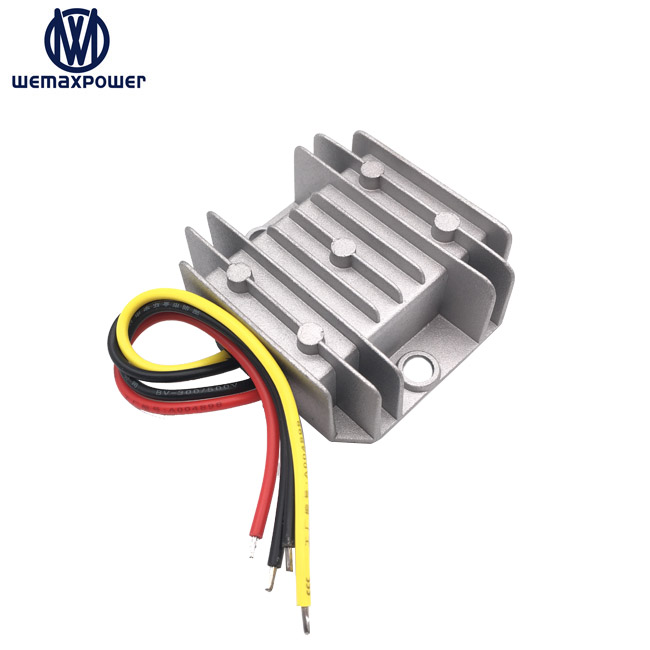

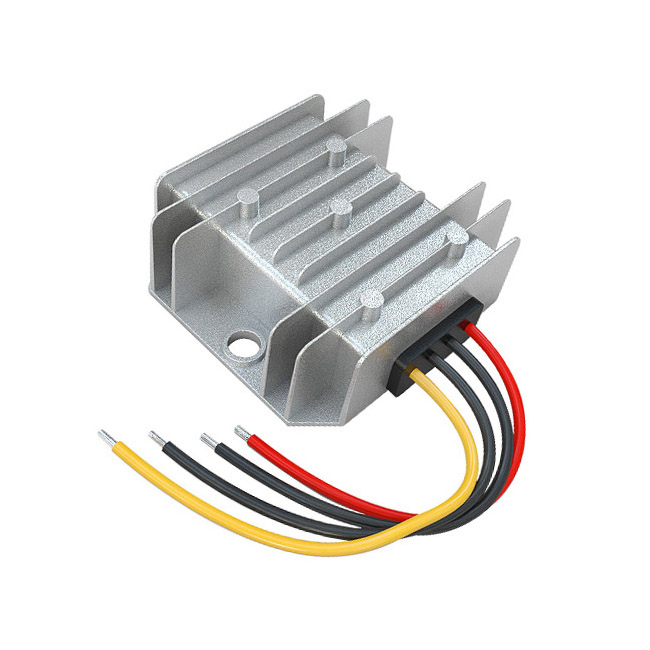

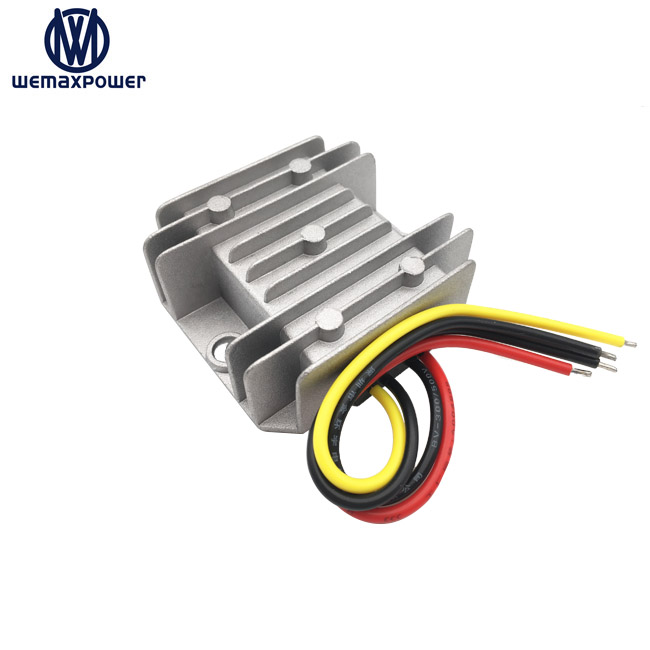

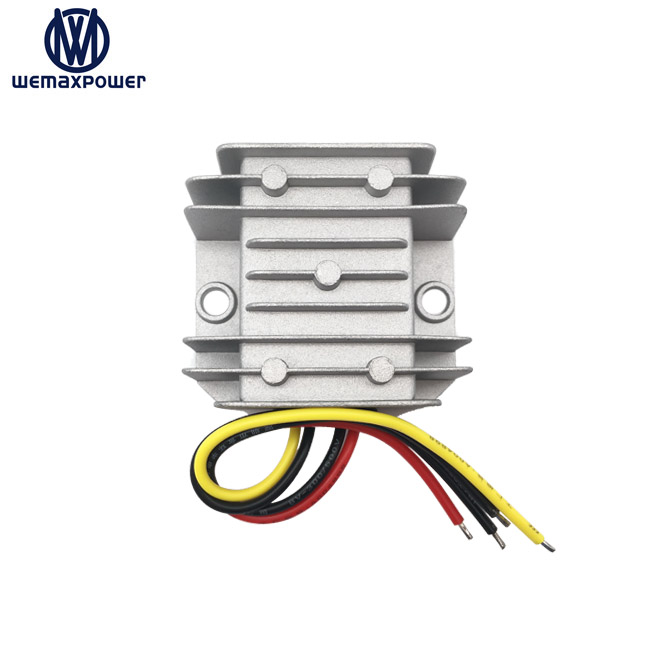

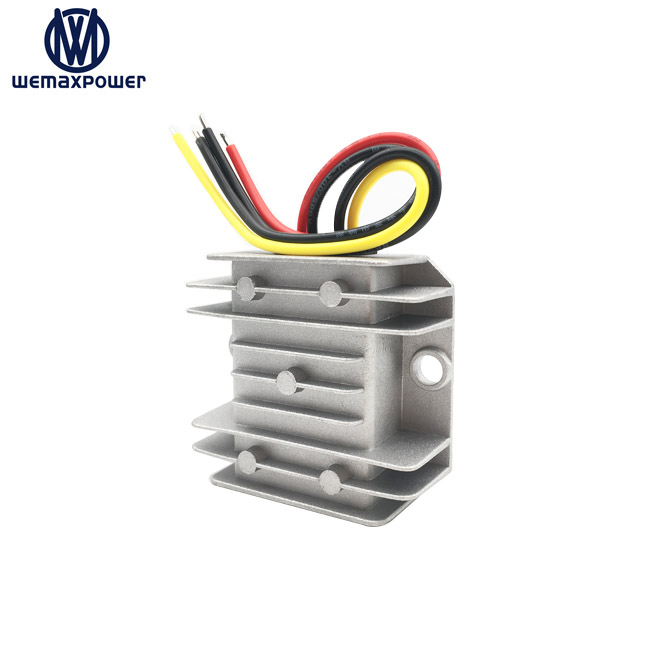

WEMAXPOWER Stable Voltage Output Step up Down 2amp Dc/dc 12v 24v to 24V 48w Buck boost Converter 2a Voltage Regulator 24vdc

Product Description

Stable Voltage Output Step Up Down 2amp DC/DC 12V 24V to 24V 48W Buck Boost Converter 2A Voltage Regulator 24VDC

Stable Voltage Output Buck Boost Converter Divider
DC DC Converter Specifications Graphic

12/24v to 24v 2a dc dc converter

Features Section Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Specifications Divider
Series No. WMX-D9-40D24
Model No. WMX-DSD9-40S2402
Product Name 12v 24v to 24V 2A DC-DC Converter
Input rated voltage 12/24Vdc
Input voltage range 9-40Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 2A
Output rated power 48W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 57*64*22mm
N. Weight 125g
Cooling way Free air convection
Packing White standard box
Product Images Divider
Technical Specifications Details
Dimension Details Divider
Converter Dimensions Display
Installation Guide Divider
Wiring Guide Diagram
Product Quality Divider
Materials and Component Selection
Detailed Features and Advantages
Application Divider
Application Scenarios Showcase
Production Process Divider
Production Line and Aging Tests
Frequently Asked Questions
Q How do we work?

Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything is needed.

Q If we don't find what we need on your website, what should we do? Do you make custom services as per specific requirements?

Yes, we can provide bespoke services to customers with specific requirements. You can send the detailed requirements, and we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Alternatively, you can send us samples and we can develop the new models especially for you.

Q Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solutions.

Q What is your Minimum Order Quantity?

Different products have different MOQ. Generally speaking, our MOQ is 2pcs. Please don't hesitate to check with us for specific items.
