| Series NO. | WMX-D9-40D24 |
| Model NO. | WMX-DSD10-32S2403 |
| Product Name | 12/24v to 24V 3A DC-DC Converter |
| Input rated voltage | 12/24Vdc |
| Input voltage range | 10-32Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 24Vdc |
| Output current | 3A |
| Output rated power | 72W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |

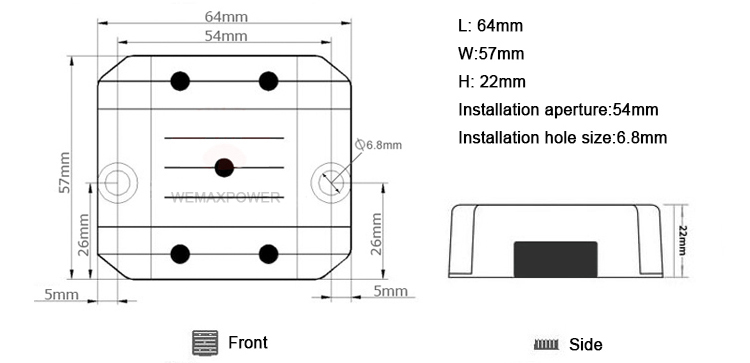

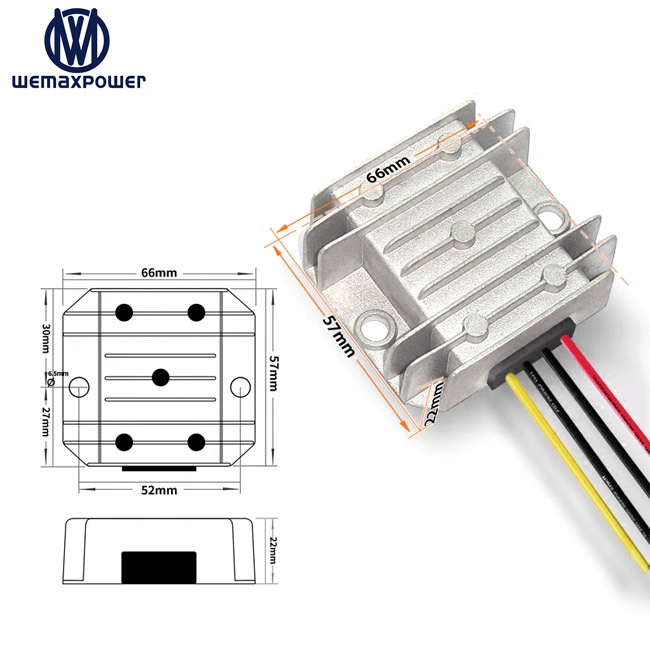

| Machine size | 57*64*22mm |
| N. Weight | 125g |
| Cooling way | Free air convection |
| Packing | White standard box |
