Wemax Power
1 / 5
| Series No. | WMX-D9-40D24 |
| Model No. | WMX-DSD9-40S2405 |
| Product Name | 24v buck boost converter |
| Input rated voltage | 12/24Vdc |
| Input voltage range | 9-40Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 24Vdc |
| Output current | 5A |
| Output rated power | 120W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |

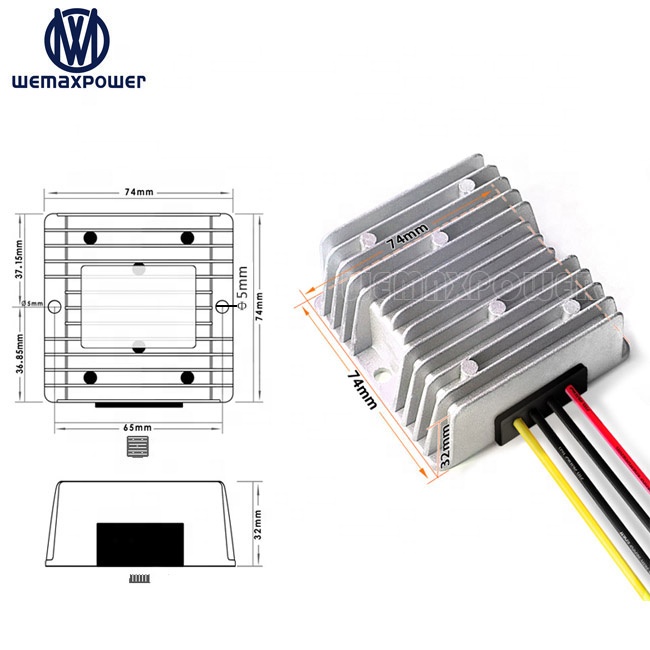

| Machine size | 74*74*32mm |
| N. Weight | 290g |
| Cooling way | Free air convection |
| Packing | White standard box |
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet diverse power conversion needs.
We offer a comprehensive range of products, including DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
All our production processes strictly adhere to ISO-9001 quality procedures. We offer a 12-month quality warranty from the delivery date. If a product does not function properly as described and the issue is proven to be caused by manufacturing, we will provide exchange services for the item. Our support team is always available to assist you.
Yes, we provide custom and bespoke solutions. If you have specific requirements, you can send us the detailed specifications, and our team will evaluate and design a suitable model for you. We regularly develop new models to meet evolving market demands.
Yes, we welcome sample orders for evaluation. We are pleased to provide samples so you can test the quality and performance firsthand. We are confident that you will be highly satisfied with the durability and efficiency of our converters.
MOQ requirements vary depending on the specific model. Generally, for standard items, our MOQ is 1~2 pieces. Please contact us directly to check the exact requirement for your desired product.
