Wemax Power
1 / 5
| Model | WMX-B2B12S14.6100 | |

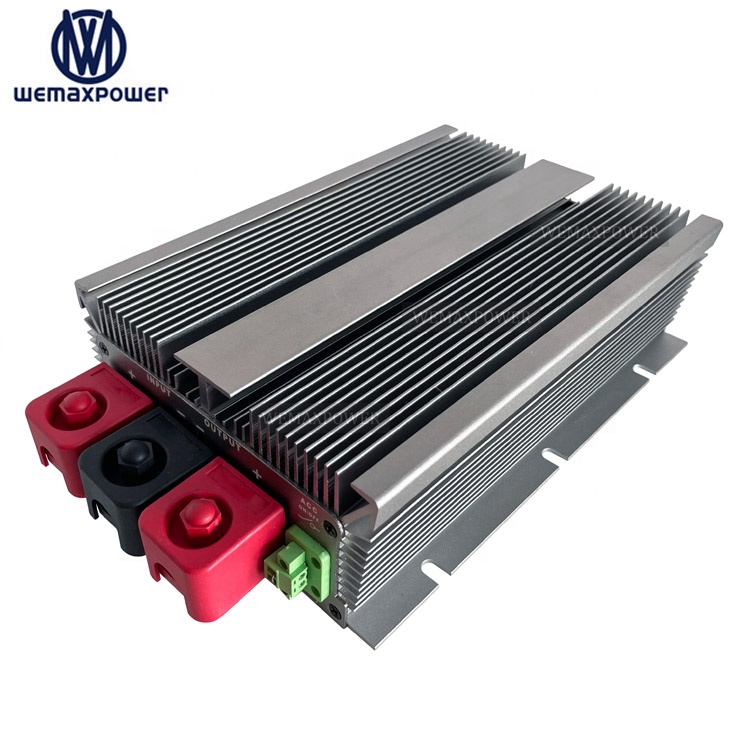

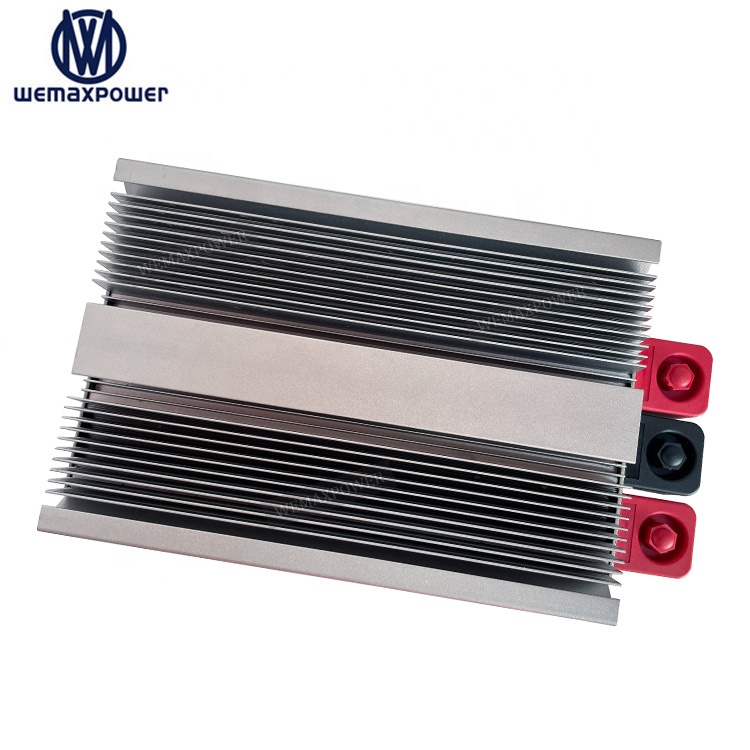

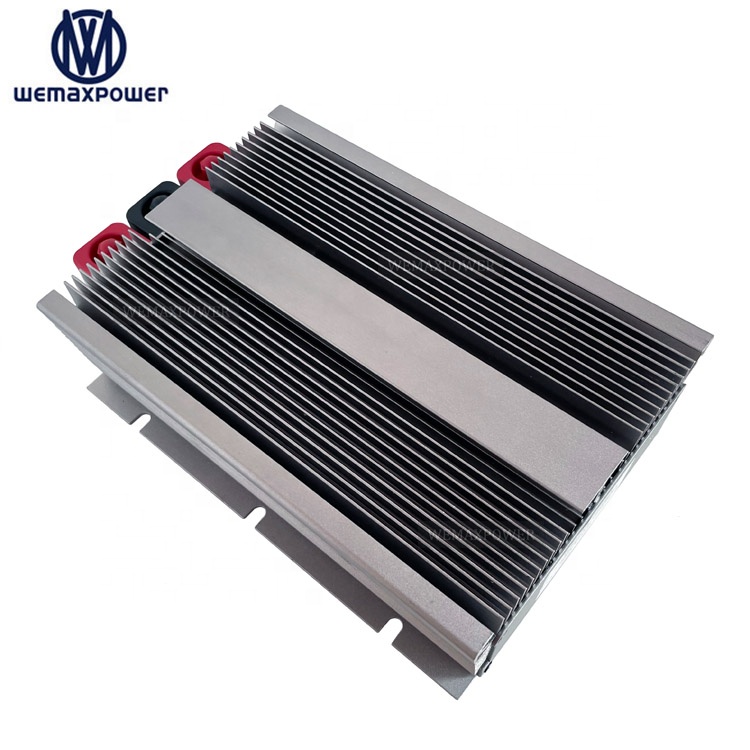

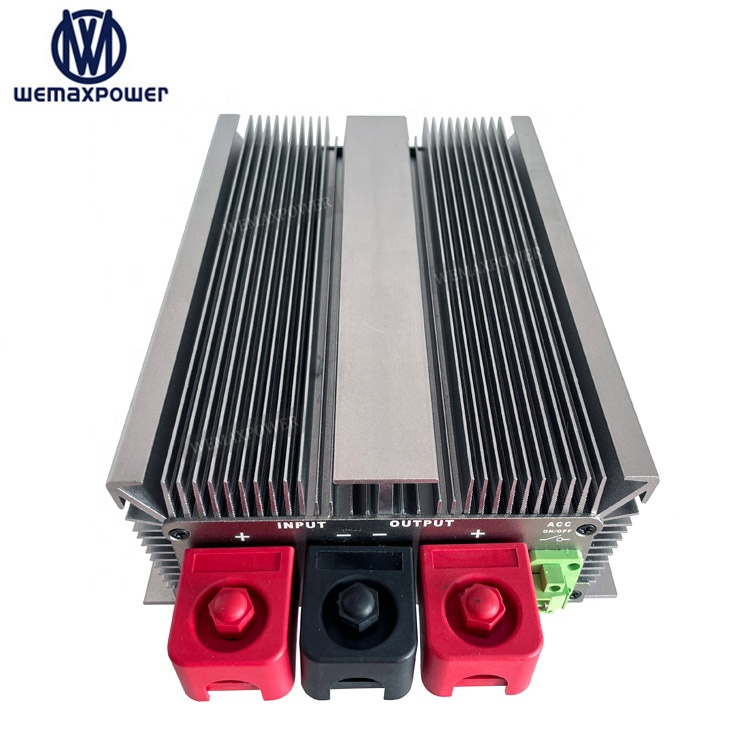

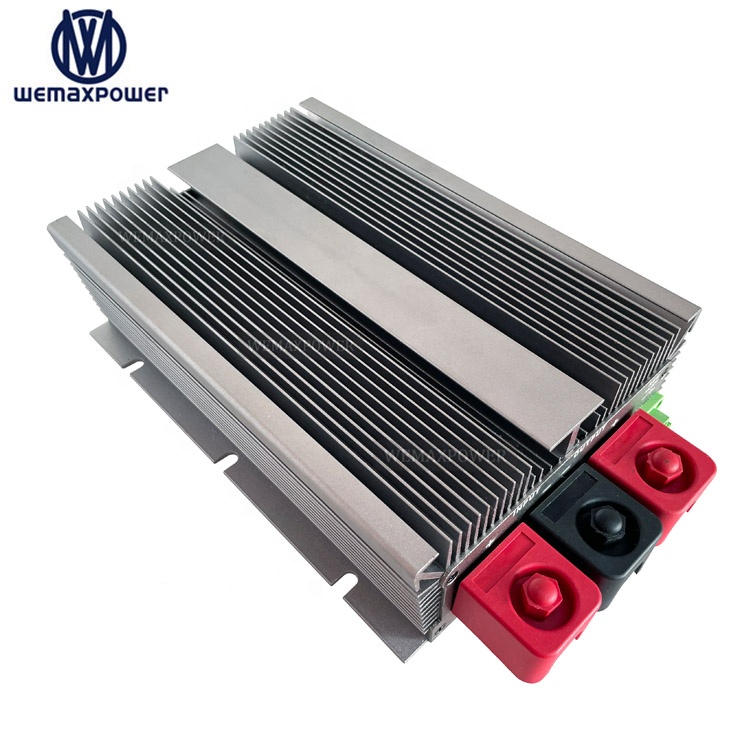

| Product Name | 12V to 14.6V 100A dc to dc charger | |
| Input | Starter Battery voltage (Input) | DC12V |
| Input Voltage range | 12V (Input range 12.5-16V, Starting voltage:12.5V) | |
| Starter Battery Type | GEL, Sealed, Flooded, LifePO4, Lithium-ion | |
| Output | Charging Voltage |
DC14.6V (Other charging voltage can be customized according to request) |
| Max Charge Current | 100A | |
| Max Output power | 1460W | |
| Main battery type | LifePO4 | Lithium-ion | Lead Acid battery | |
| ACC Function | Optional | |
| Voltage regulation | ±1% | |
| Load regulation | 2% | |
| Environment Working temperature | -35 ~ +80°c | |
| Working humidity | 10% ~ 90% RH | |
| Storage temperature | -40 ~ +85°c | |
| protection Function | Low voltage protection | Over temperature protection | Over voltage protection | |
| Waterproof | The charger's body is waterproof, and the input and output terminals are non-waterproof. | |
| Cooling way | Free air convection | |
| Shell | Anti-corrosion aluminum shell | |
| Input & Output connector | Terminal (Wire output should be customized) | |
| Dimension | 220*156*65mm | |

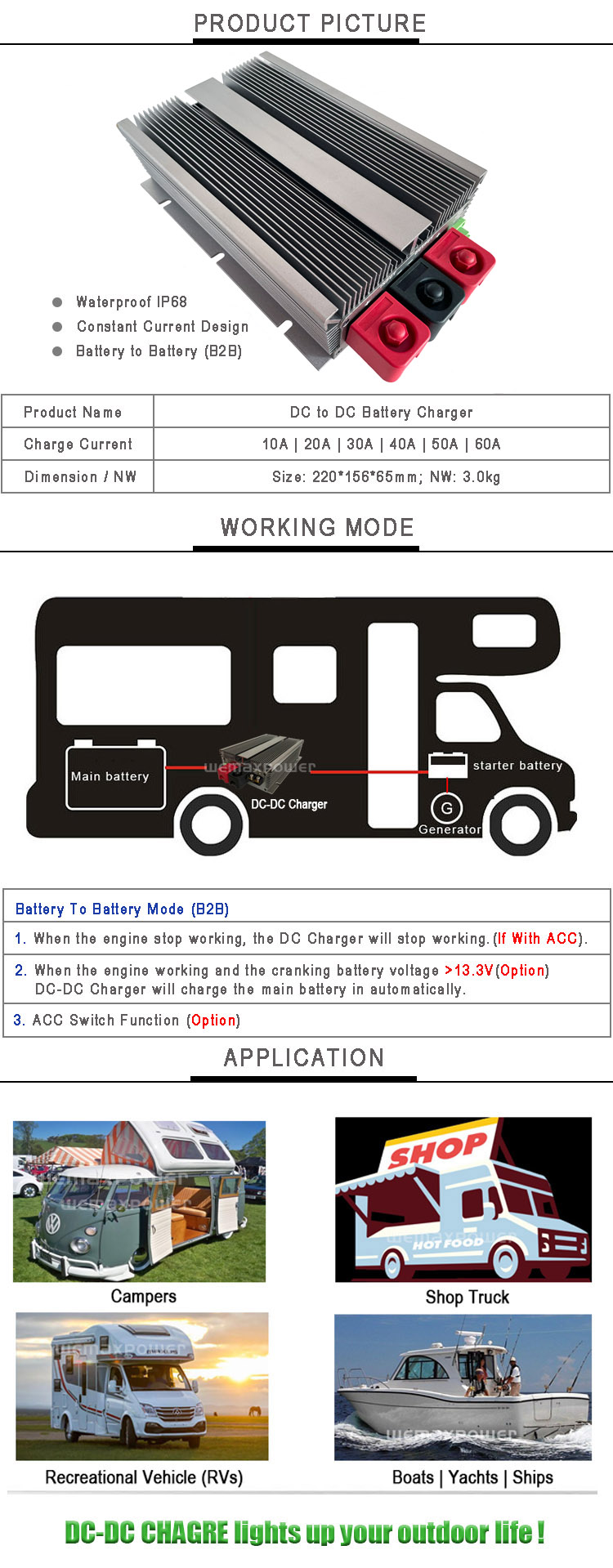

| Application | It is main apply for Lead acid or Li-ION or LiFePO4 Lithium Battery on RVs, exposed cars, campers, ships, etc. | |
