| Technical Specifications | ||
|---|---|---|
| Model | WMX-B2B12S2820 | |

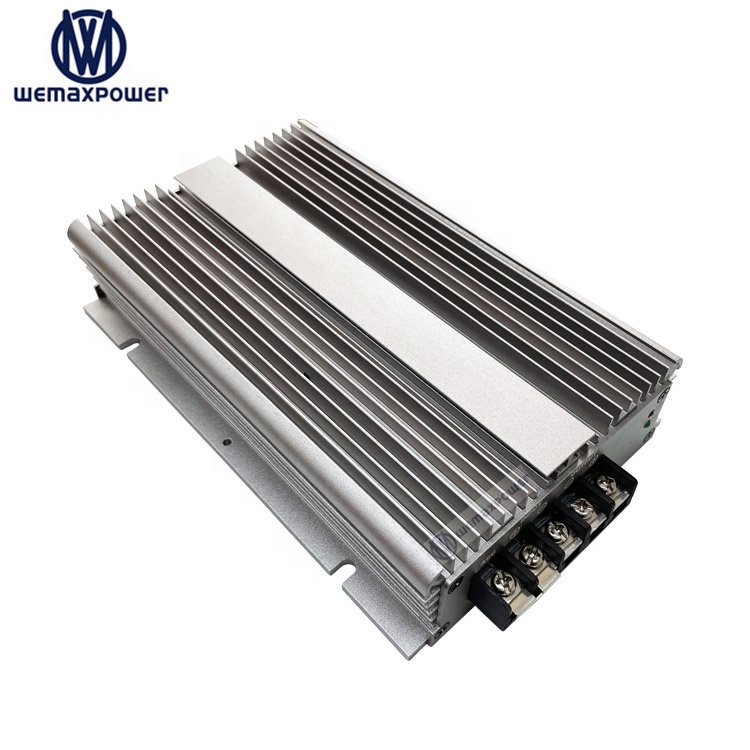

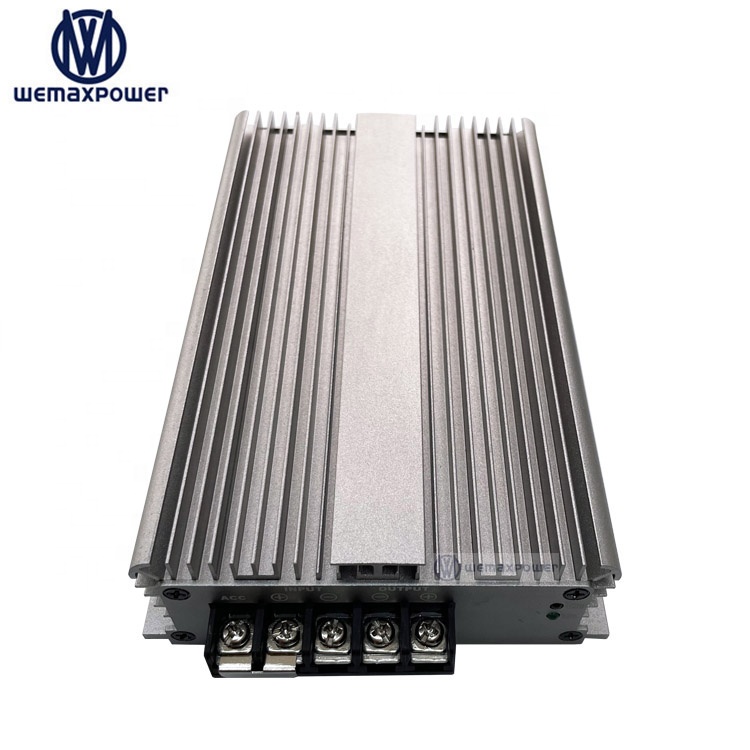

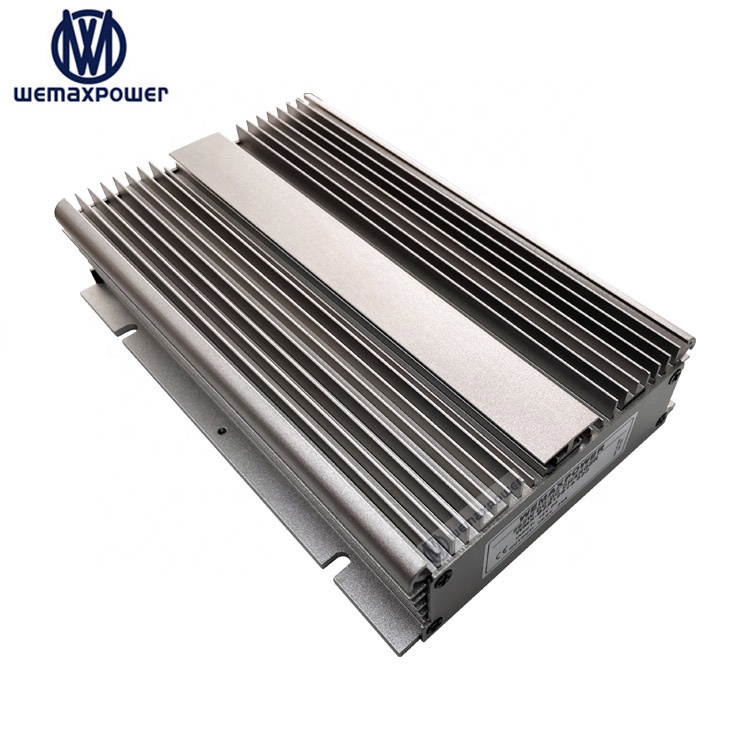

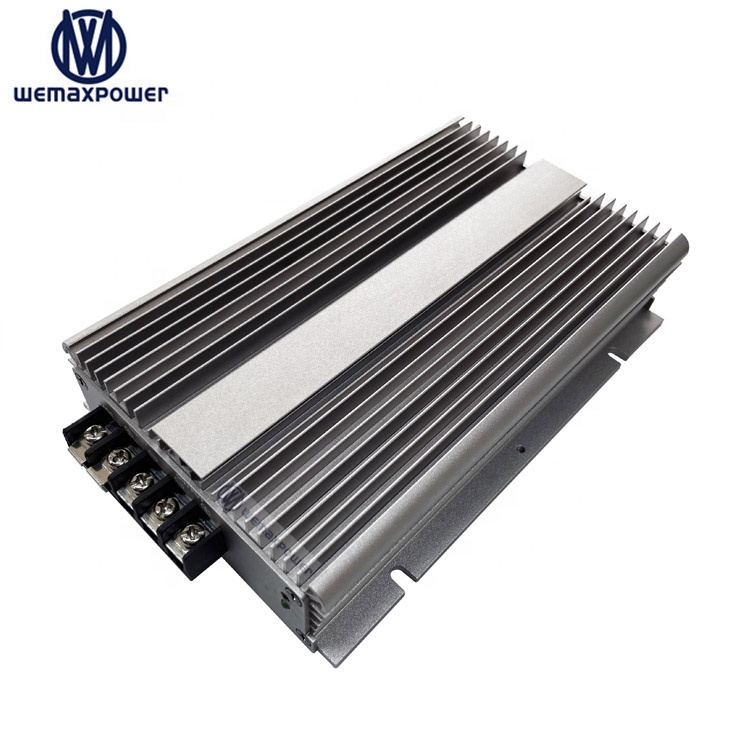

| Product Name | 12V to 28V 20A DC to DC Battery Charger | |
| Input | Starter Battery Voltage | DC 12V |
| Voltage Range | 12V (Input range 12.5-16V) | |
| Starter Battery Type | GEL, Sealed, Flooded, LiFePO4, Lithium-ion | |
| Output | Charging Voltage | DC 28V (Other custom voltages available on request) |
| Max Charging Current | 20A | |
| Max Output Power | 560W | |
| Main Battery Type | Used to charge LiFePO4 battery | Lithium-ion Battery | |
| ACC Function | Optional | |
| Voltage Regulation | ±1% | |
| Load Regulation | 2% | |
| Environment Working Temp | -35 ~ +80°C | |
| Working Humidity | 10% ~ 90% RH | |
| Storage Temperature | -40 ~ +85°C | |
| Protection Function | Low voltage protection | Over temperature protection | Over voltage protection | |
| Waterproof | The charger body is waterproof; input/output terminals are non-waterproof (custom wire configurations available). | |
| Cooling Way | Free air convection | |
| Shell | Anti-corrosion aluminum shell | |

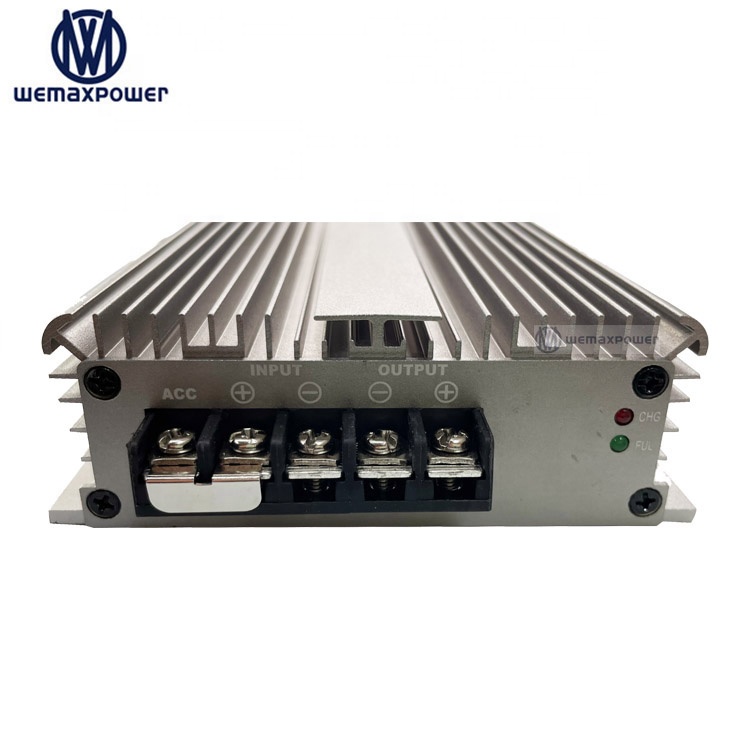

| Input & Output Connector | Terminal (Wire output option can be customized) | |
| Dimension | 220 * 130 * 50mm | |
| Application | DC-DC Charger for Lead-acid, Li-ion, or LiFePO4 Lithium batteries on RVs, exposed cars, campers, marine ships, etc. | |
