Constant Current Full Automatic Waterproof Vehicle 12V to 14.6V 5A DC to DC Buck and Boost Battery Charger

Product Description

Constant Current Full Automatic Waterproof Vehicle 12V to 14.6V 5A DC to DC Buck and Boost Battery Charger

Constant Current Full Automatic Waterproof Vehicle 12V to 14.6V 5A DC to DC Buck and Boost Battery Charger

Divider Line
High quality components.
Full power, stable voltage & current output.
Wide input voltage range.
Waterproof & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast aluminum shell, epoxy potting.
Non-Isolated Module.
Divider Line
Series NO. WMX-B2B14.6
Model NO. WMX-B2B12S14.605
Product Name 12v to 14.6v DC to DC Buck and Boost Battery Charger
Input rated voltage 12Vdc
Input voltage range 10-16Vdc
Conversion Efficiency 96%
Charging voltage 14.6Vdc
Charging current 5A
Output rated power 73W
ACC Port /
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c~ +80°c
Waterproof YES
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 118*80*28mm
N. Weight 460g
Cooling way Free air convection

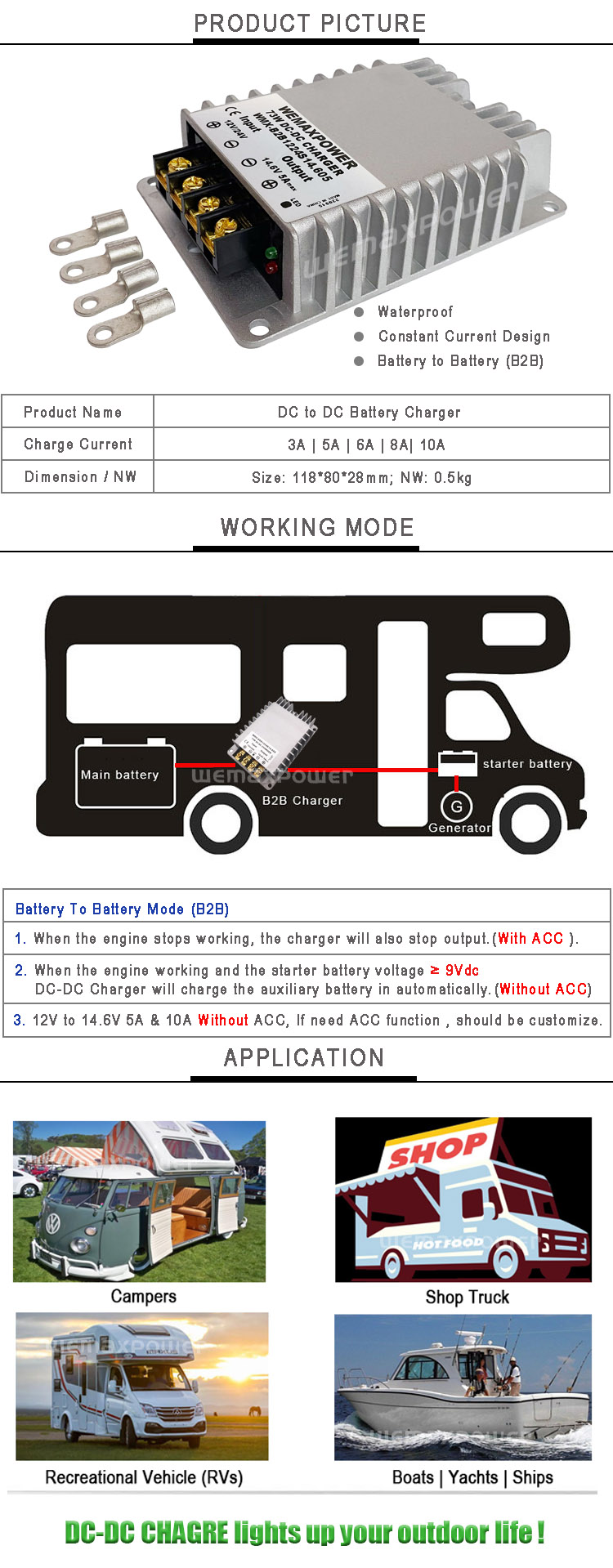

Technical Specifications Details
Divider Line

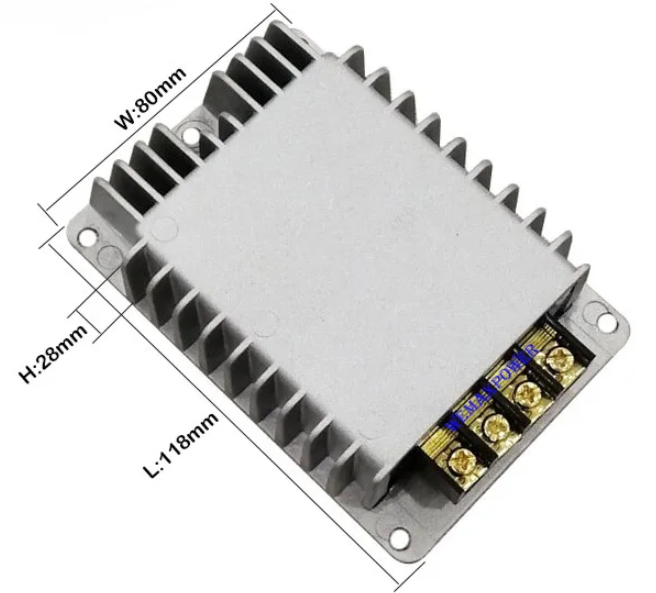

12v to 14.6v DC to DC Buck and Boost Battery Charger dimension
12v to 14.6v DC to DC Buck and Boost Battery Charger dimension
Divider Line
MODEL IN-V IN-V Range OUT-V OUT-A Dimension-mm
12V TO 14.5V/14.6V SERIES
WMX-B2B12S14.605 12V 10-16V 14.6V 5A 118*80*28mm
WMX-B2B12S14.610 12V 10-16V 14.6V 10A 118*80*28mm
WMX-B2B12S14.505 12V 10-16V 14.5V 5A 118*80*28mm
WMX-B2B12S14.510 12V 10-16V 14.5V 10A 118*80*28mm
WMX-B2B12S14.615 12V 12.5-16V 14.6V 15A 150*130*50mm
WMX-B2B12S14.620 12V 12.5-16V 14.6V 20A 180*118*39 mm
WMX-B2B12S14.625 12V 12.5-16V 14.6V 25A 180*118*39 mm
WMX-B2B12S14.630 12V 12.5-16V 14.6V 30A 220*130*50mm
WMX-B2B12S14.640 12V 12.5-16V 14.6V 40A 220*130*50mm
WMX-B2B12S14.650 12V 12.5-16V 14.6V 50A 220*130*50mm
WMX-B2B12S14.660 12V 12.5-16V 14.6V 60A 220*130*50mm
WMX-B2B12S14.680 12V 12.5-16V 14.6V 80A 220*156*65mm
Battery Charger Display View 1
Battery Charger Display View 2
Divider Line
Divider Line
Frequently Asked Questions
What kind of products can you buy from us?
We supply high-quality DC-DC Converters, DC-DC Chargers, Voltage regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC DC Converters, and Switching Power Supplies.
How do you ensure your product and service quality?
All of our design and manufacturing processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty starting from the delivery date. If a product does not function as described due to a proven factory defect, we will provide a replacement service for the same item. Our technical support team is always available to assist you.
Do you offer custom services based on specific requirements?
Yes, we provide bespoke manufacturing services tailored to specific customer demands. If you have unique project requirements, please contact us with your specifications. We continuously develop new models and can create customized products for you.
Can I buy 1 or 2 sample pieces for testing before placing a bulk order?
Yes, sample orders are welcome. We are pleased to provide samples for quality and performance evaluation. We are confident that the testing results and our cost-effective solutions will meet your expectations.
What is your Minimum Order Quantity (MOQ)?
Minimum order quantities vary depending on the product type. Generally speaking, our standard MOQ starts at 1 piece. Please contact us directly to confirm the specific MOQ for your desired items.
What is the expected delivery date?
If the items you order are in stock, we typically ship them within 1 to 3 working days after payment confirmation. For items that are not currently in stock, standard production lead times range between 1 to 4 weeks depending on the product model and quantity.
