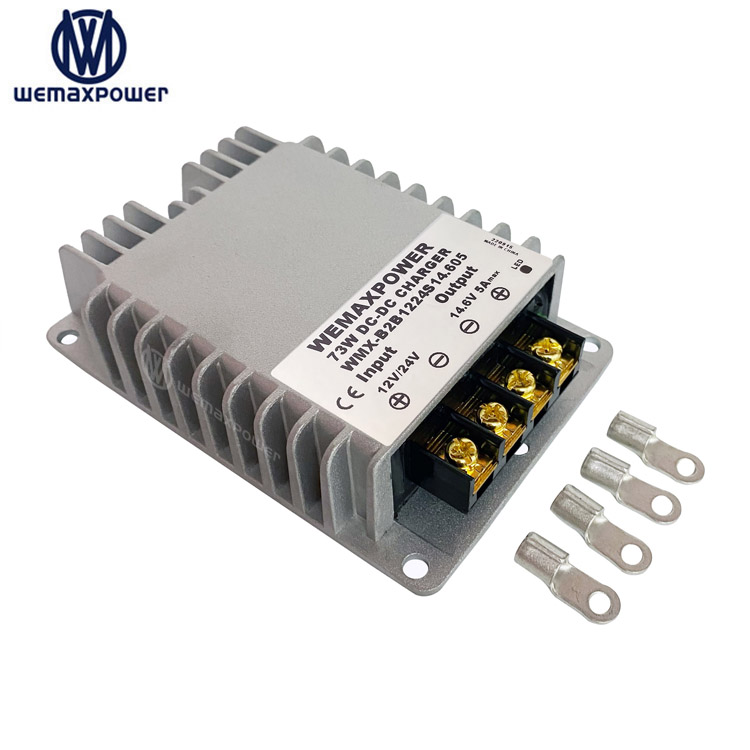

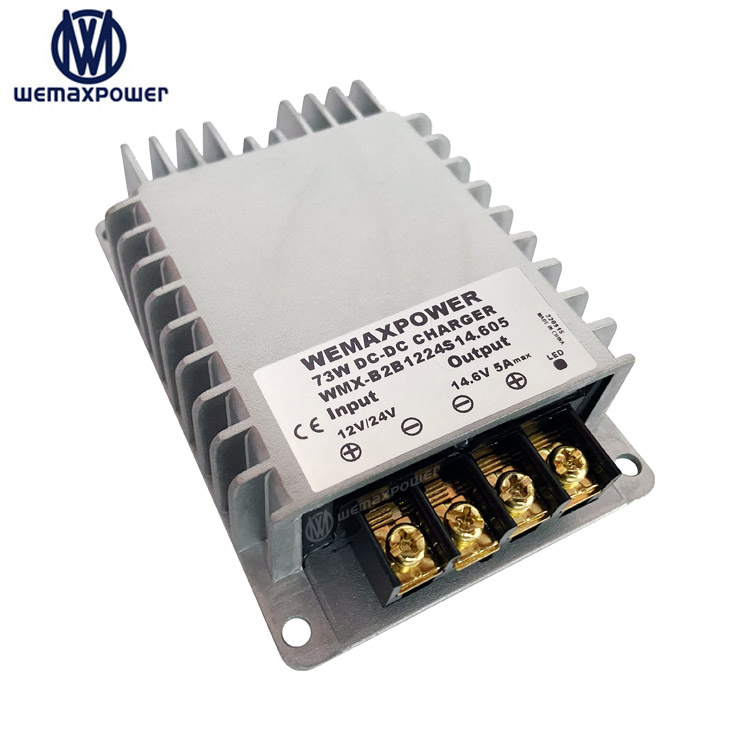

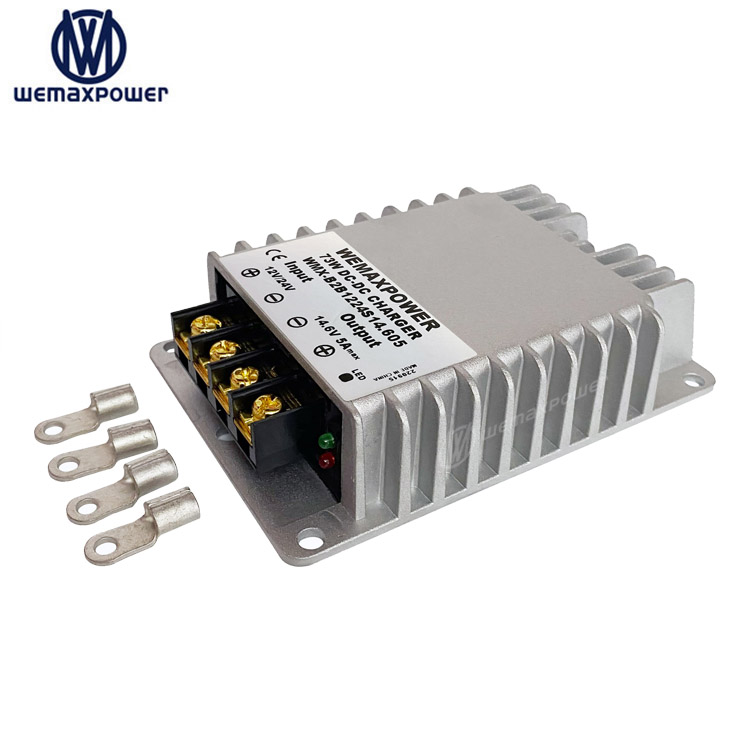

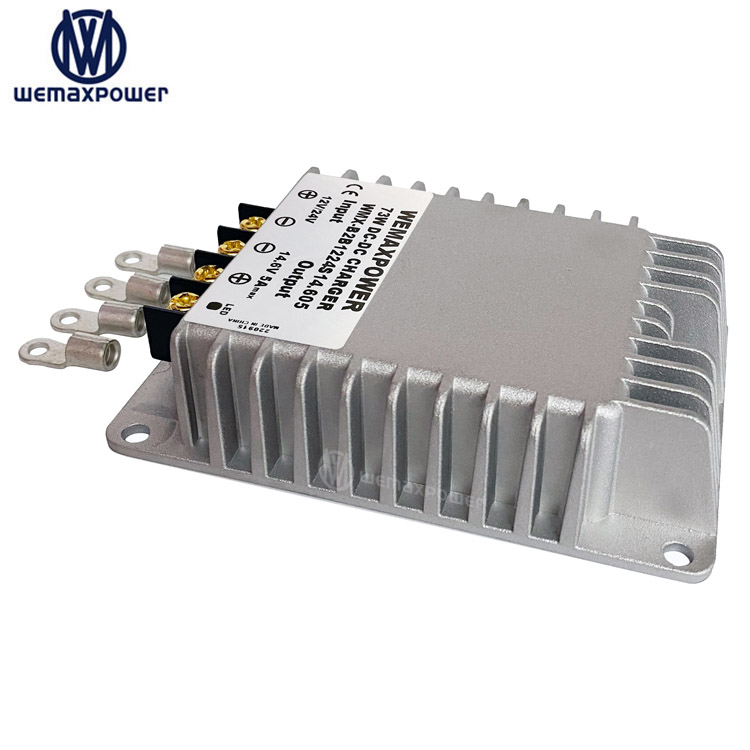

Wemaxpower Waterproof Battery to Battery 9-16V to 14.6V Max Charge Current 10A DC to DC Lithium Life-po4 Battery Charger

Product Description

Waterproof Battery to Battery Charger 9-16V to 14.6V Max Charge Current 10A

Waterproof Battery to Battery 9-16V to 14.6V Max Charge Current 10A DC to DC Lithium LiFePO4 Battery Charger

12/24V to 14.6V DC to DC Battery Charger
Features Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Anti-shock protection, Ultra compact size, light weight.
  • Industry grade product 12/24v to 14.6v dc charger, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
Specification Divider
Technical Specifications
Series No. WMX-B2B14.6
Model No. WMX-B2B12S14.610
Product Name 12v to 14.6v dc to dc battery charger
Input Source 12V Lead Acid / LiFePO4 / Li-ion battery
Conversion Efficiency 96%
Charging voltage 14.6V DC
Charging current 10 Amps Max
ACC switch /
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 68
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 118*80*28mm
N. Weight 500g
Cooling way Free air convection
Applications DC-DC Charger, mainly applied for Lead acid, Li-ION or LiFePO4 Lithium Battery on RVs, exposed cars, campers, ships, etc.
Battery Charger Specifications Charger Dimensional Drawing
Model Divider Range Divider
MODEL IN-V IN-V Range OUT-V OUT-A Dimension-mm
12V TO 14.5V/14.6V SERIES
WMX-B2B12S14.605 12V 10-16V 14.6V 5A 118*80*28mm
WMX-B2B12S14.610 12V 10-16V 14.6V 10A 118*80*28mm
WMX-B2B12S14.505 12V 10-16V 14.5V 5A 118*80*28mm
WMX-B2B12S14.510 12V 10-16V 14.5V 10A 118*80*28mm
WMX-B2B12S14.615 12V 12.5-16V 14.6V 15A 150*130*50mm
WMX-B2B12S14.620 12V 12.5-16V 14.6V 20A 180*118*39 mm
WMX-B2B12S14.625 12V 12.5-16V 14.6V 25A 180*118*39 mm
WMX-B2B12S14.630 12V 12.5-16V 14.6V 30A 220*130*50mm
WMX-B2B12S14.640 12V 12.5-16V 14.6V 40A 220*130*50mm
WMX-B2B12S14.650 12V 12.5-16V 14.6V 50A 220*130*50mm
WMX-B2B12S14.660 12V 12.5-16V 14.6V 60A 220*130*50mm
WMX-B2B12S14.680 12V 12.5-16V 14.6V 80A 220*156*65mm
WMX-B2B12S14.6100 12V 12.5-16V 14.6V 100A 220*156*65mm
Product Diagram Usage Guide
Installation Divider FAQ Divider
Frequently Asked Questions
Q1 How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q2 What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
Q3 How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described due to a manufacturing defect, we will provide exchange services for the same item. Our support staff is always available to assist you.
Q4 What if we don't find what we need on your website? Do you provide customization?
Yes, we provide bespoke services based on specific requirements. You can send your detailed requirements via email, and we will check the feasibility. We develop new models regularly, some of which may not yet be listed on the website. Alternatively, you can send us samples for custom development.
Q5 Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to offer samples to test the quality and performance. We are confident in our product quality and believe that our excellent service and competitive pricing will make us your preferred choice for power supply solutions.
Q6 How can I order and make payment?
Once your requirements are clear and the ideal product is determined, we will send a pro-forma invoice to you. Payments can be arranged via bank transfer (TT), Western Union, or PayPal as preferred.
