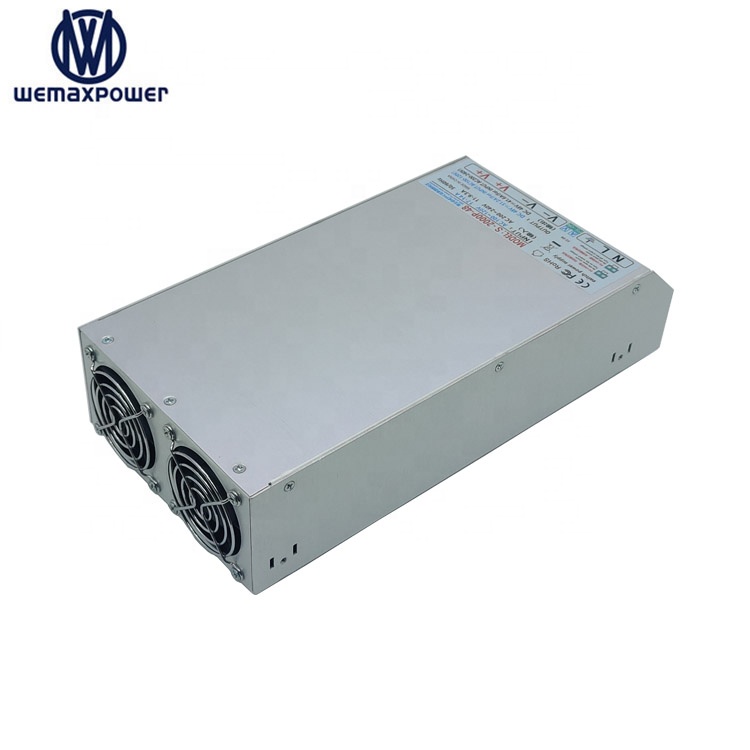

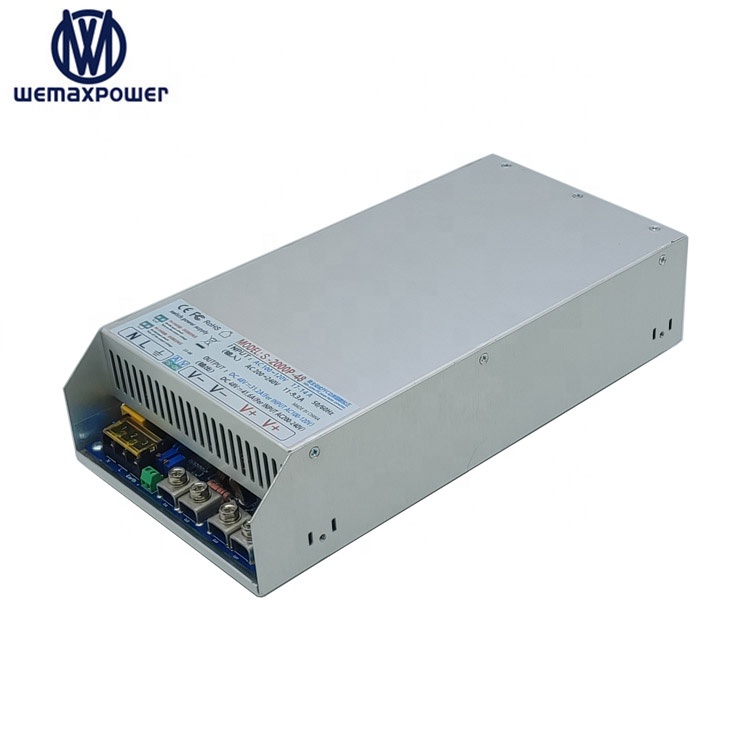

| 2000W Series Switching Power Supply with PFC | |
|---|---|
| Model | S-2000P-110V |
| DC output voltage | 110V |
| Output current | 18.2A |
| Output power | 2000W |
| Efficiency (Full load) | 91% |
| Range of voltage regulation |
74-110V
⚠️ Tip: If the output voltage is lowered, the maximum output current remains unchanged and the output power decreases. (Power = voltage * current)
|
| With Active PFC Power Factor Correction Function | |
|---|---|
| Input voltage | AC 100-240V (50Hz / 60Hz) |
| Power factor(PF) | PF value > 0.99 (at 100% full load) |
| Fan failure protection | Either of the two cooling fans does not rotate or the fan is not detected, and the power supply has no output voltage. |
| Over load protection | The overload protection mode is constant current limiting mode, which limits the output current value to remain unchanged and does not cause over-current output. The output voltage decreases as the load increases. |
| Overheat protection | When the internal temperature is too high, activate the overheat protection, turn off the output voltage, and automatically recover after the temperature drops. |
| Short Circuit Protection |
|
| Output overvoltage protection | The overvoltage point is 130% of the nominal voltage value. After overvoltage, the output is turned off and will not automatically recover. You need to turn off the power and power it back on to recover. |
| Under voltage protect | The AC input voltage is below 96V, and the power supply cannot be used |
| Heat dissipation | Temperature controlled automatic speed regulation fan (internal blowing mode, 2 fans) |
| Net Weight | 2.3kg |

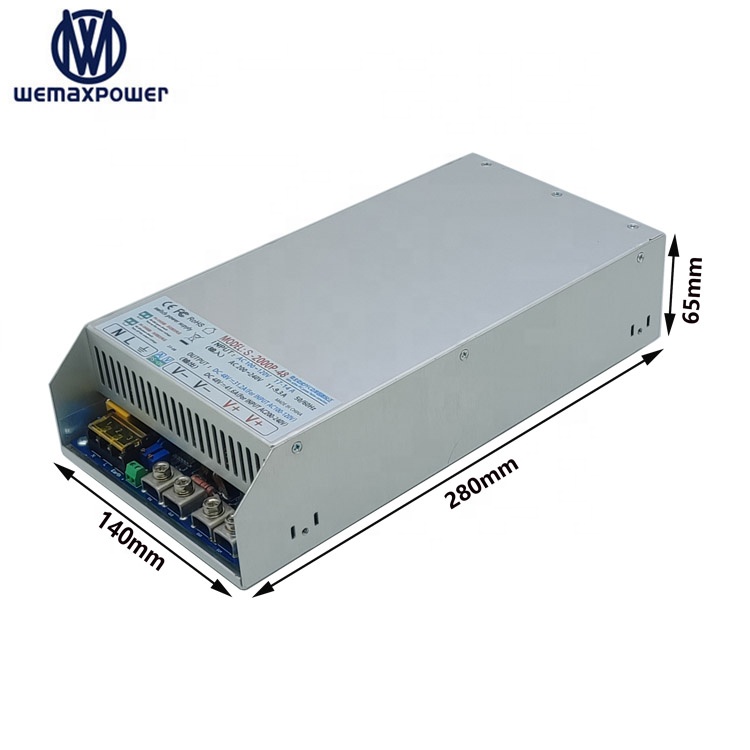

| Dimensions | 280mm * 140mm * 65mm (L* W* H) |
