| 2000W Series Switching Power Supply with PFC | |
|---|---|
| Model | S-2000P-72V |
| DC Output Voltage | 72V |
| Output Current | 27.8A |
| Output Power | 2000W |
| Efficiency (Full load) | 91% |
| Range of Voltage Regulation | 49-73V Tip: if the output voltage is lowered, the maximum output current remains unchanged and the output power decreases. (Power= voltage * current) |

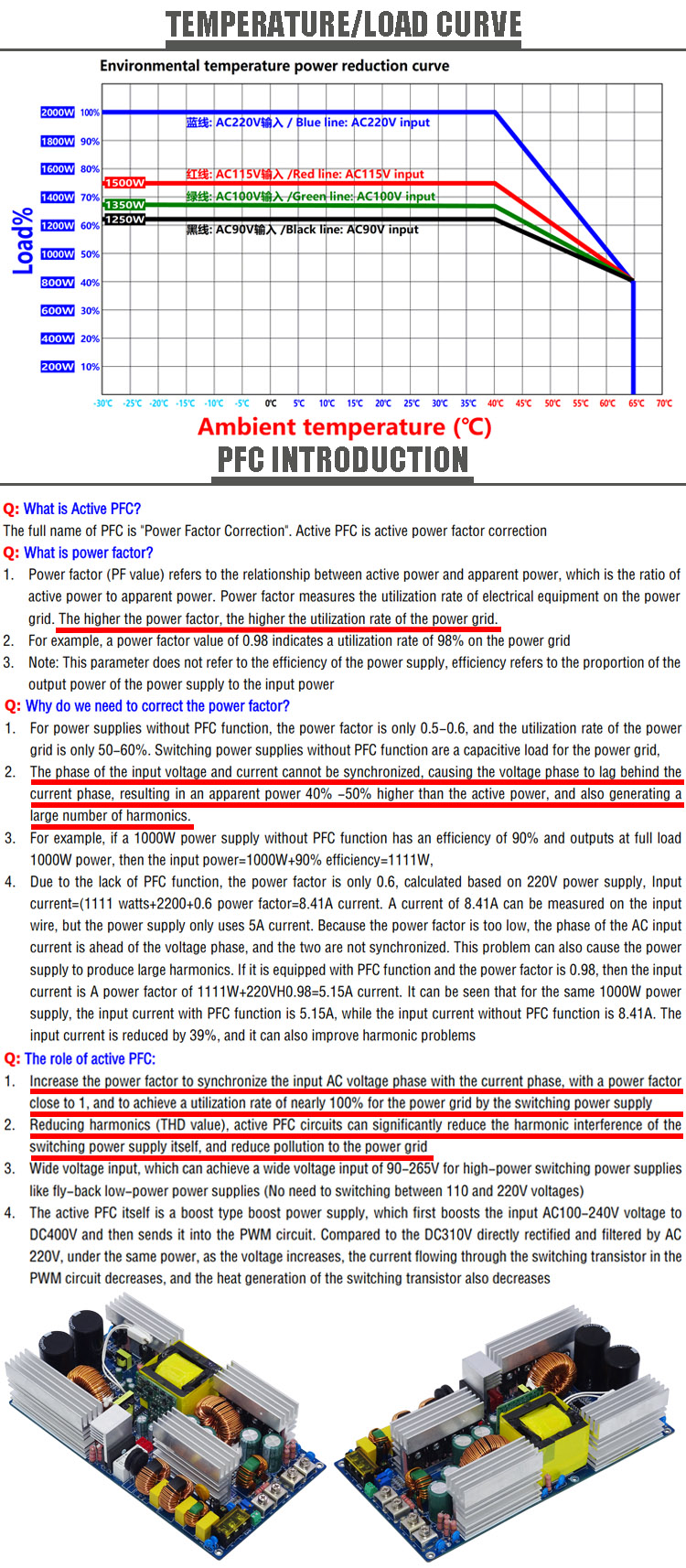

| With Active PFC Power Factor Correction Function | |
| Input Voltage | AC 100-240V (50Hz / 60Hz) |
| Power Factor (PF) | PF value > 0.99 (at 100% full load) |
| Fan Failure Protection | Either of the two cooling fans does not rotate or the fan is not detected, and the power supply has no output voltage. |
| Over Load Protection | The overload protection mode is constant current limiting mode, which limits the output current value to remain unchanged and does not cause over-current output. The output voltage decreases as the load increases. |
| Overheat Protection | When the internal temperature is too high, activate the overheat protection, turn off the output voltage, and automatically recover after the temperature drops. |
| Short Circuit Protection |
Short time instantaneous short circuit: turn off the output and automatically recover after 3 seconds Long term continuous short circuit: turn off the output, automatically restart once every 3 seconds (burping mode) |
| Output Overvoltage Protection | The overvoltage point is 130% of the nominal voltage value. After overvoltage, the output is turned off and will not automatically recover. You need to turn off the power and power it back on to recover. |
| Under Voltage Protect | The AC input voltage is below 96V, and the power supply cannot be used |

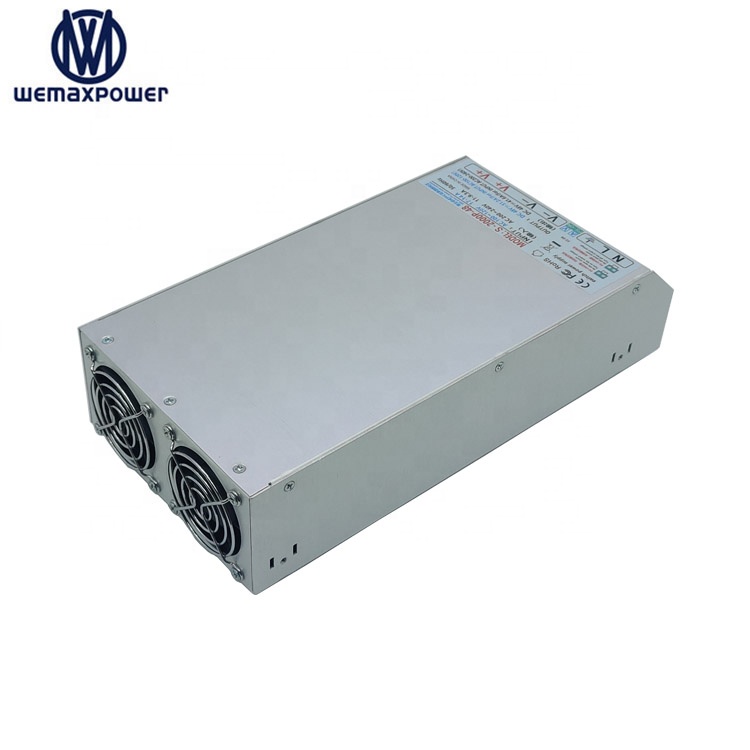

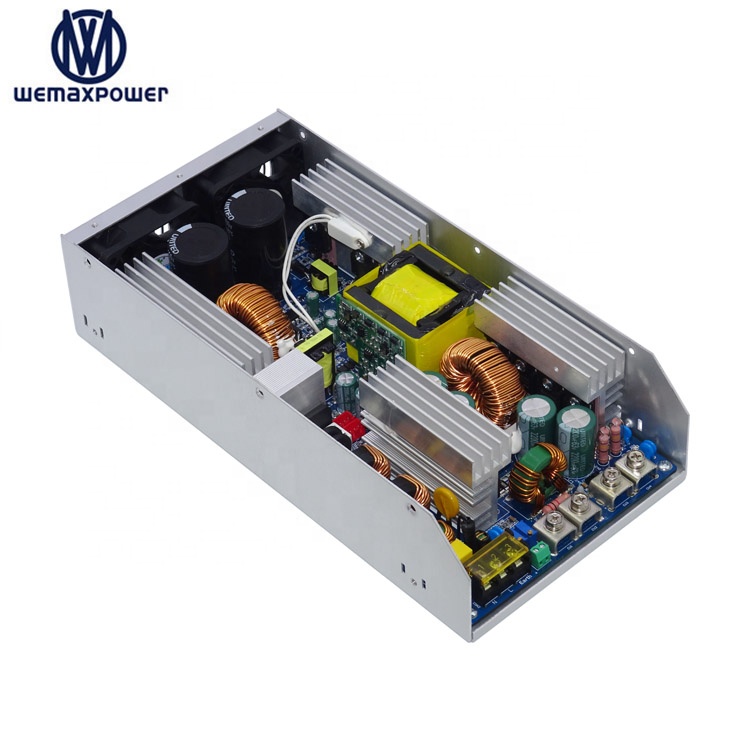

| Heat Dissipation | Temperature controlled automatic speed regulation fan (internal blowing mode, 2 fans) |
| Net Weight | 2.3kg |

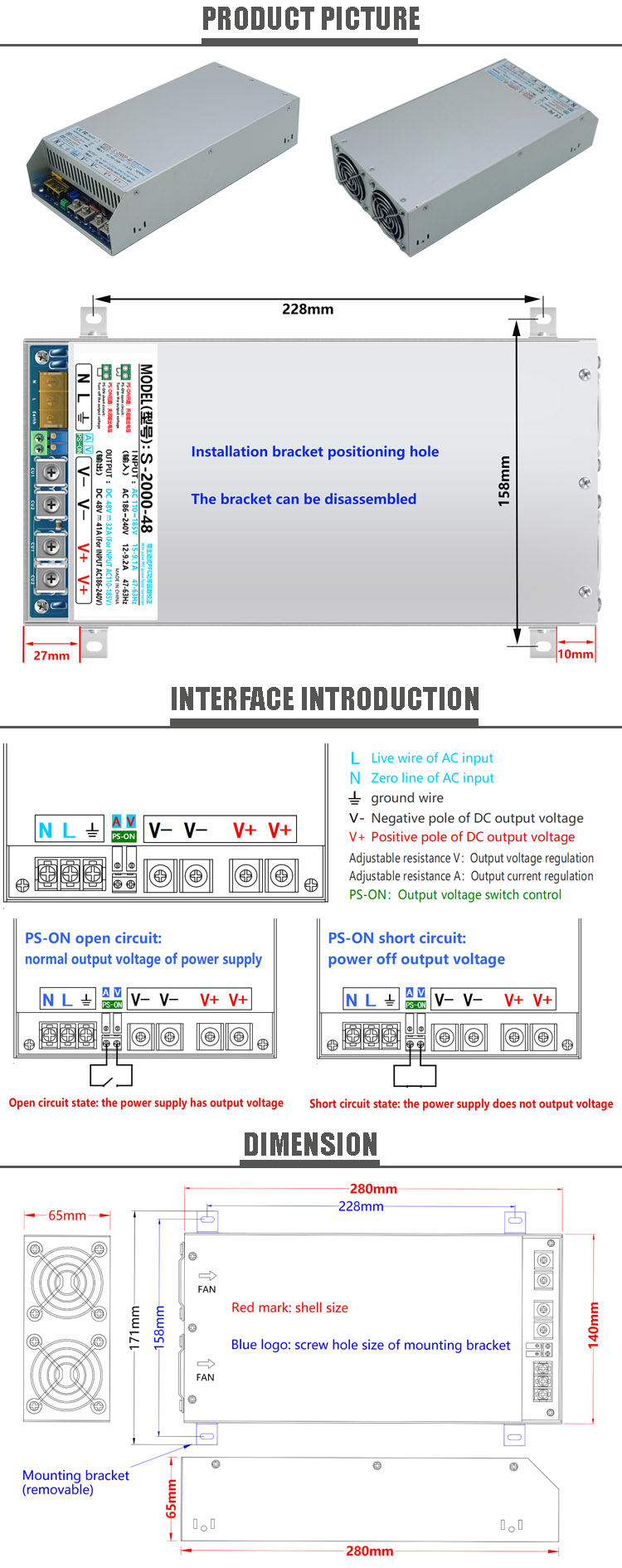

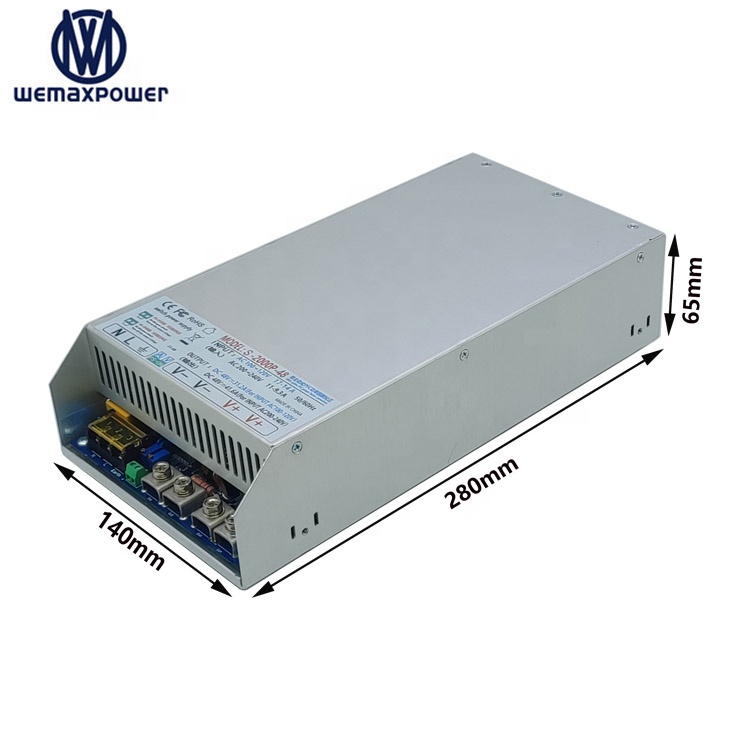

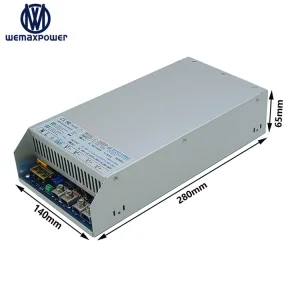

| Dimensions | 280mm * 140mm * 65mm (L* W* H) |
