| 2000W Series Switching Power Supply with PFC | |
|---|---|
| Model | S-2000P-60V |
| DC output voltage | 60V |
| Output current | 33.3A |
| Output power | 2000W |
| Efficiency (Full load) | 90.5% |
| Range of voltage regulation | 41-61V |
| Tip: If the output voltage is lowered, the maximum output current remains unchanged and the output power decreases. (Power = voltage * current) | |
| Active PFC Power Factor Correction Features | |
|---|---|
| Input voltage | AC 100-240V (50Hz / 60Hz) |
| Power factor (PF) | PF value > 0.99 (at 100% full load) |
| Fan failure protection | If either of the two cooling fans does not rotate or is not detected, the power supply shuts down the output voltage. |
| Over load protection | Constant current limiting mode, which limits the output current value to remain unchanged. The output voltage decreases as the load increases. |
| Overheat protection | When the internal temperature is too high, the system turns off the output voltage, and automatically recovers after the temperature drops. |
| Short Circuit Protection |
Short time: turns off the output and automatically recovers after 3 seconds. Long term: turns off the output, automatically restarts once every 3 seconds (hiccup mode). |
| Output overvoltage protection | The overvoltage point is 130% of the nominal voltage value. Output is shut down and requires power reset to recover. |
| Under voltage protect | If the AC input voltage is below 96V, the power supply cannot be used. |

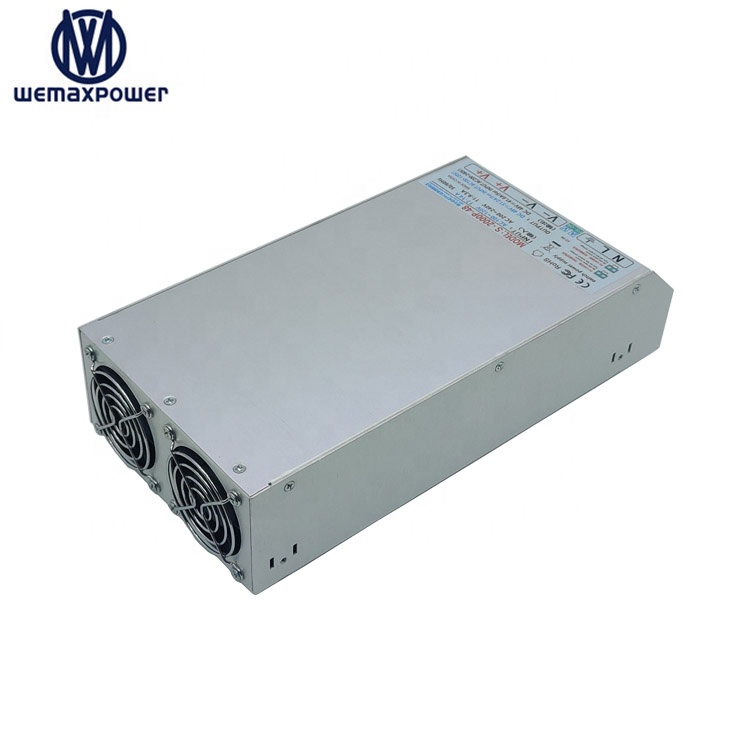

| Heat dissipation | Temperature-controlled automatic speed regulation fan (internal blowing mode, 2 fans). |
| Net Weight | 2.3kg |

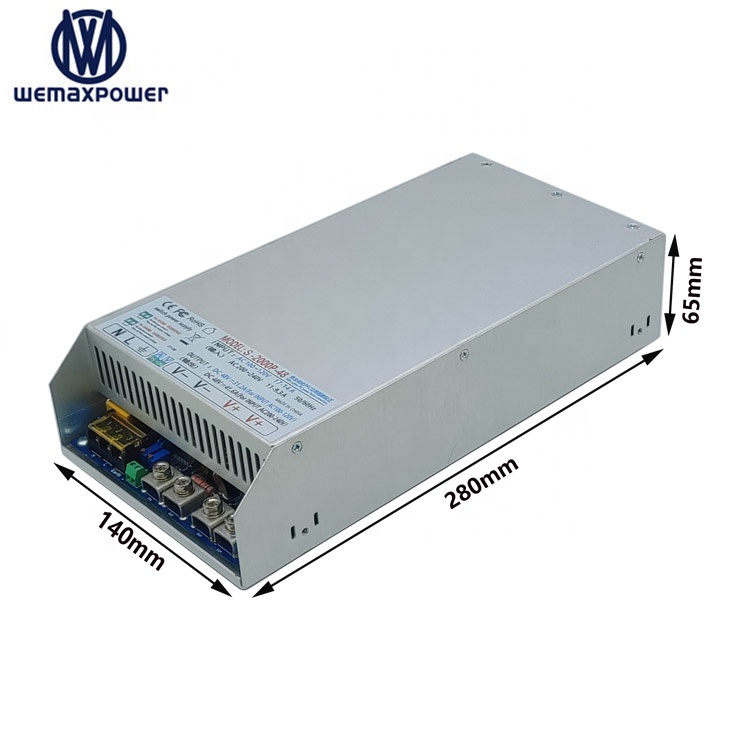

| Dimensions | 280mm * 140mm * 65mm (L * W * H) |
