| Parameter | Specification Details | |
|---|---|---|
| Model | WMX-B2B XX S YY ZZ | |

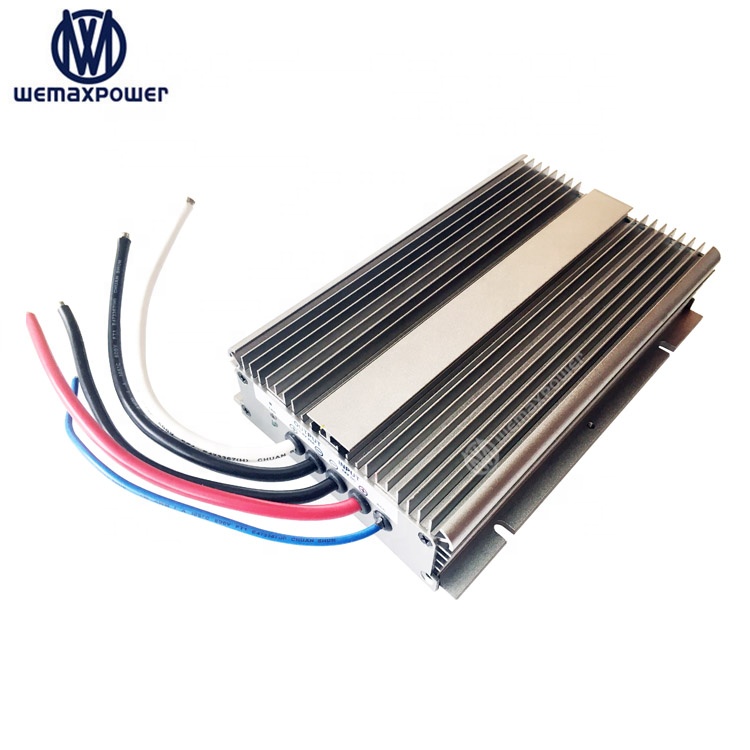

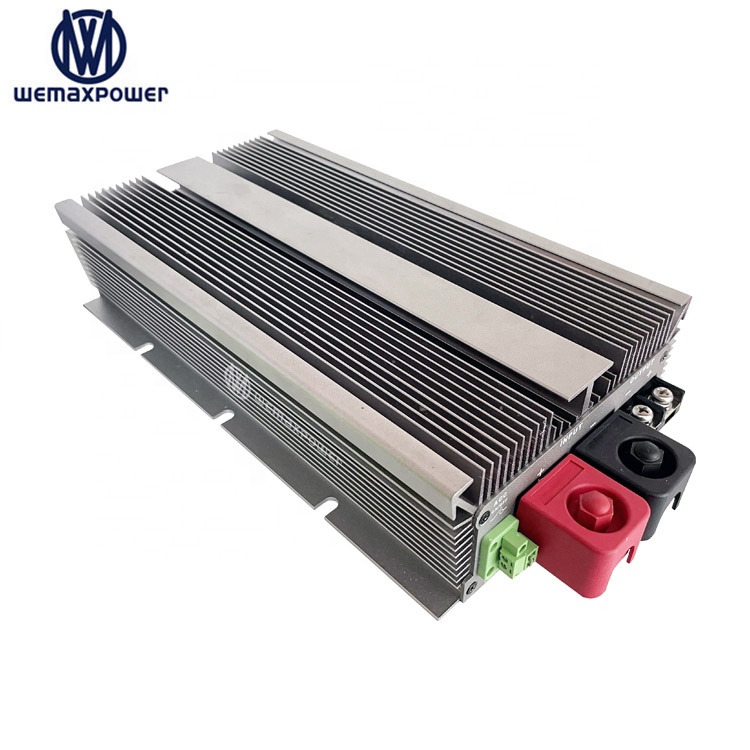

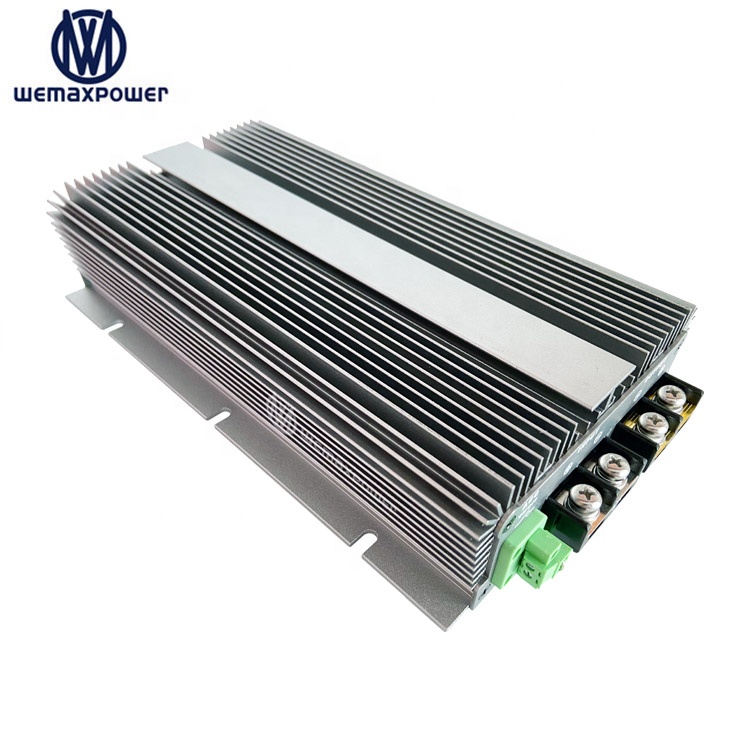

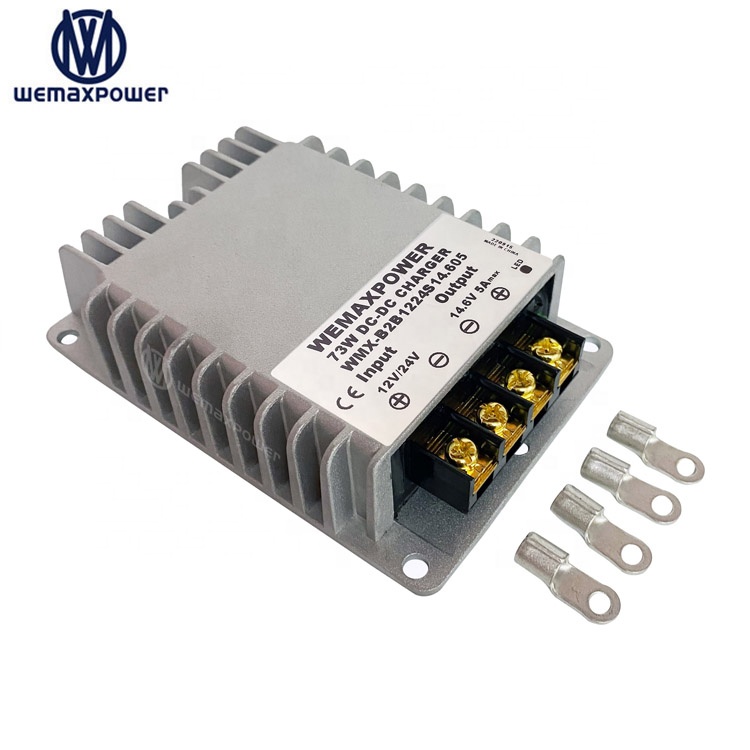

| Product Name | Vehicle DC to DC Battery Charger | |
| Input | Starter Battery Voltage (Input) | DC 12V |
| Input Voltage Range | 12V (Input range 12.5-16V) | |
| Starter Battery Type | GEL, Sealed, Flooded, LiFePO4, Lithium-ion | |
| Output | Output Voltage | DC 14.5V | 14.6V | 28V | 29.2V | 43.8V | 58V | 58.4V (Customizable voltage available) |
| Max Charge Current | 3A | 5A | 10A | 15A | 20A | 30A | 40A | 50A | 60A | 100A | 150A | |
| Max Output Power | Based on the maximum output charging current & voltage | |
| Main Battery Type | Lead Acid Battery | LiFePO4 Battery | Lithium-ion Battery | |
| ACC Function | Optional | |
| Voltage Regulation | ±1% | |
| Load Regulation | 2% | |
| Working Temperature | -35 ~ +80°C | |
| Working Humidity | 10% ~ 90% RH | |
| Storage Temperature | -40 ~ +85°C | |
| Protection Functions | Low voltage protection | Over temperature protection | Over voltage protection | |
| Waterproof Rating | IP68 (Charger body is waterproof; terminals are non-waterproof unless customized with direct wire output) | |
| Cooling Way | Free air convection | |
| Shell Material | Anti-corrosion aluminum shell | |

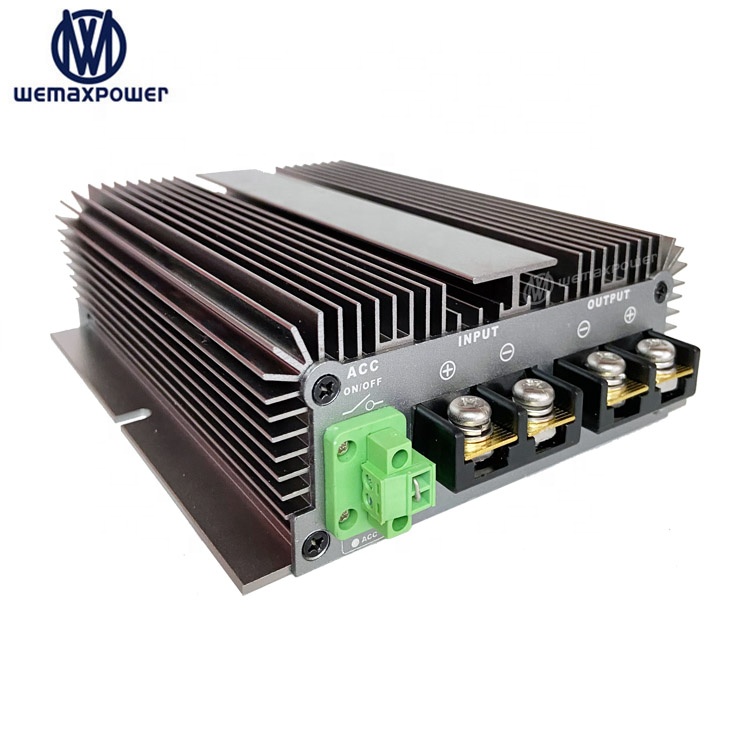

| Input & Output Connector | Terminal blocks (Wire output customizable) | |
| Dimensions | 118*80*28mm | 150*130*50mm | 180*118*39mm | 220*130*50mm | 220*156*65mm | 280*156*65mm | |
| Application | DC-DC Charger mainly applied for Lead Acid, Lithium-ion, or LiFePO4 batteries on RVs, campers, marine ships, etc. | |
