High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
1 / 5
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter
High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter

High Power Car Bus 24v to 24v 30a Dc Step up Down Module 24vdc to 24vdc Dc Voltage Stabilizer Buck boost Converter

Send Inquiry

Product Description

High Power Car Bus 12V 24V to 24V 30A DC Step Up Down 12VDC 24VDC to 24VDC DC Voltage Stabilizer Buck Boost Converter
24V DC Voltage Regulator
High Power Car Bus 24v to 24v 30a Dc Step up Down Module
Similar Products
Similar Products Overview
Product Description
Description Line
High quality components.
Full power, stable voltage & current output.
Wide input voltage range 18-36vdc.
Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast aluminum shell, epoxy potting.
Non-Isolated Module.
Divider Line
Specifications
Series No.WMX-D18-40D24
ModelWMX-DSD18-40S2430
Product Name24v buck boost converter
Input rated voltage24Vdc
Input voltage range18-40Vdc
Conversion Efficiency96%
Output voltage24Vdc
Output current30Amps
Output rated power720Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 150mV
No-load current< 20mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP67
ProtectionsOver-load, Over-current, Over-temperature, Over-voltage
Machine size100*80*39mm
N. Weight490g

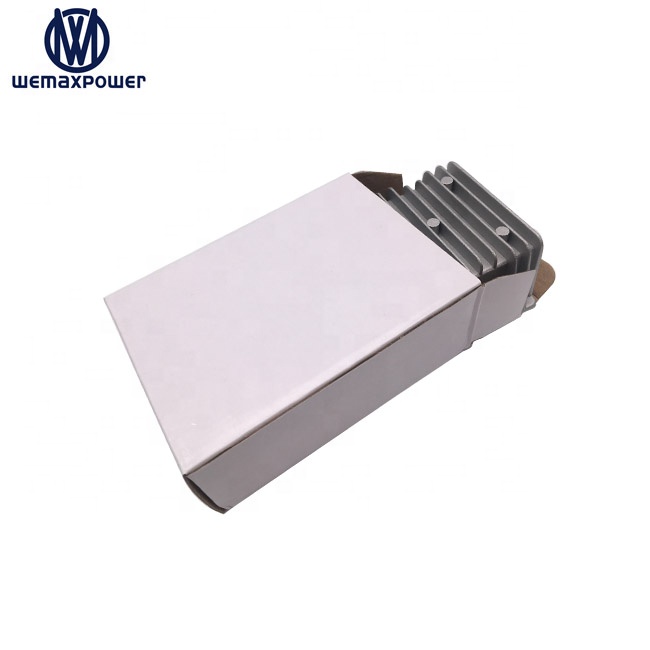

PackingWhite standard box
Divider Line

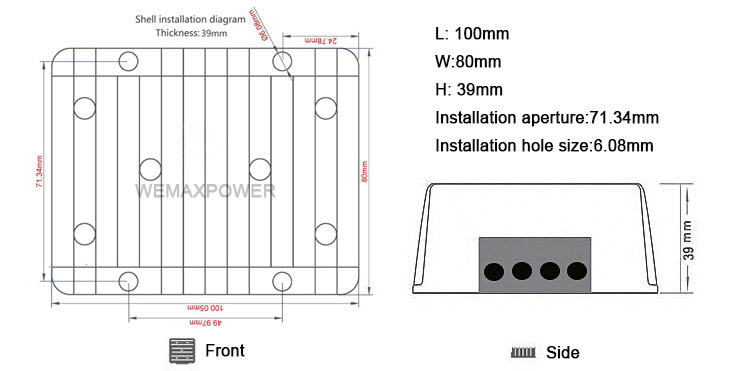

Detailed Dimensions
Divider Line

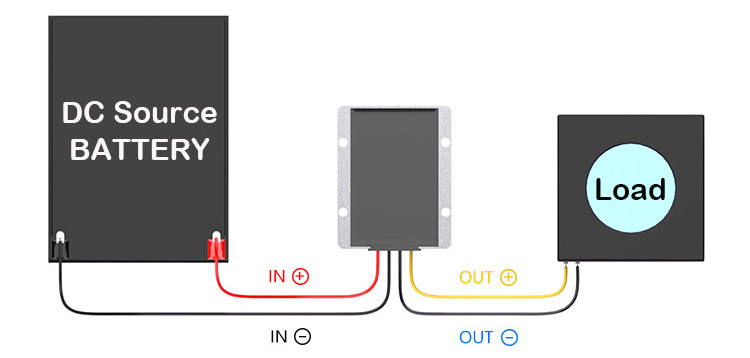

Product Display View 1 Product Display View 2
Divider Line
Internal Circuitry Production Process
Divider Line
Technical Layout
Divider Line
Frequently Asked Questions
Q: Why choose us?
A: We are a professional DC-DC converters manufacturer with more than 10 years of experience. The performance of our converters is highly stable, and our technology is updated annually to meet top industry standards.
Q: Is there any requirement for the load?
A: Yes, these DC-DC converters have a fixed voltage output, so they cannot be used for charging batteries directly. If you need to charge batteries, please select one of our dedicated DC-DC chargers.
Q: Why are other products cheaper than yours?
A: Many cheaper alternatives use lower-grade components which result in insufficient power output. Our products use high-quality imported components that reliably support continuous, long-term full load operation.
Q: What about your after-sales service?
A: We provide a 1-year warranty. We offer exchange options if any quality issues arise within the warranty period.
Q: What is the MOQ of the DC 24V voltage regulator?
A: We offer a low MOQ policy. Single-unit samples up to 5 units are available for testing purposes.
Q: What can you get from us?
A: You receive excellent products with unique design and strict quality control, outstanding services (including OEM, ODM, post-purchase services, fast delivery), and professional business consultation.
