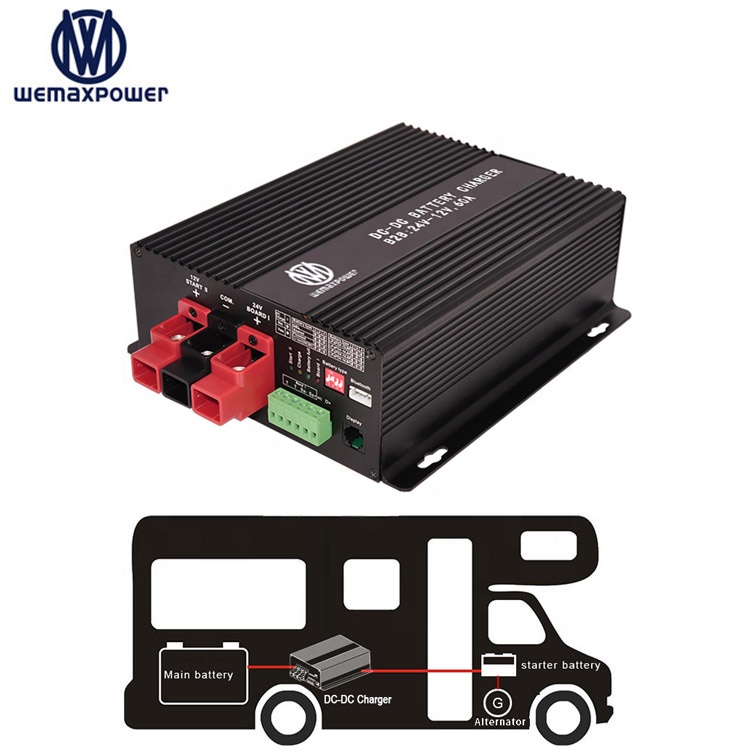

Charge converter, "Battery to Battery (B2T/BTB)" operation, mobile operation from alternator and starter battery (Battery to Battery):
| Model | WMX-B2B241260 |
| Input Specifications | |
| Vehicle Starter battery type | Lead acid / Lithium batteries |
| Vehicle Starter battery voltage | DC 24V (21~32V) |
| D+ signal voltage | 16-32V |
| Vehicle Starter battery capacity | 80ah ~100ah |
| Output Specifications | |
| Auxiliary/Main battery type | GEL (14.3V), Sealed (14.4V), Flooded (14.7V), LiFePO4 (14.6V), Lithium-ion (12.6V) |
| Auxiliary/Main battery voltage | 12V |
| Max charge current | 60A |
| System Specifications | |
| Working mode | Battery to battery mode |
| Charge process | CC, CV, Trickle/float |
| DIP Switch | Select the required battery type through DIP switch to charge |
| Stand-by current | 16+/-2mA |
| Waterproof grade | IP34 |
| Protection | Over charge, over current, over voltage protection |
| Operating temperature | -20-50°C |
| Dimension | 190*215*70mm |
| Net weight | 1.6kg |

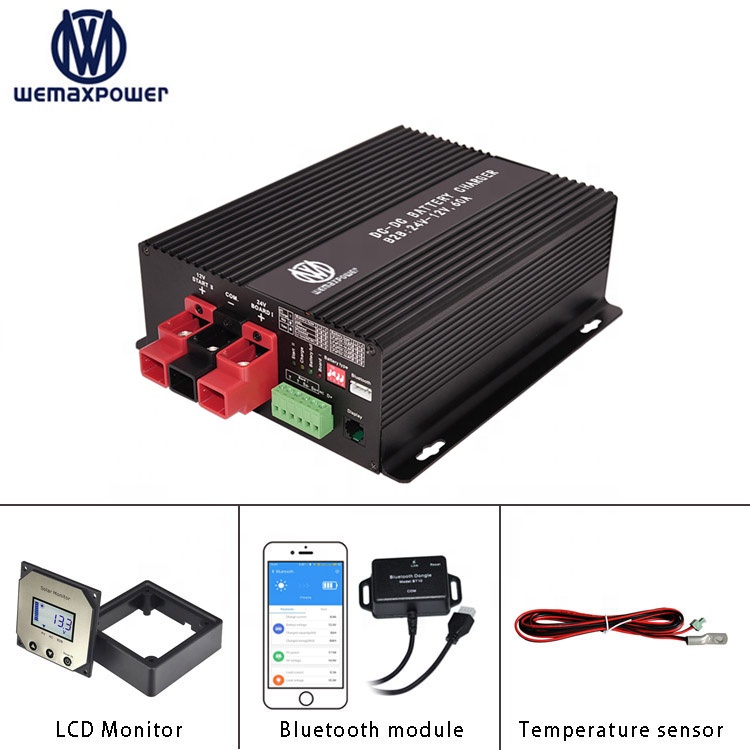

| Accessories (Pay additional cost if needed) |
LCD Monitor (MT-2)Optional
Bluetooth module (BT10)Optional
Temperature sensor (TRS)Optional
|
