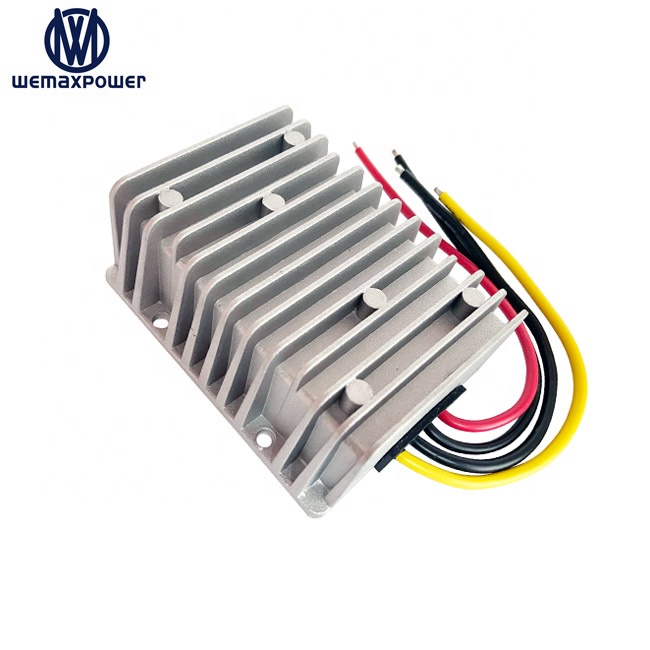

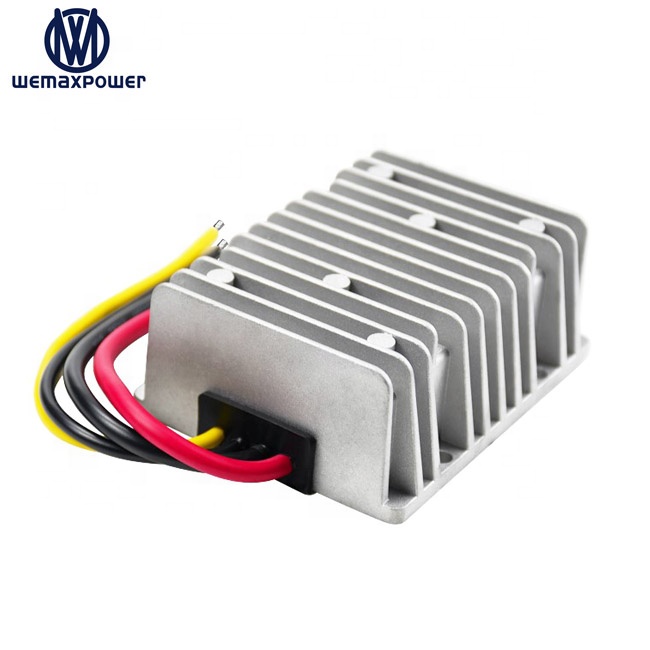

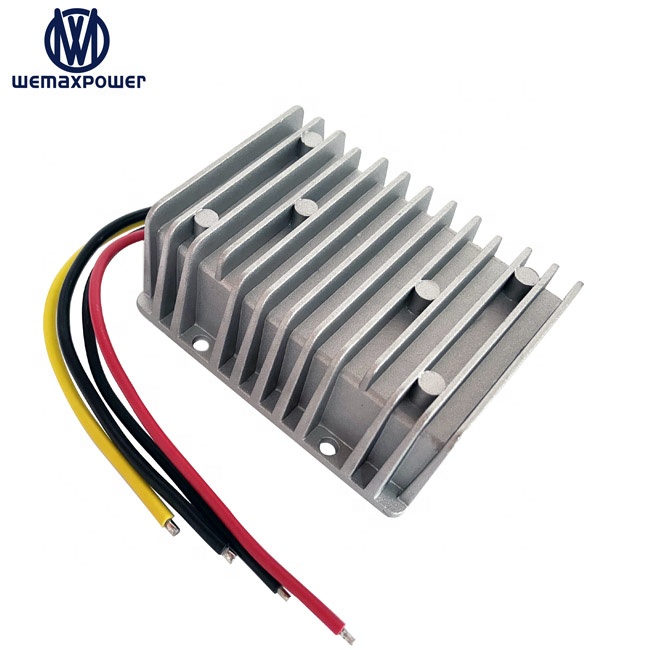

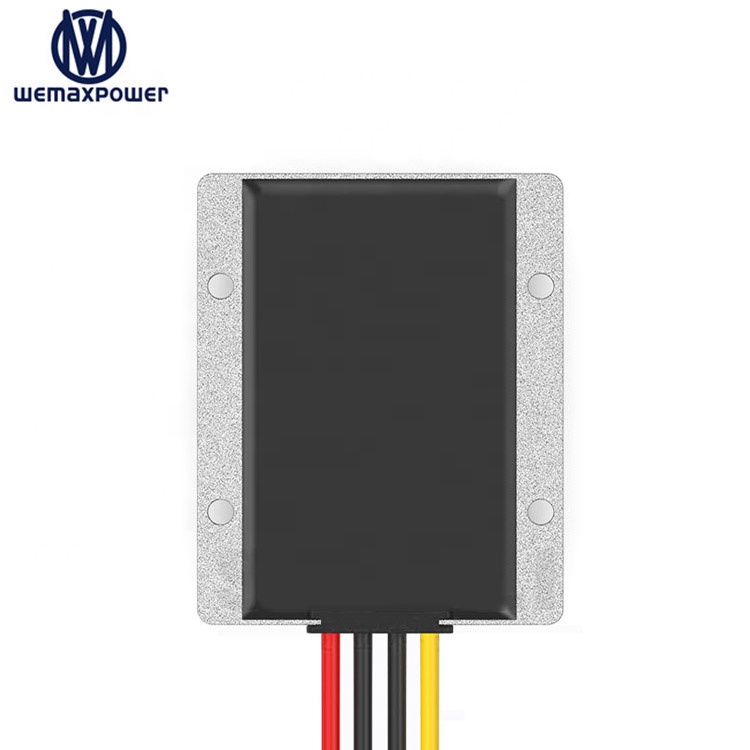

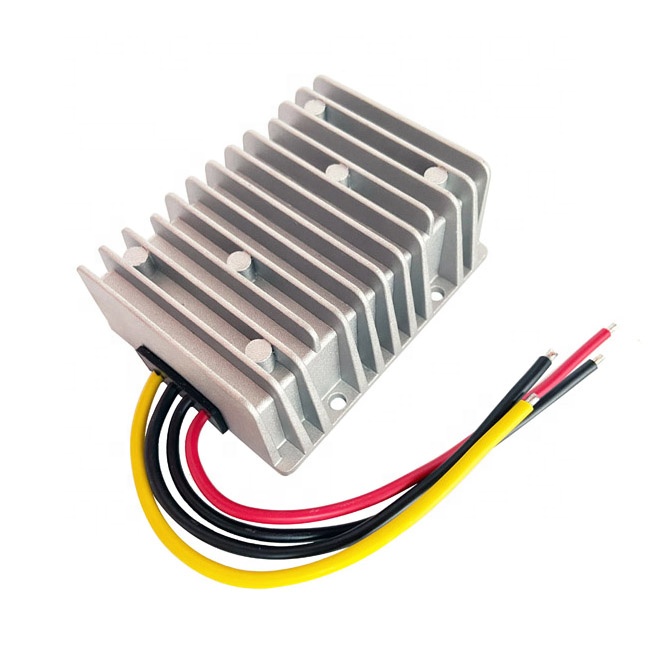

Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
1 / 5
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator
Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator

Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator

Send Inquiry

Product Description

Step Up Down Voltage Stabilizer 12VDC 24VDC to 12VDC 25A DC Converter

12V DC Voltage Regulator

Step up Down Voltage Stabilizer 12vdc 24vdc to 12vdc 25A Dc Converter 12v Dc Voltage Regulator

Similar Products

Similar DC-DC Voltage Regulator Products

Product Features

✓ High quality components
✓ Full power, stable voltage & current output
✓ Wide input voltage range 8-40Vdc
✓ Waterproof IP67 & anti-shock protection, Ultra compact size, light weight
✓ Industry grade 12V buck boost converter, efficiency up to 96%
✓ Die-cast aluminum shell, epoxy potting
✓ Non-Isolated Module

Specifications

Parameter Details
Series NO. WMX-D8-40D12
Model NO. WMX-DSD8-40S1225
Product Name 12v dc voltage regulator
Input rated voltage 12Vdc/24Vdc
Input voltage range 8-40Vdc
Conversion Efficiency 96%
Output voltage 12Vdc
Output current 25A
Output rated power 300W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Cooling way Free air convection
Packing White standard box

Detailed Displays

Product detail view 1
Product detail view 2
Product detail view 3
Product detail view 4
Product detail view 5
Product detail view 6
Product detail view 7

Frequently Asked Questions

Q: Why choose our DC-DC converters?
A: We are an experienced DC-DC converter manufacturer with over 10 years of expertise. Our products deliver exceptionally stable performance, utilizing technology updates year after year.
Q: Is there any specific load requirement for these converters?
A: Yes, these DC-DC converters are designed with a fixed voltage output, meaning they cannot be used to charge batteries directly. If you require battery charging functionality, please choose our specialized DC-DC battery chargers.
Q: Why are some other products on the market cheaper?
A: Many low-cost suppliers use inexpensive components, resulting in units that cannot deliver their rated power. Our converters are engineered with high-quality imported components to support sustained, long-term full load operation.
Q: What type of after-sales service and warranty do you offer?
A: We offer a 1-year warranty period. In the event of any quality issues within this period, we provide product exchange services.
Q: What are the supported payment methods and shipping options?
A: We accept payment via T/T, L/C, Western Union, MoneyGram, and PayPal. For logistics, we arrange shipping via reliable carriers including DHL, UPS, FedEx, TNT, EMS, and sea freight.
Q: What is the Minimum Order Quantity (MOQ) for this 12v dc voltage regulator?
A: We support low MOQ requirements. Sample testing is available with orders of just 1 to 5 units.
