| Series NO. | WMX-D8-40D13.8 |
| Model NO. | WMX-DSD8-40S13.820 |

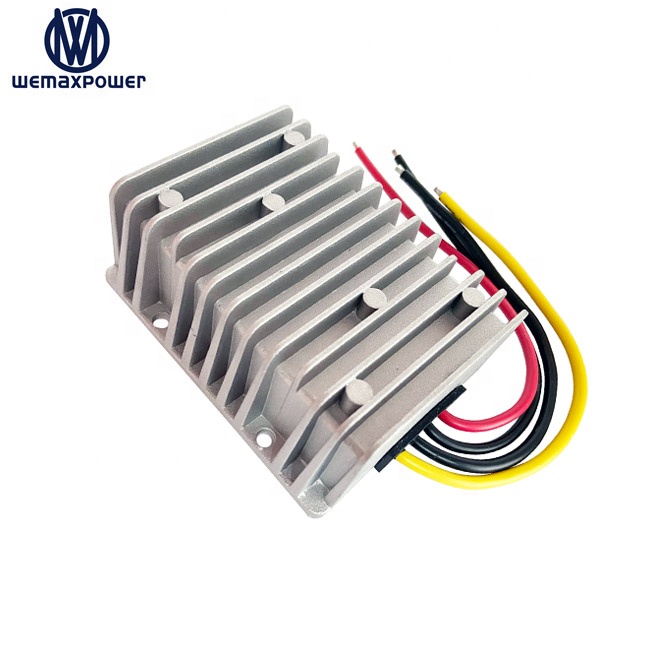

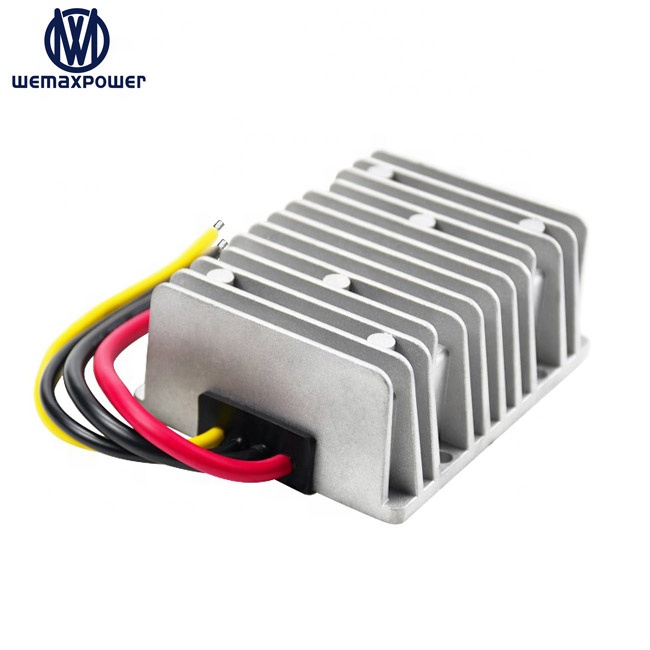

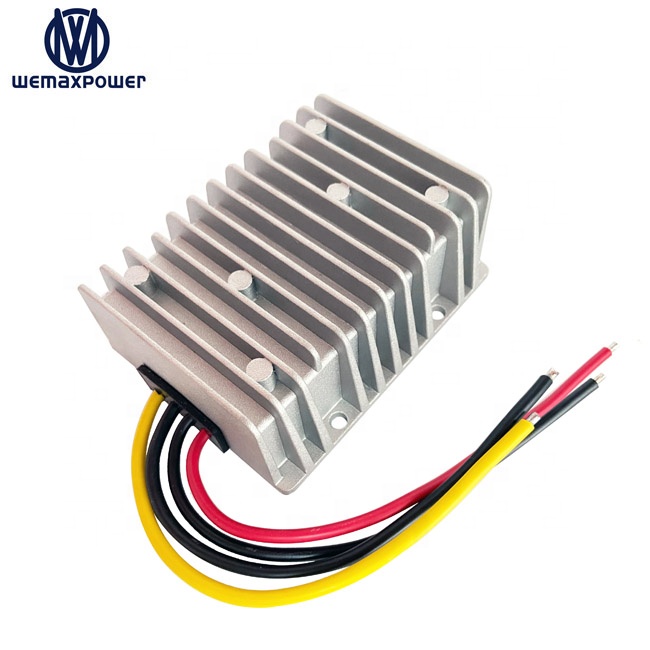

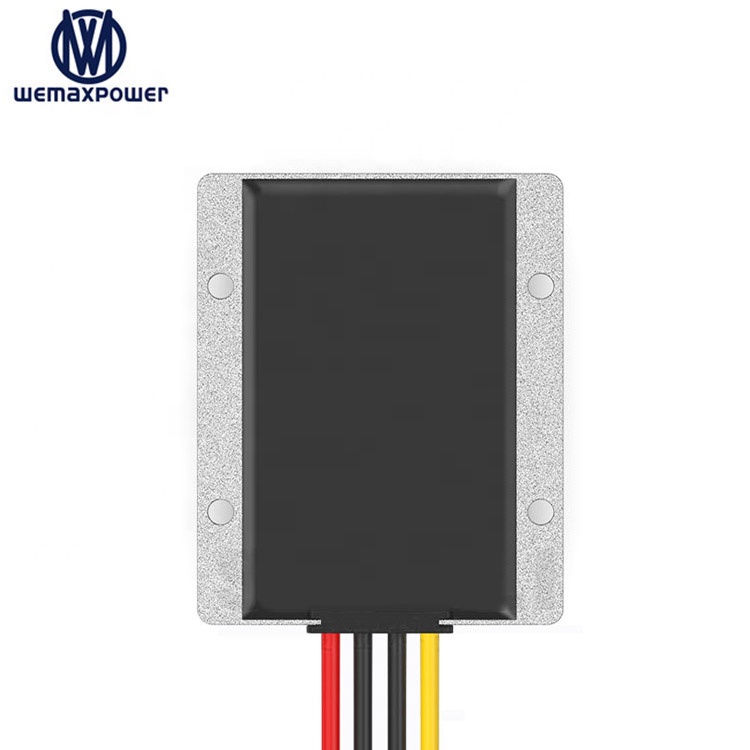

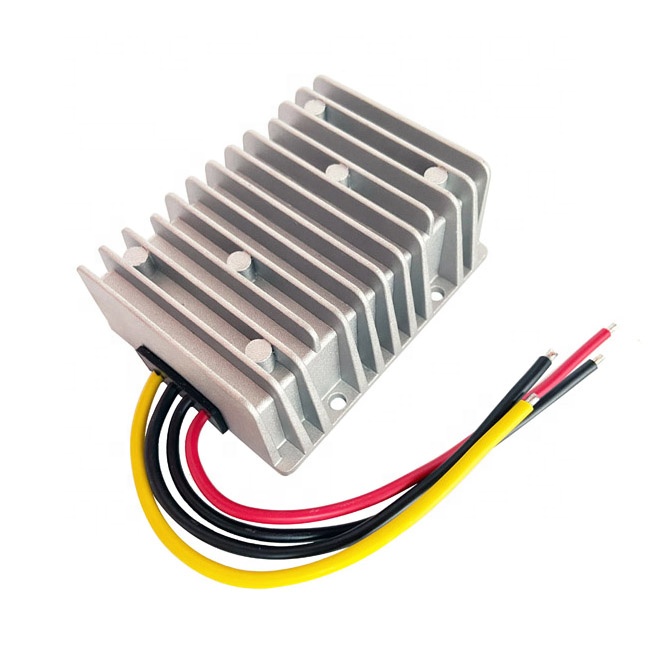

| Product Name | 13.8v boost buck converter |
| Input rated voltage | 12Vdc / 13.8Vdc / 24Vdc |
| Input voltage range | 8-40Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 13.8Vdc |
| Output current | 20A |
| Output rated power | 276W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 100*80*39mm |
| N. Weight | 490g |
| Cooling way | Free air convection |
| Packing | White standard box |
