Wemax Power
1 / 5
| Series No. | WMX-D8-40D12 |
| Model No. | WMX-DSD8-40S1215 |

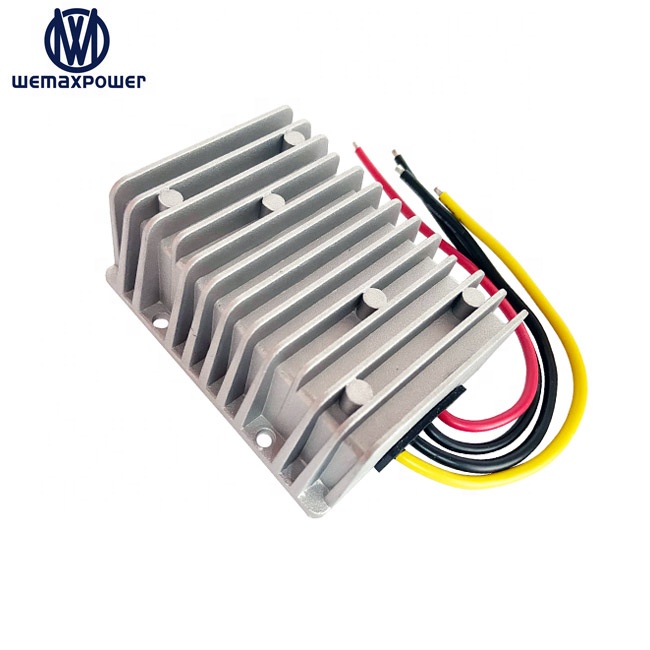

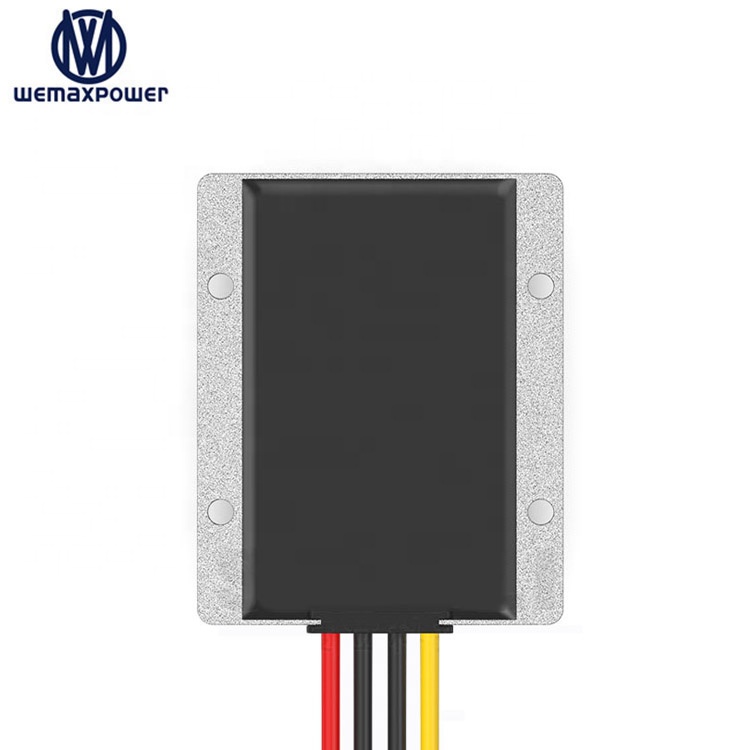

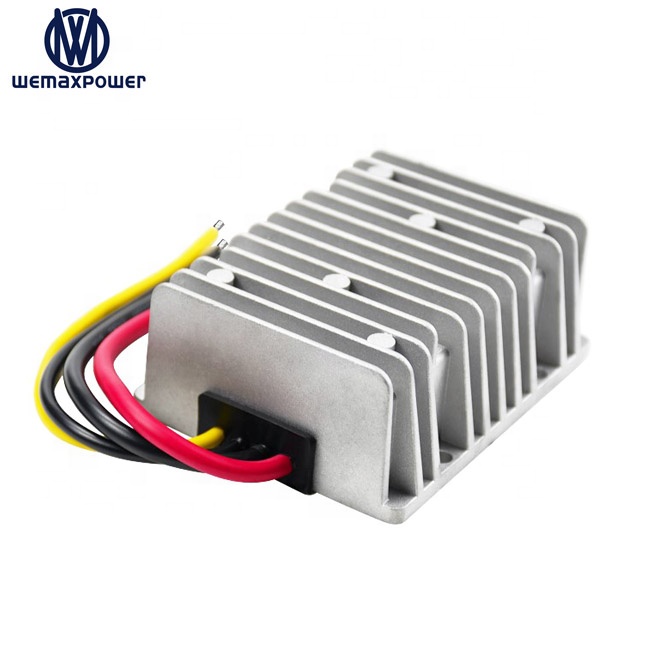

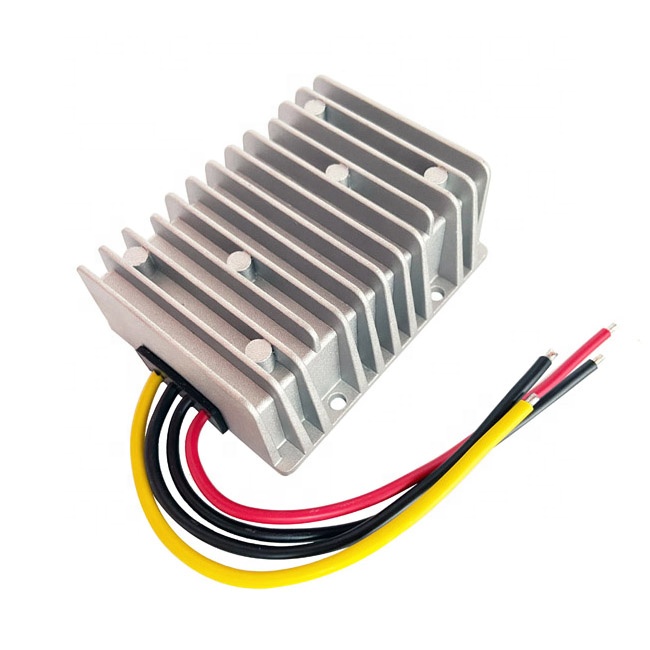

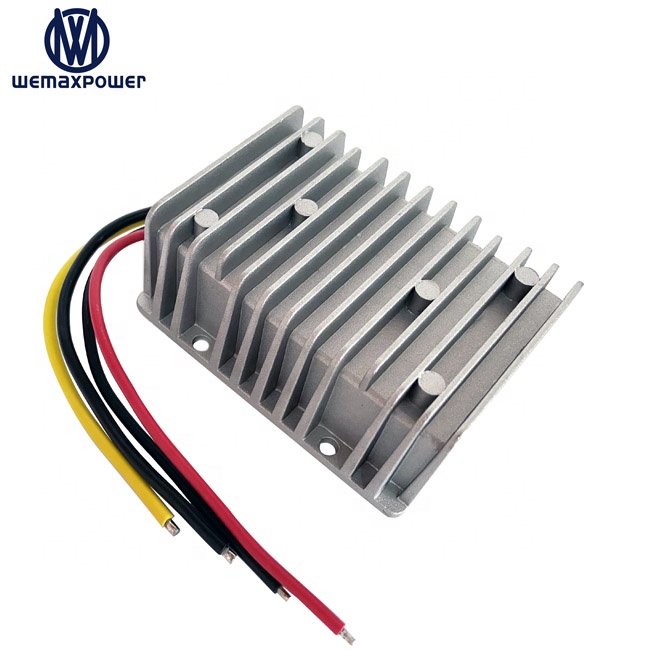

| Product Name | 12v dc voltage regulator |
| Input rated voltage | 12/24Vdc |
| Input voltage range | 8-40Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 12Vdc |
| Output current | 15A |
| Output rated power | 180W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 100*80*39mm |
| N. Weight | 490g |
| Cooling way | Free air convection |
| Packing | White standard box |
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, and we will check if we can develop them. We develop new models every month, some of which may not yet be updated on our website. Alternatively, you can send us samples and we can develop the new models especially for you.
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be highly satisfied. With our excellent service and competitive pricing, we believe we will be your ideal choice for power supply solutions.
Different products have different MOQs. Generally speaking, our MOQ is 1~2pcs. Please feel free to check with us for specific items.
