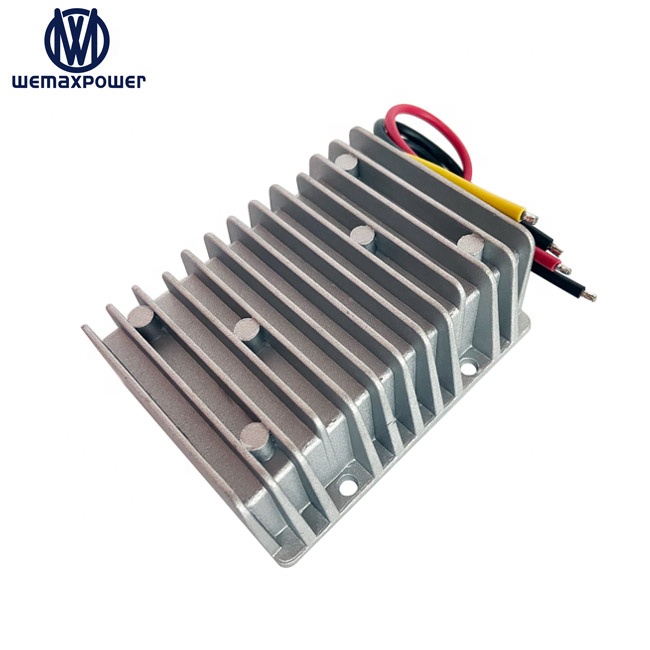

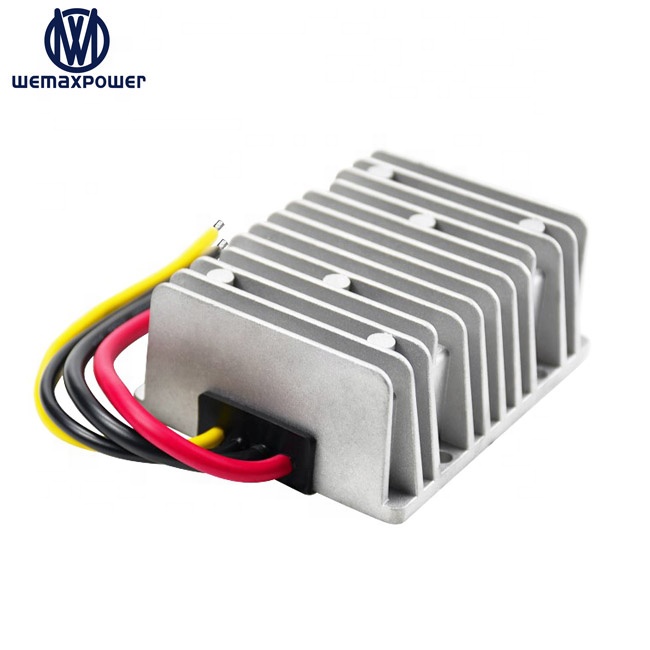

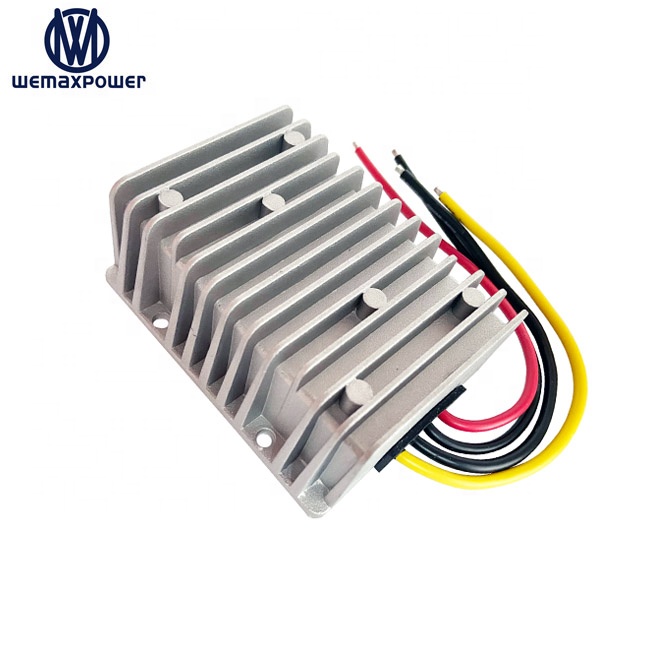

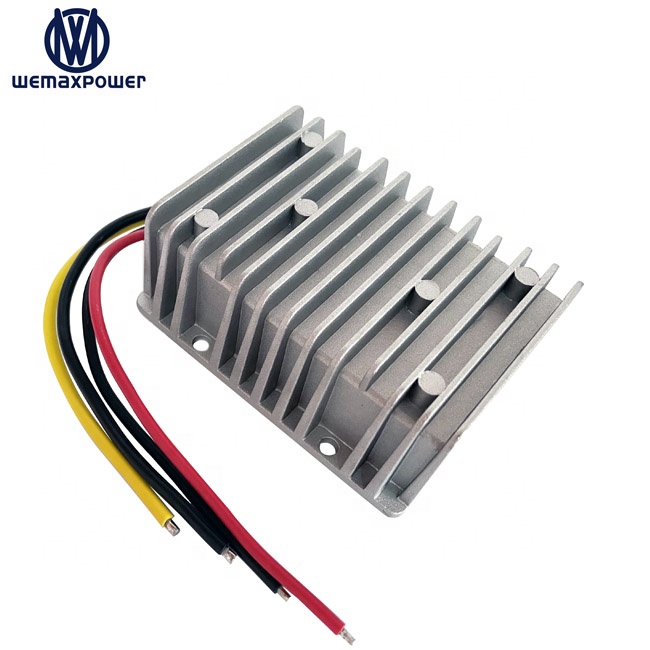

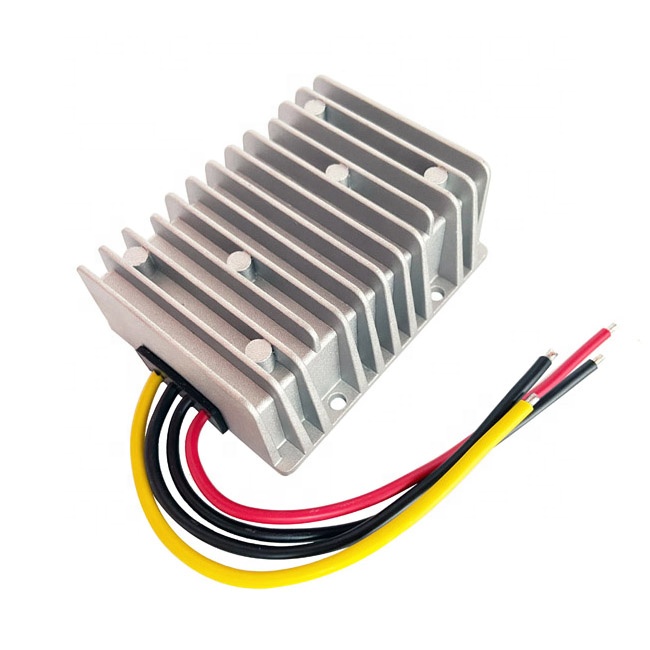

Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
1 / 5
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter
Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter

Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter

Send Inquiry

Product Description

Waterproof 18-40v input range car step up down 20a 24v to 24v voltage regulator 24vdc 20amp dc-dc buck boost converter

Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter Waterproof 18-40v Input Range Car Step up Down 20a 24v to 24v Voltage Regulator 24vdc 20amp Dc-dc Buck boost Converter

24v to 24v 20a converter

Features
Ø High quality components.
Ø Full power, stable voltage & current output.
Ø Wide input voltage range.
Ø Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
Ø Industry grade product, efficiency up to 96%.
Ø Die-cast aluminum shell, epoxy potting.
Ø Non-Isolated Module.
Specifications
Series No. WMX-D18-36D24
Model No. WMX-DSD18-40S2420
Product Name 24v to 24v dc dc converter
Input rated voltage 24Vdc
Input voltage range 18-40Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 20A
Output rated power 480W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Cooling way Free air convection
Packing White standard box
Divider Product drawing Divider Product display Divider Wiring diagram Divider Product detailed application Divider Testing Product details infographic Divider Factory production Divider Packaging FAQ Header
Frequently Asked Questions
How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.
If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.
Can I buy 1 or 2 pieces of samples for testing before place bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.
What is your Minimum Order Quantity?
Different products have different MOQ, generally speaking, our MOQ is 1~2pcs, please don't hesitate to check with us for specific items.
