Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter

Product Description

Waterproof 8-40v 12/24v 12vdc 24vdc voltage step up down dc12v dc regulator 6a 12v 24v to 12v boost buck converter

Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter

12/24v to 12v 6a dc/dc converter

Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product , efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Divider
Series No. WMX-D8-40D12
Model No. WMX-DSD8-40S1206
Product Name 12/24v to 12v 6a dc-dc converter
Input rated voltage 12/24Vdc
Input voltage range 8-40Vdc
Conversion Efficiency 96%
Output voltage 12Vdc
Output current 6A
Output rated power 72W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage

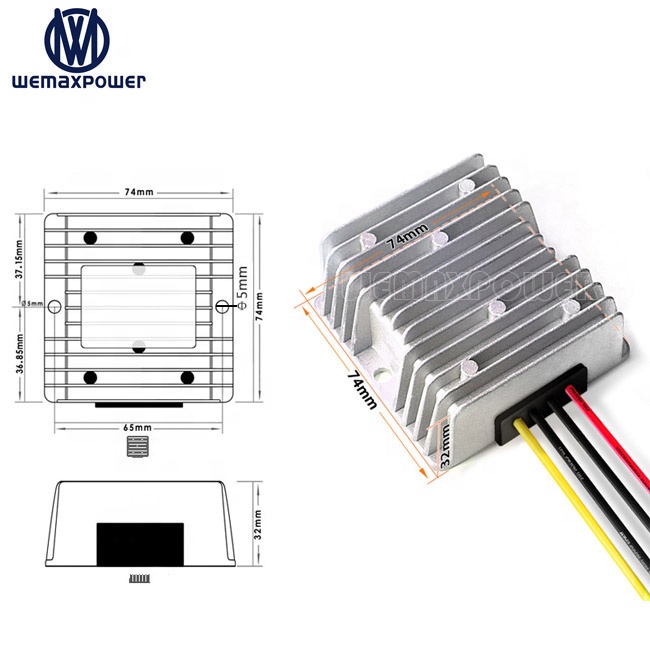

Machine size 74*74*32mm
N. Weight 290g
Cooling way Free air convection
Packing White standard box
Divider Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter Divider

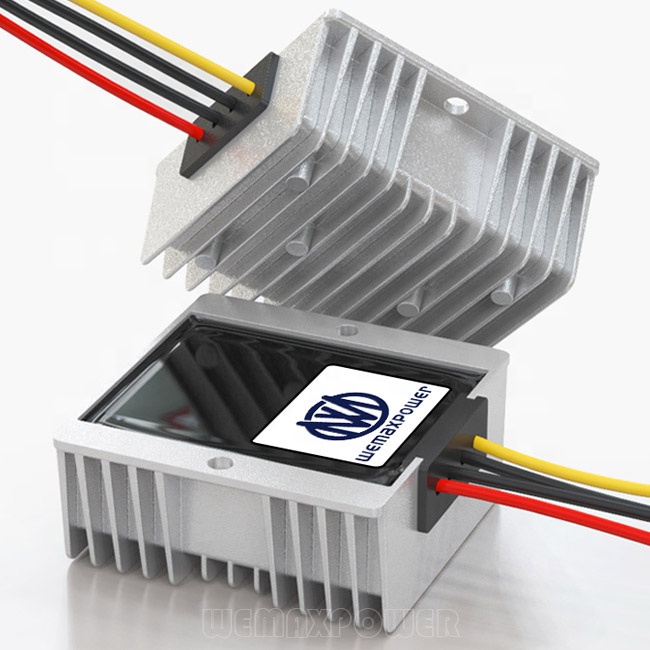

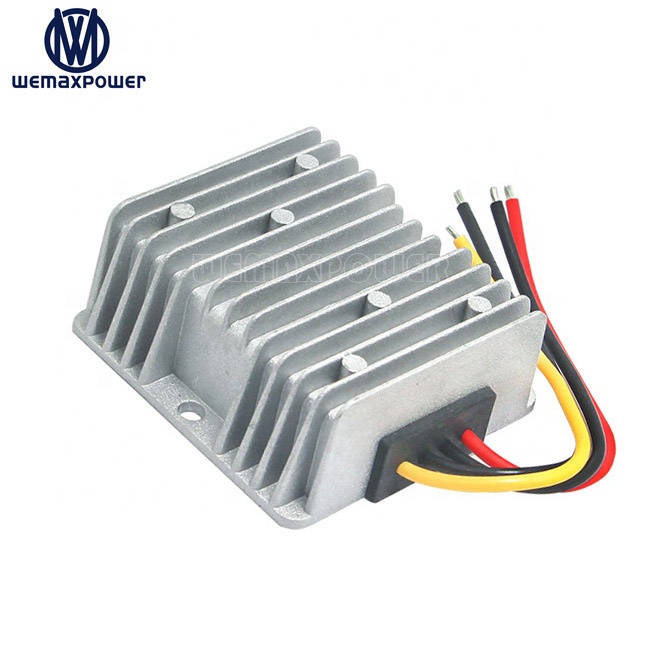

Waterproof boost Buck Converter details 1
Waterproof boost Buck Converter details 2
Divider Divider Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter Divider

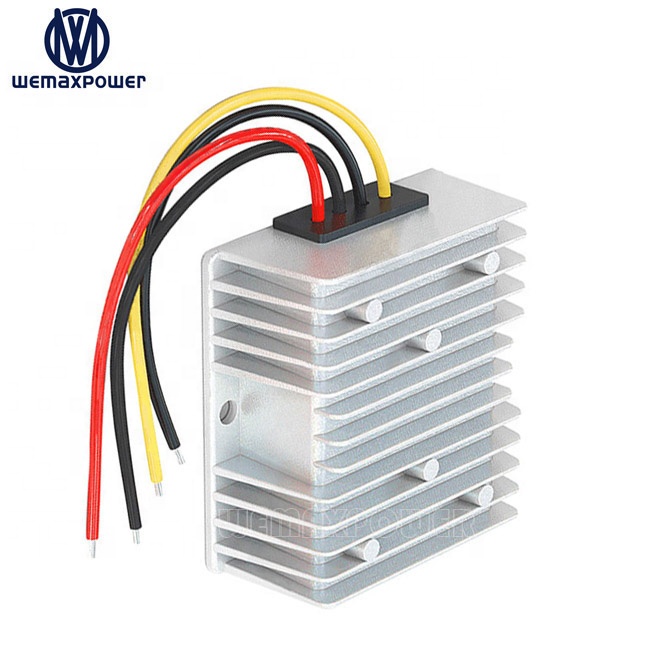

Waterproof boost Buck Converter details 3

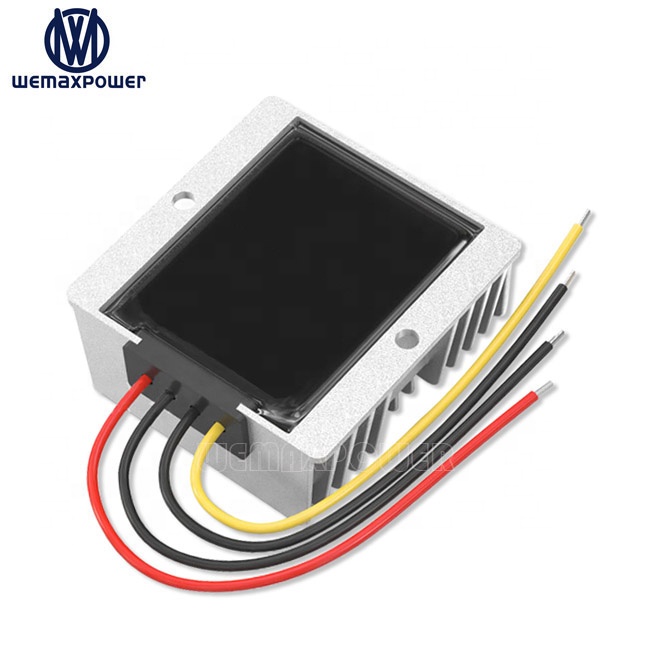

Waterproof boost Buck Converter details 4
Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter Divider Waterproof 8-40v 12/24v 12vdc 24vdc Voltage Step up Down Dc12v Dc Regulator 6a 12v 24v to 12v boost Buck Converter Divider
FAQ Divider
FAQ

Q1. How we work?

Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q2. What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q3. How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our support team will always be there for you if anything is needed.

Q4. Do you make customize service as per customer's specific requirements?

Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.

Q5. Can I buy 1 or 2 pieces of samples for testing before place bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.

Q6. What is your Minimum Order Quantity?

Different products have different MOQ, generally speaking, our MOQ is 1~2pcs, please don't hesitate to check with us for specific items.
