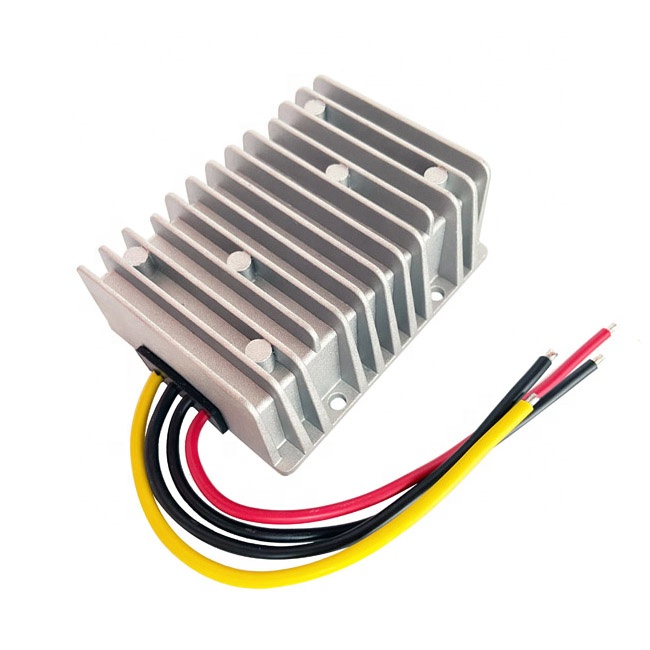

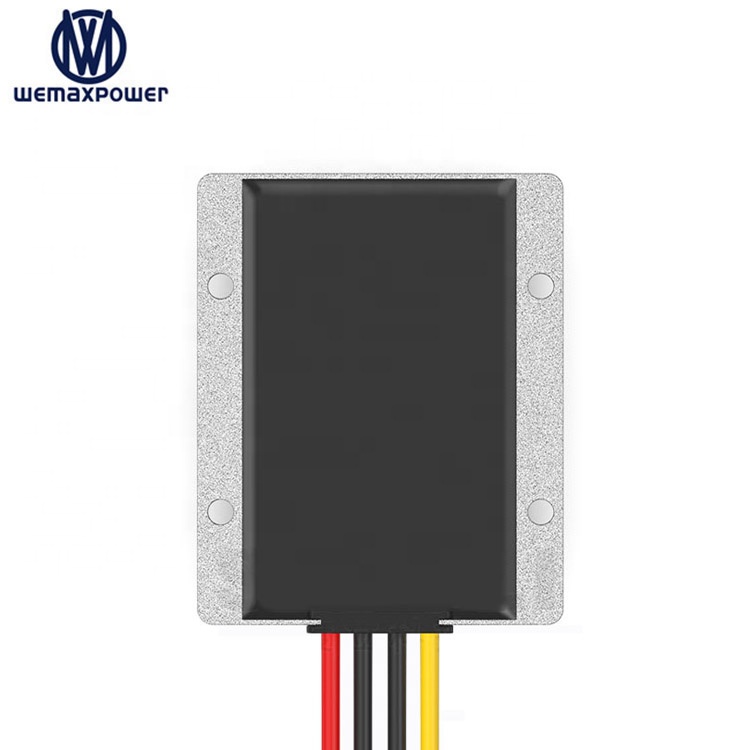

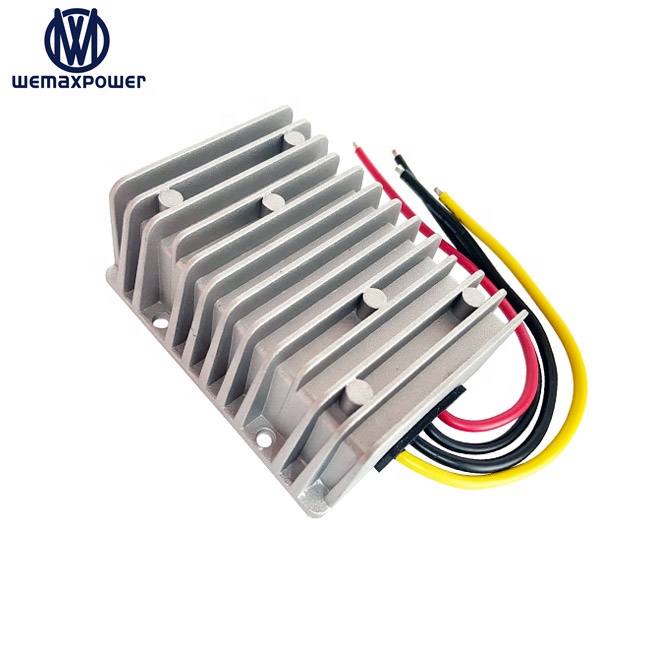

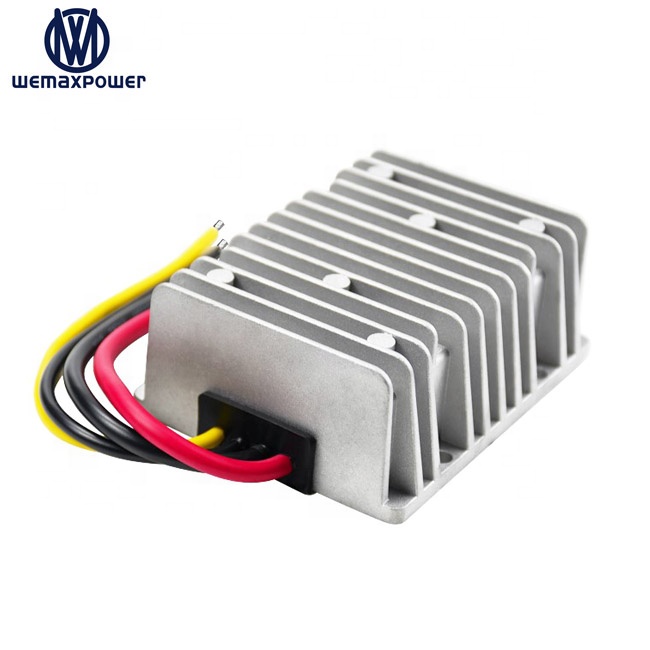

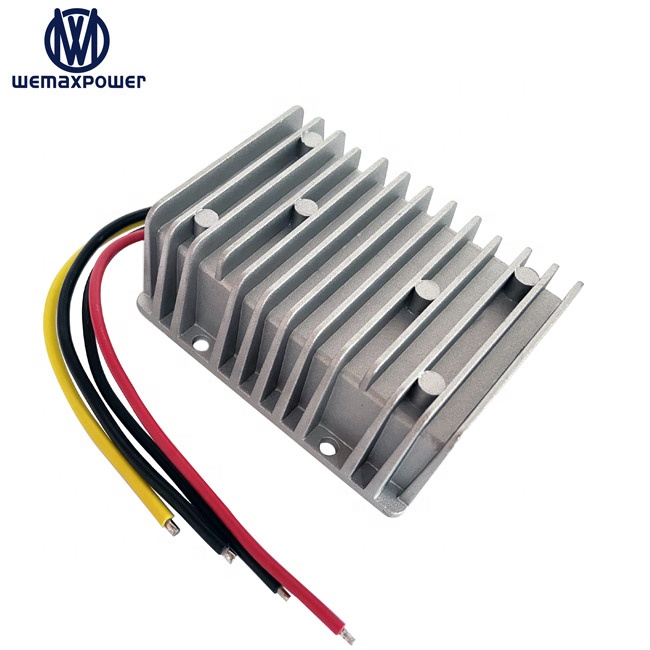

Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
1 / 5
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter

Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter

Send Inquiry

Product Description

Waterproof 15a 24vdc 12vdc step up-down 12v dc voltage regulator 12/24v to dc12v buck boost 15amp converter

Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter
Waterproof IP67 360w 15a Buck boost Module 12v 24vdc to 24V Dc Voltage Regulator Dc24v Boost/buck Converter

24v buck boost converter

Divider
  • Ø High quality components.
  • Ø Full power, stable voltage & current output.
  • Ø Wide input voltage range.
  • Ø Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Ø Industry grade product , efficiency up to 96%.
  • Ø Die-cast aluminum shell, epoxy potting.
  • Ø Non-Isolated Module.
Divider
Series No. WMX-D9-40D24
Model No. WMX-DSD9-40S2415
Product Name 24v buck boost converter
Input rated voltage 12/24Vdc
Input voltage range 9-40Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 15A
Output rated power 360W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Cooling way Free air convection
Packing White standard box
Divider
Product Specification Graphic
Divider
Feature Description 1 Feature Description 2
Divider Divider
Dimensions Graphic
Divider
Diagram 1 Diagram 2
Divider
Application 1 Application 2
Divider Divider
FAQ
How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures, and we provide a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our support team will always be there to assist you.
If we don't find what we need on your website, what should we do? Do you make customized services as per customer's specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed requirements, and we will check if we can develop them. We develop new models regularly, and some of them may not yet be updated on our website. Alternatively, you can send us samples and we can develop the new models especially for you.
Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be highly satisfied with the results. Moreover, with our excellent service and competitive pricing, we believe we will be your ideal partner for power supply solutions.
What is your Minimum Order Quantity?
Different products have different MOQs. Generally speaking, our MOQ is 1~2pcs. Please do not hesitate to check with us for specific items.
