| Model | WMX-B2B1224S14.610 |

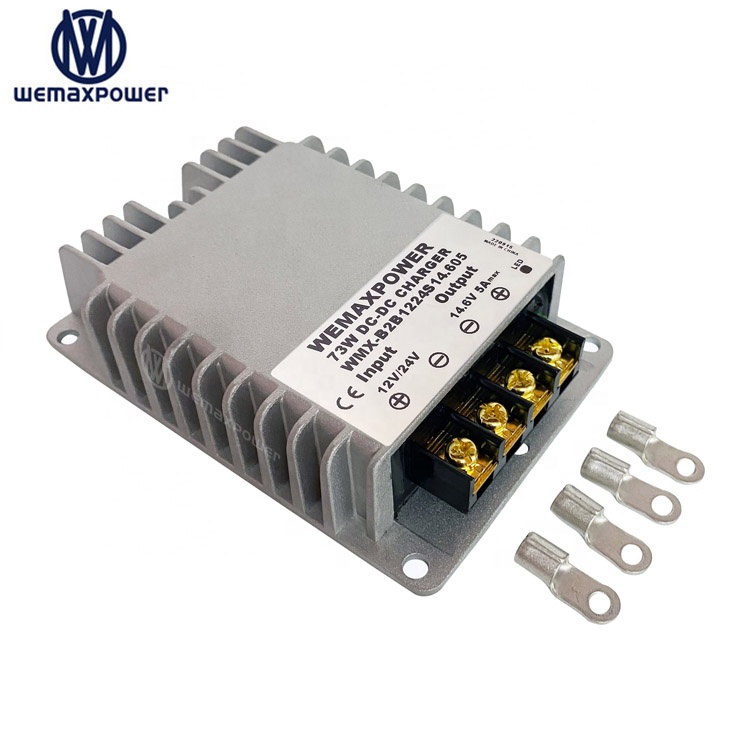

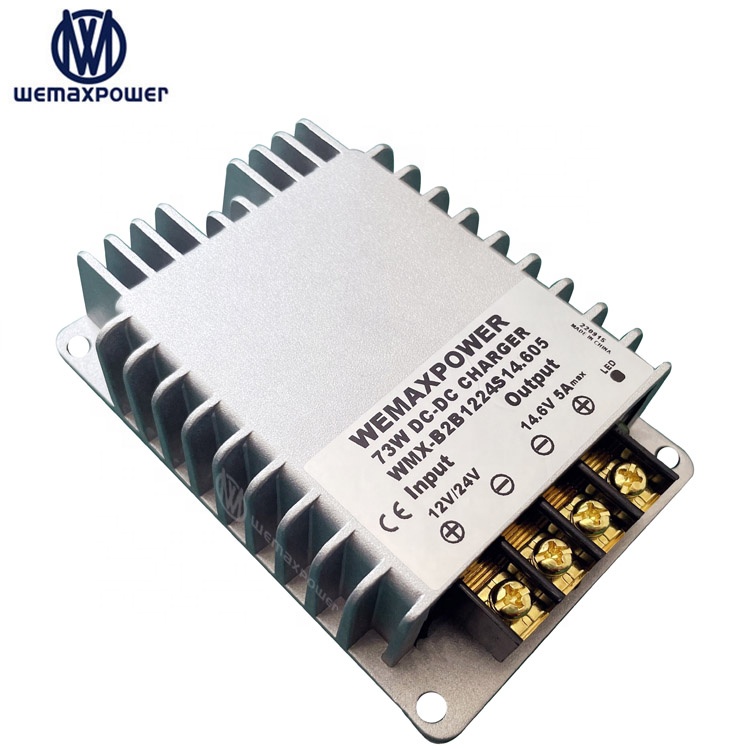

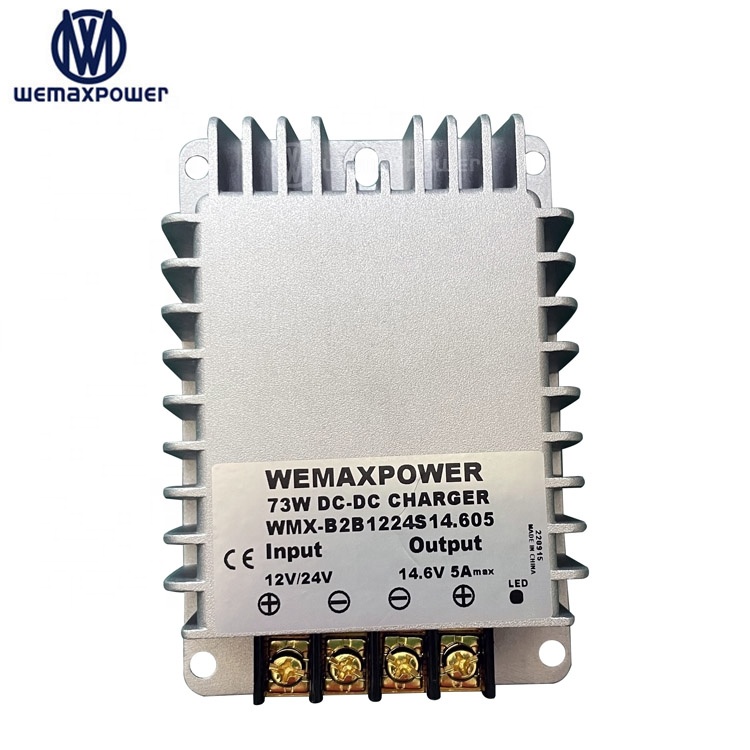

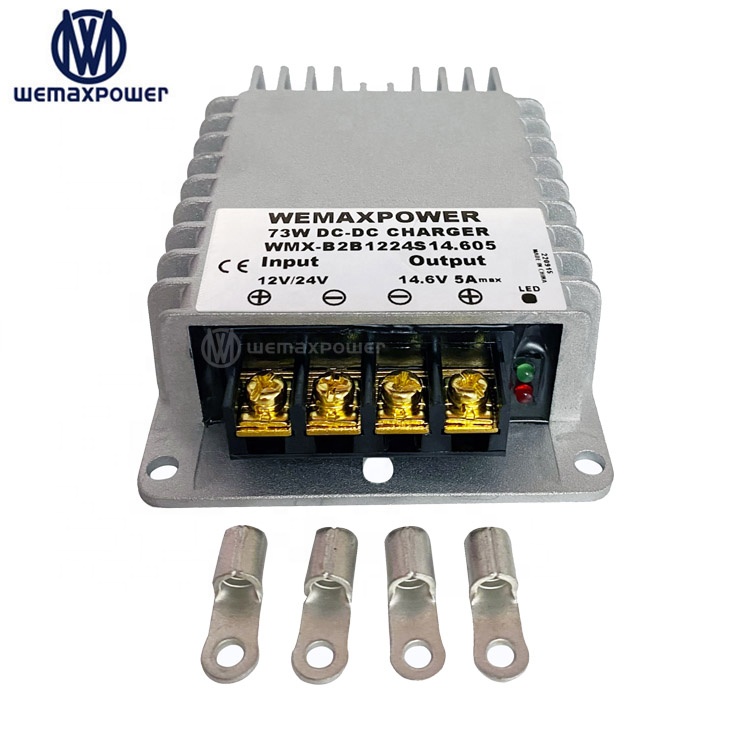

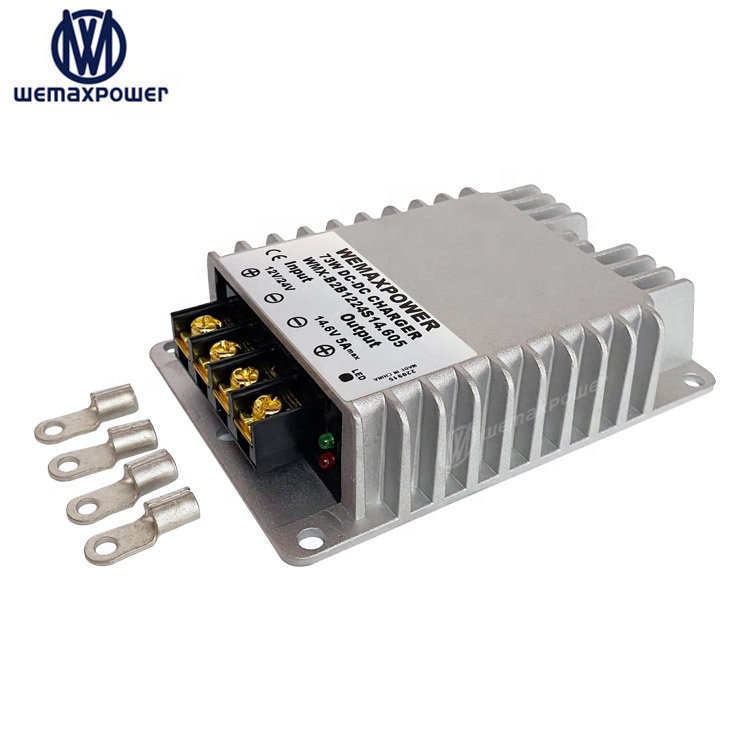

| Product Name | Waterproof IP68 12v 24v to 14.6v 10A dc/dc charger |
| Input rated voltage | 12V DC |
| Input voltage range | 9-16V DC |
| Conversion Efficiency | 96% |
| Output voltage | 14.6V DC |
| Output current | 10 Amps |
| Output rated power | 146 Watts |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 68 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 118*80*28mm |
| N. Weight | 460g |
| Cooling way | Free air convection |
| Applications | Apply for Lead acid or Li-ION or LiFePO4 Lithium Battery on RVs, exposed cars, campers, ships, etc. |
| MODEL | IN-V | IN-V Range | OUT-V | OUT-A | Dimension-mm |
|---|---|---|---|---|---|
| 12V TO 14.5V/14.6V SERIES | |||||
| WMX-B2B12S14.605 | 12V | 10-16V | 14.6V | 5A | 118*80*28mm |
| WMX-B2B12S14.610 | 12V | 10-16V | 14.6V | 10A | 118*80*28mm |
| WMX-B2B12S14.505 | 12V | 10-16V | 14.5V | 5A | 118*80*28mm |
| WMX-B2B12S14.615 | 12V | 12.5-16V | 14.6V | 15A | 150*130*50mm |
| WMX-B2B12S14.620 | 12V | 12.5-16V | 14.6V | 20A | 180*118*39 mm |
| WMX-B2B12S14.630 | 12V | 12.5-16V | 14.6V | 30A | 220*130*50mm |
| WMX-B2B12S14.640 | 12V | 12.5-16V | 14.6V | 40A | 220*130*50mm |
| WMX-B2B12S14.650 | 12V | 12.5-16V | 14.6V | 50A | 220*130*50mm |
| WMX-B2B12S14.660 | 12V | 12.5-16V | 14.6V | 60A | 220*130*50mm |
| WMX-B2B12S14.680 | 12V | 12.5-16V | 14.6V | 80A | 220*156*65mm |
| WMX-B2B12S14.6100 | 12V | 12.5-16V | 14.6V | 100A | 220*156*65mm |
QHow do we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
QWhat kind of products can you buy from us?
You can purchase DC-DC Converters, DC-DC Chargers, Voltage regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
QHow do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described and the problem is proven to be caused by our factory, we will provide exchange services for the same item. Our staff will always be here to support you.
QCan you provide customized services based on specific requirements?
Yes, we provide bespoke services to customers with specific requirements. You can share your detailed specifications, and we will check if we can develop them. We design new models regularly, and some may not yet be updated on our website. Alternatively, you can send us samples for custom development.
QCan I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to supply samples to test quality and performance. We are confident that you will be satisfied with the product's build and performance, and we strive to remain your preferred choice for power supply solutions.
QWhat is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our MOQ is 1 piece. Please contact us directly to check the exact requirement for your desired item.
