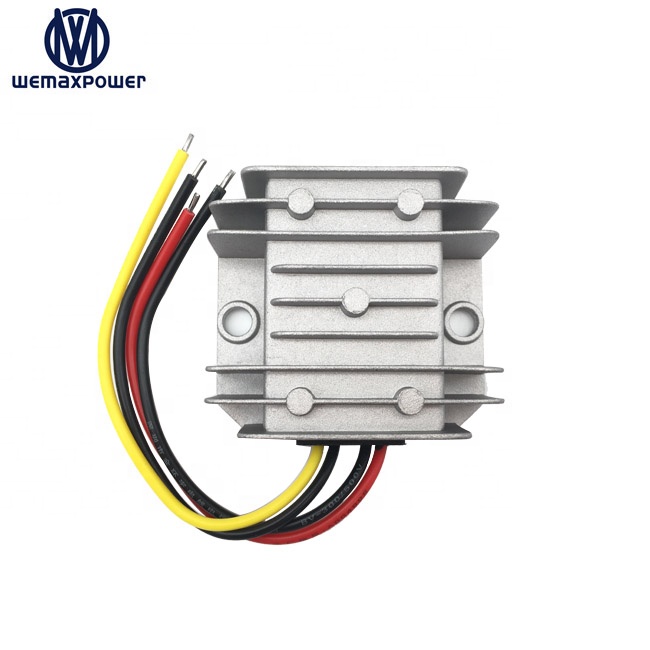

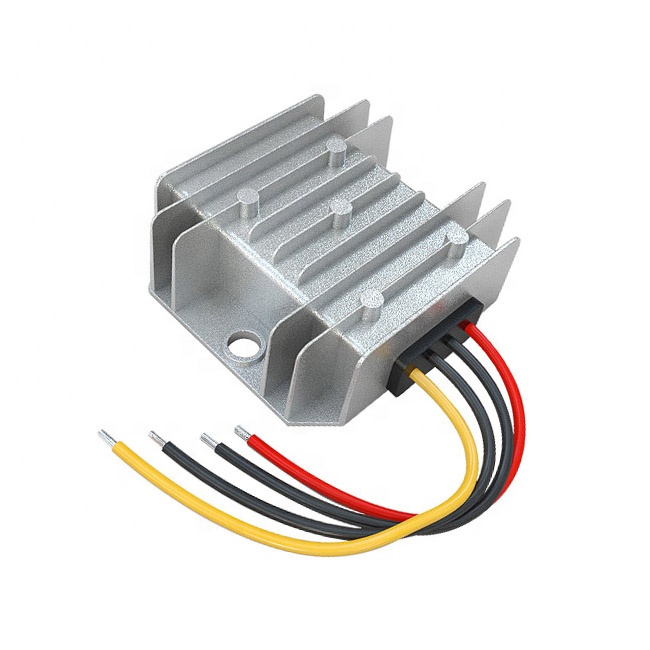

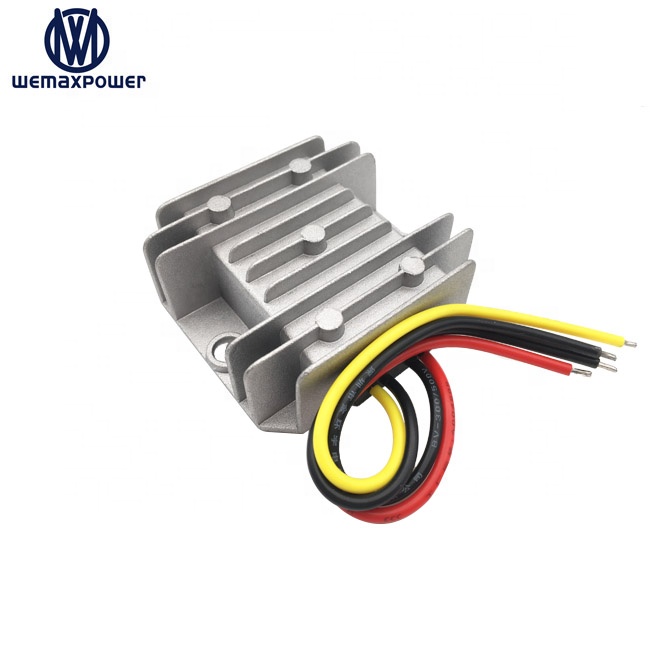

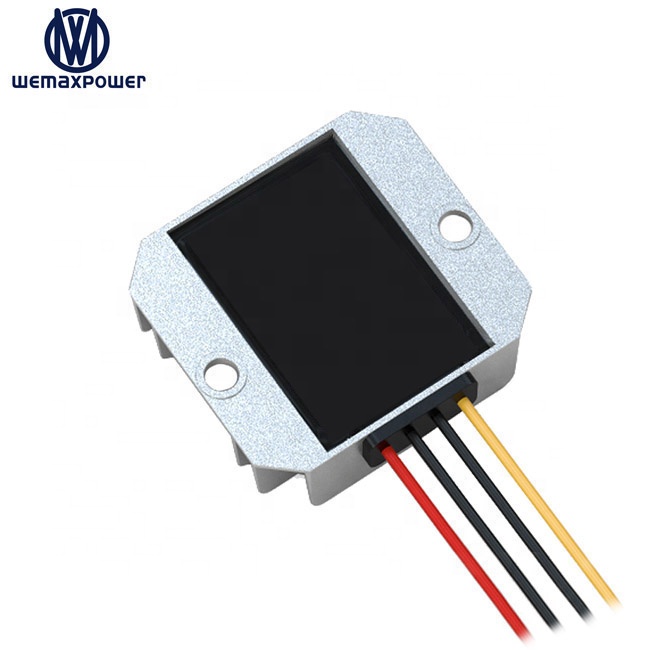

Wide Input 10-36v Dc Voltage Stabilizer Step up Down Module 5a 24v 12v to 12v Buck boost Converter

Similar Products

Features

» High quality components.
» Full power, stable voltage & current output.
» Wide input voltage range 10-36vdc.
» Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
» Industry grade product, efficiency up to 96%.
» Die-cast aluminum shell, epoxy potting.
» Non-Isolated Module.

Specification

Series NO.	WMX-D8-40D12
Model NO.	WMX-DSD10-36S1205
Product Name	12v buck boost converter
Input rated voltage	12/24Vdc
Input voltage range	10-36Vdc
Conversion Efficiency	96%
Output voltage	12Vdc
Output current	5A
Output rated power	60W
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 67
Protections	Over-load, Over-current, Over-temperature, Over-voltage

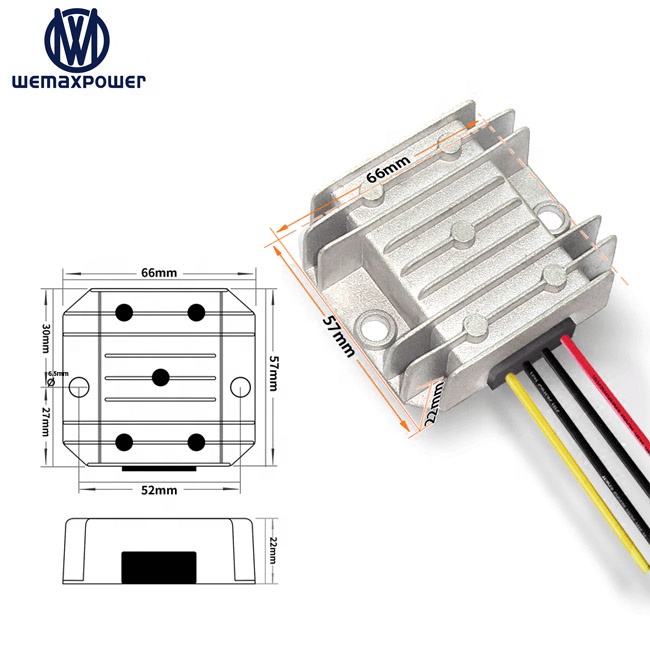

Machine size	576422mm
N. Weight	125g
Cooling way	Free air convection
Packing	White standard box

Product Details

Buyer Feedback

Frequently Asked Questions

Q: Why choose our products?

A: We are a professional DC-DC converters manufacturer with over 10 years of experience. The performance of our converters is highly stable, and the product technology is updated annually to meet industry standards.

Q: Is there any requirement for the load?

A: Yes, these DC-DC converters feature a fixed voltage output, which means they cannot be used to charge batteries directly. If you require battery charging functionality, please choose one of our specialized DC-DC battery chargers.

Q: Why do some other converters on the market cost less?

A: Many low-cost suppliers utilize inferior components, which fail to deliver their rated output power. Our products are engineered with premium imported components, allowing them to support continuous full-load operation safely.

Q: What does the after-sales service include?

A: We provide a 1-year product warranty. In the event of any quality issues within the warranty period, we offer product exchange services.

Q: What terms apply to payment and logistics?

A: We accept payment via L/C, T/T, Western Union, MoneyGram, and PayPal. Delivery options include reliable shipping via DHL, UPS, FedEx, TNT, EMS, and sea freight.

Q: What is the Minimum Order Quantity (MOQ) for the 12v buck boost converter?

A: We maintain a low MOQ policy. Small quantities of 2 to 5 units are readily available for sample evaluation and testing.
