| Series No. | WMX-C4000 |
| Model No. | WMX-BC7240 (72 — Output Voltage, 40 — Output Current) |
| Product Name | 72V 40A battery charger |
| Input Voltage | 110V (100~130Vac) / 220V (200~240Vac), 50Hz/60Hz |
| Nominal Voltage | 72 VDC |
| Charging Current | 40 A |
| Housing Material | Aluminum Alloy |
| Net Weight | 13 kg |
| Product Dimension | 340 * 365 * 155 mm |
| Lead Acid Spec | Equal / Float voltage: 88.2V / 82.8V |
| LiFePO4 Spec | Charging voltage: 87.6V (24S) |
| Li-ion Spec | Charging voltage: 84V (20S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time Specs | Cut-off point for Li battery is 5% of CC (settable between 3-10%). Transition for Lead Acid charger is 20% of CC. |
| High-Efficiency | ≥ 90% |
| MTBF | ≥ 50000h |
| Operating Temp | -20°C ~ 50°C |
| Storage Temp | -40°C ~ 80°C |
| Relative Humidity | 90% (40±2°C) |
| Protection Functions | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protection |

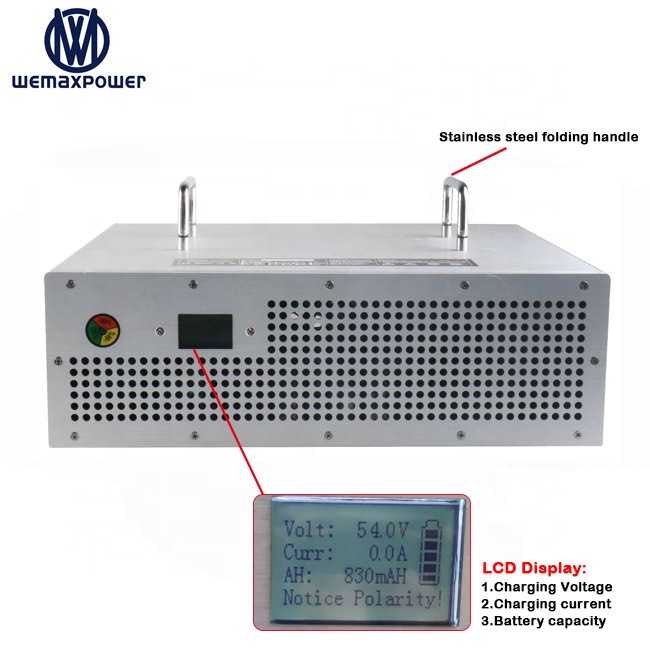

| LED Indicators |
Red: Charging < 80% Yellow: Charging > 80% Green: Fully Charged (100%) |
| AC Plug | Accept any plug based on your request |
Please let us know the plugs you need before confirming the order.
