| Series No. | WMX-C900 |
| Model Definition |
WMX-BC XX YY BC- Battery Charger, XX-Output Voltage, YY-Output(Max charge) current |

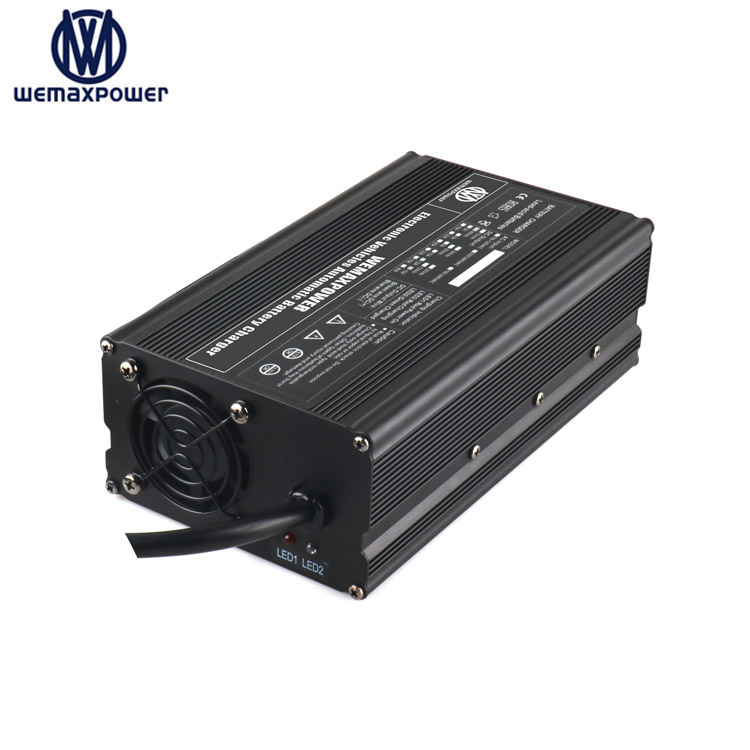

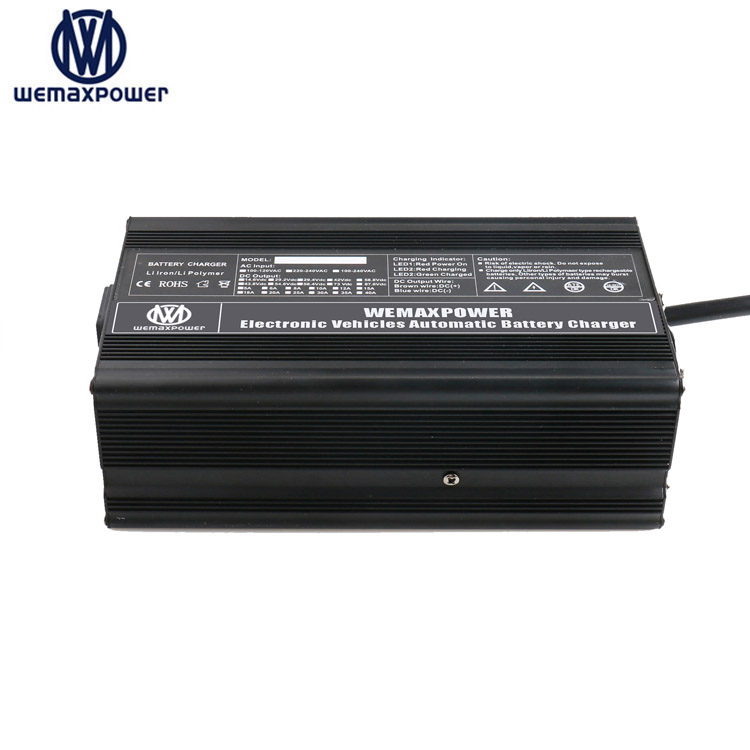

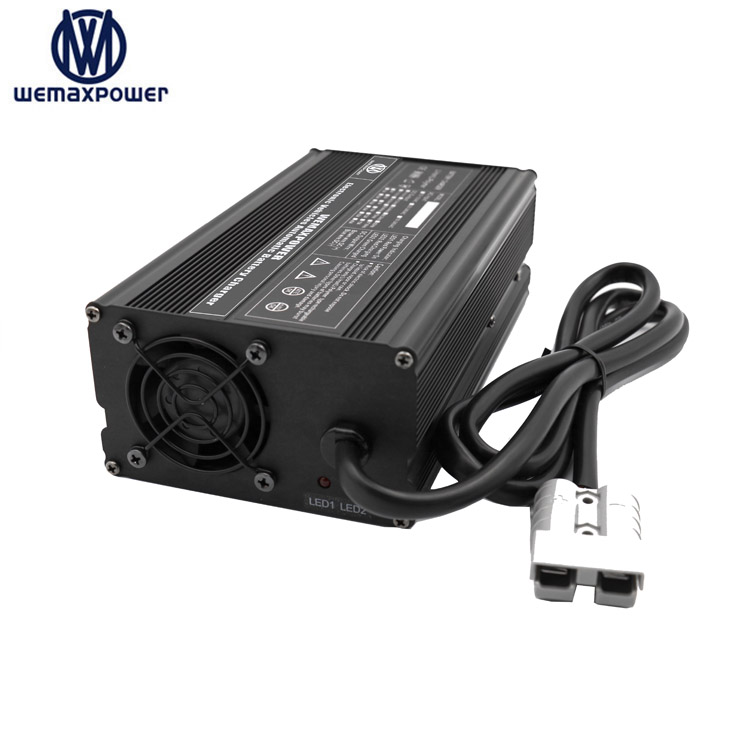

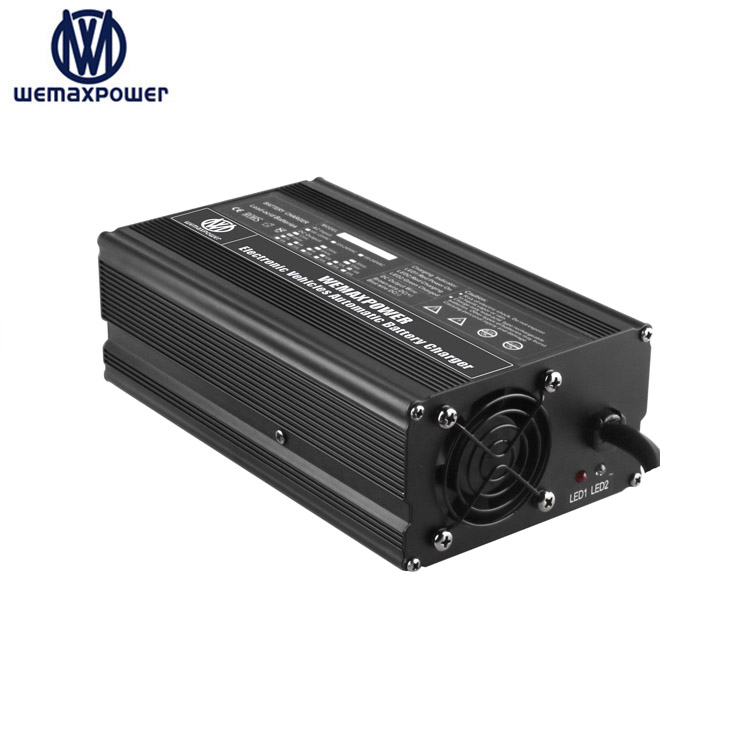

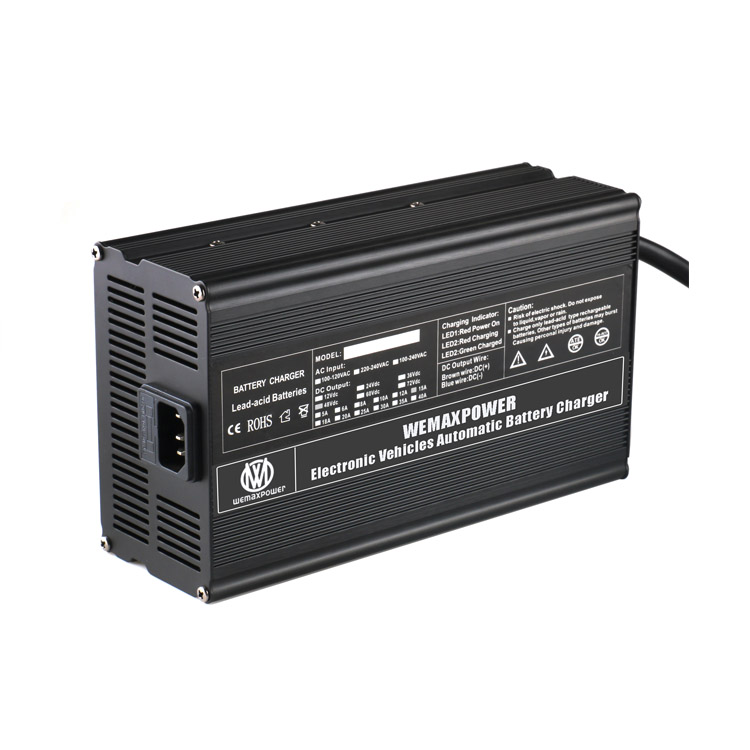

| Product Name | 12V30A Electronic Vehicles Lithium Ion Lifepo4 Lead Acid Automatic Smart Battery Charger |
| Model | WMX-BC1230 |
| AC Input Voltage | 1 Phase 100-130VAC, 50-60Hz | 1 Phase 200-240VAC, 50-60Hz |
| Output Voltage | 12V |
| Output current | 30A |
| Charging current selection |
Lithium battery charge current = Battery capacity *0.3C~2C. Lead acid battery charge current = Battery capacity *0.12C~0.15C |
| Charge mode | C.C, C.V, Trickle | Float |
| MTBF | MTBF > 20000 hours (25 Degrees Celsius, Full load and rated voltage input) |
| Conversion efficiency | 92% |
| Application | Electric Trolley, Sightseeing Car, Electric Cars, Patrol Car, Electric Vehicles, Electric Burden Carrier, Golf Cart, Electric Forklift, Cleaning Machine, Electric Boat, Four Wheels Vehicles, Pallet Truck, Electric Bus, Tour Sightseeing Car, Electric Beach Car, Sanitation Vehicles, Electric Tricycle |
| Protection |
OVP | OCP | OTP | SCP Over voltage | Over current | Over Temperature | Short Circuit | Reverse Polarity Protection |
| Operating Temperature | -15 ~ 40 Degrees Celsius |
| Storage Temperature | -40 ~ 70 Degrees Celsius |
| Humidity | 5 ~ 95% |
| Altitude | 0 ~ 3000m |
| Shell Material | Aluminum Shell |
| Dimension | 210*120*70mm |
| N.W | 1.8 ~ 2.0kg |
| AC Plug (Option) | CN | US | EU | IT | UK | ZA | IN | KR | AU | JP | BR | CH... |
| DC Plug (Option) | Aviation Plug (GX16-3pin) | XLR-3PIN Plug | IEC Plug | Anderson | DC Jack (5.5*2.1)| RCA Plug | Alligator Clips | XT60 | XT90 | OT Circle Plug | Bare wire (Standard)... |
| Golf Plug (Option) |
SB50 With Handle | EV Plug | Ezgo TXT Plug | Club Car Plug | Small Crowfoot | Big Crowfoot | Yamaha 2pins | Ezgo RXV | G29 Yamaha 3PINS | Grey Club Car... (Reminder: If the charger needs a golf plug, additional cost should be pay) |
