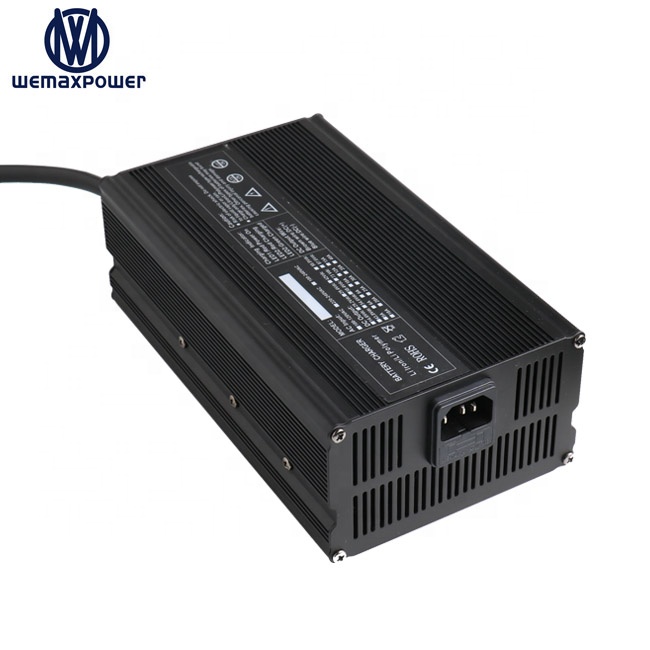

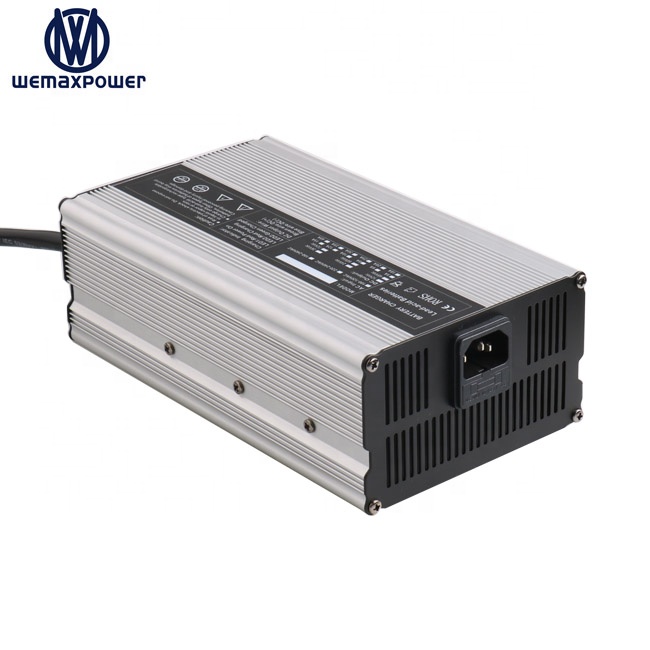

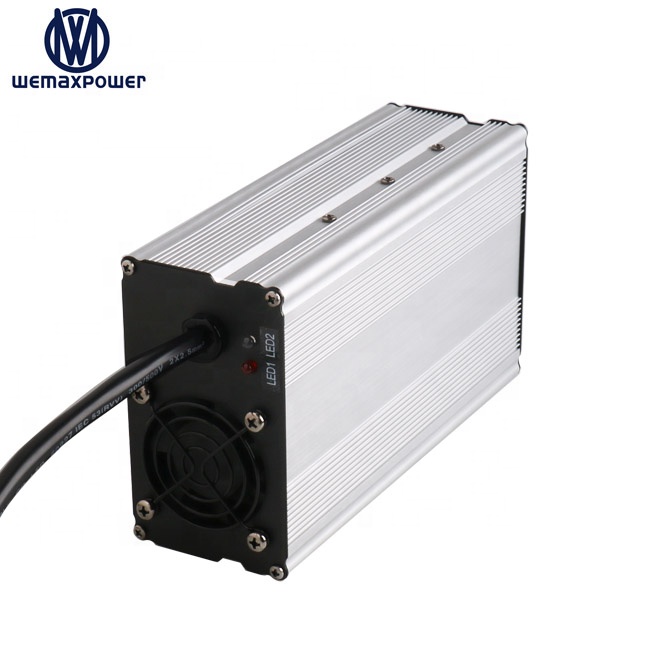

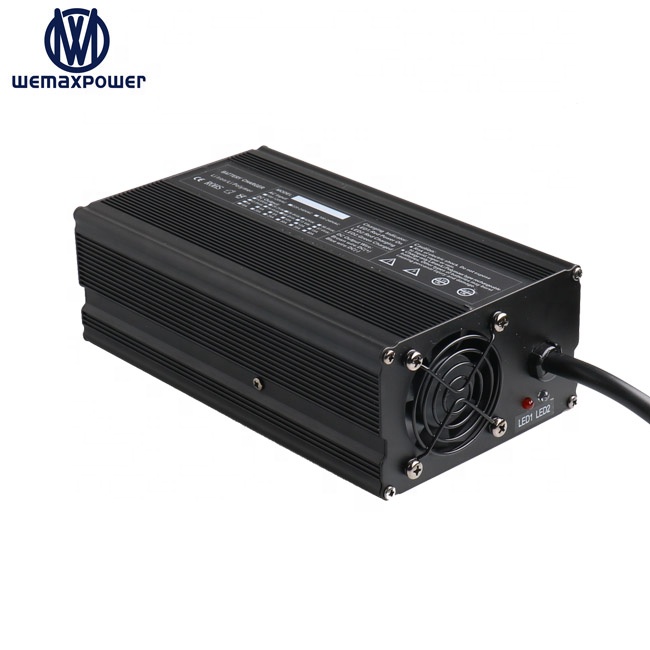

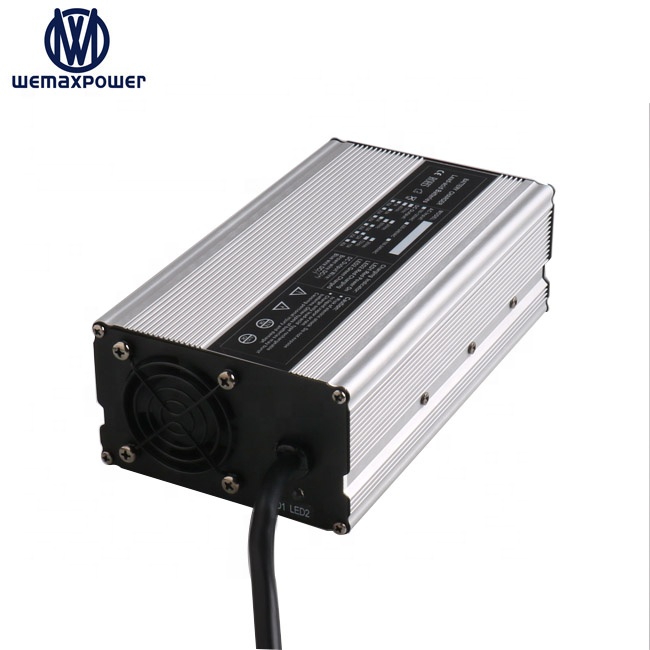

72V 10A Battery Charger
- Full automatic transition of CC, CV and float / cut-off, precise limit of voltage & current.
- High efficiency ≥ 90%, high performance, stable and durable.
- Using three-stage charging mode: CC-CV-floating, charging more intelligently and safely with high saturation and lower calorie.
- Multi-protection functions: protection for short circuit, over voltage, over-temperature, and reverse polarity.
- Aluminium black and silver housing, lightweight, portable, and reliable.
| Series No. |
WMX-C900 |
| Model No. |
WMX-BC7210 (72 - Output Voltage, 10 - Output Current) |
| Product Name |
72v 10a battery charger |
| Input Voltage |
110V (100~130Vac) / 220V (200~240Vac), 50HZ/60HZ |
| Nominal Voltage |
72 VDC |
| Charging Current |
10 A |
| Housing |
Aluminum Alloy |
| Net Weight |
2.5 kg |
| Product Dimension |
210*120*70mm |
| Package Dimension |
29*21*11cm |
| Lead acid |
Equal / Float voltage: 88.2V / 82.8V |
| LiFePO4 |
Charging voltage: 87.6V(24S) |
| Li-ion |
Charging voltage: 84V(20S) |
| Charging Principle |
Full automatic transition CC, CV and Float / Cut-off |
| Charging Time |
Cut-off point for Li battery is 5% of CC (settable between 3-10%). Transition for Lead acid charger is 20% of CC. |
| High-Efficiency |
≥90% |
| MTBF |
≥50000h |
| Operating Temperature |
-20℃ ~ 50℃ |
| Store Temperature |
-40℃ ~ 80℃ |
| Related Humility |
90% (40±2℃) |
| Protection Function |
Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |

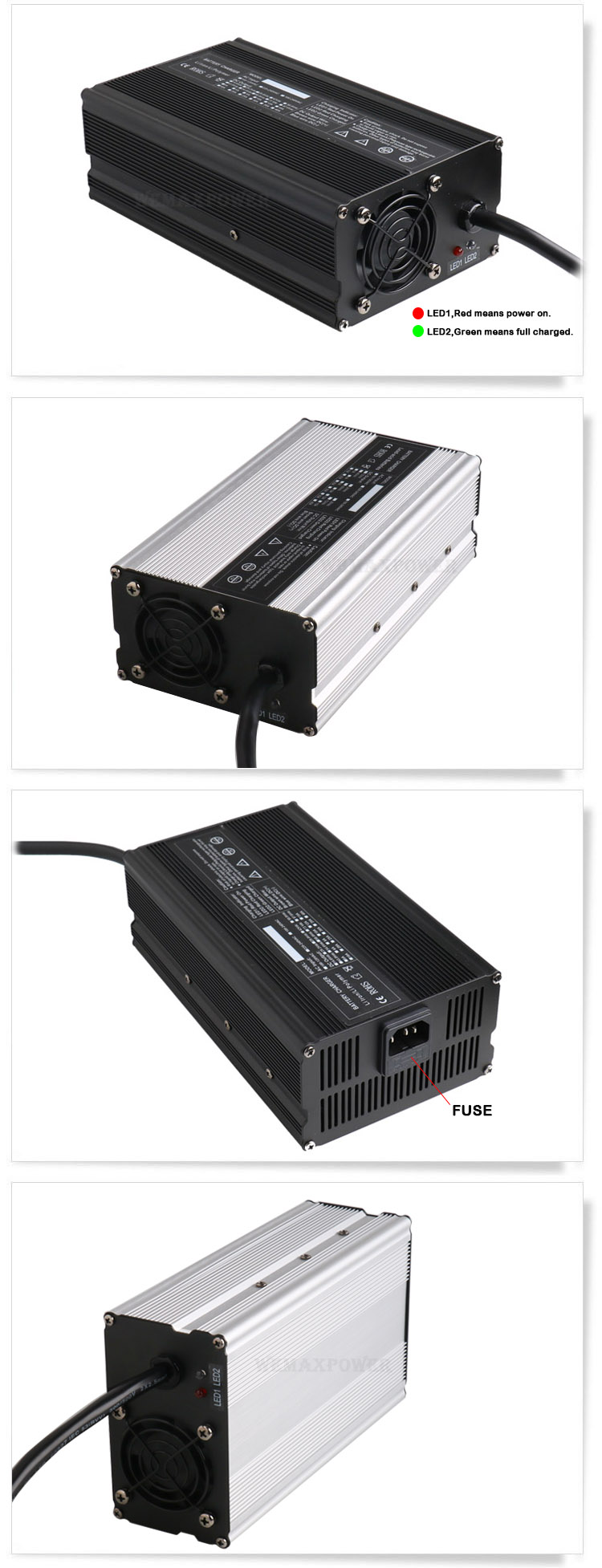

| Indicators |
Red means power on / charging, Green means fully charged |
| AC Plug |
Accept any plug base on your request |
| Warranty |
12 months |
Warm Tip:
Please let us know the plugs you need before confirming the order.
Note: Before you place an order, please confirm the following questions:
- What kind of battery do you need to charge? (Li-ion battery, LiFePO4 battery, or Lead Acid battery?)
- What is the max charging voltage of the battery?
- What is the number of cells in series?
- What is the capacity (AH) of the battery pack?
- What input plug and output plug do you need? (For Example: B & 1)
Q1: Which battery types is this 72V 10A charger compatible with?
A1: This charger is compatible with Lead-Acid, LiFePO4, and Li-ion batteries. Please specify your battery type when placing an order to ensure the correct voltage configuration.
Q2: How do the LED indicators show the charging status?
A2: The LED light turns Red to indicate that the unit is powered on and actively charging. Once the battery is fully charged, the indicator changes to Green.
Q3: What safety protections are built into the charger?
A3: The charger features multi-protection functions, including over-voltage, over-temperature, over-current, short-circuit, and reverse polarity protections to ensure safe operations.
Q4: Can I customize the input and output plugs for my order?
A4: Yes, we accept customized plug configurations based on your specific requirements. Please inform us of your plug requirements before finalizing the order.
Q5: What is the warranty period for this battery charger?
A5: We provide a 12-month warranty on this product starting from the purchase date.
Q6: What is the standard efficiency rating of this product?
A6: This charger operates with a high efficiency rating of ≥90%, which ensures stable, reliable performance with lower heat generation.
