Wemax Power
1 / 5
| Series No. | WMX-C300 |
| Model Definition | WMX-BC XX YY BC- Battery Charger, XX-Output Voltage, YY-Output(Max charge)current |

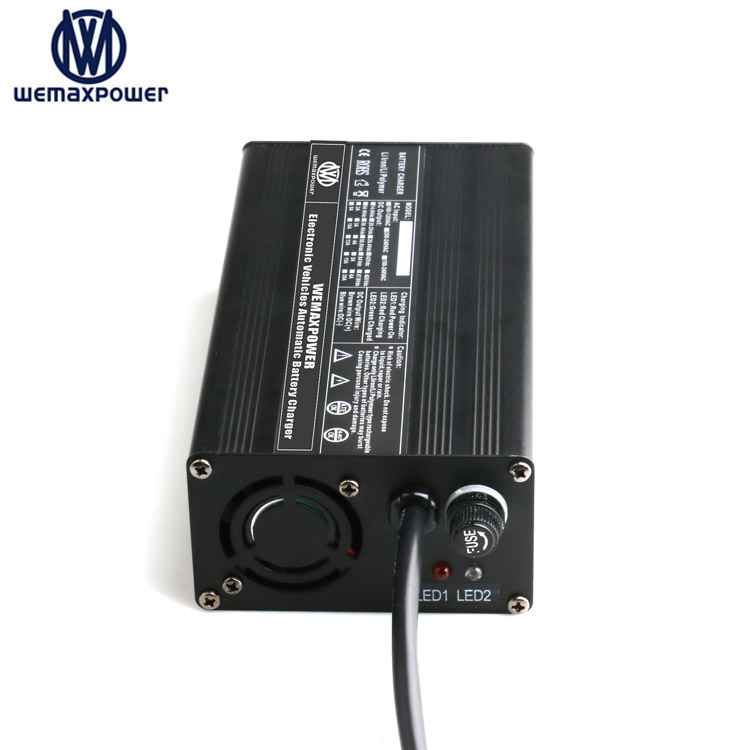

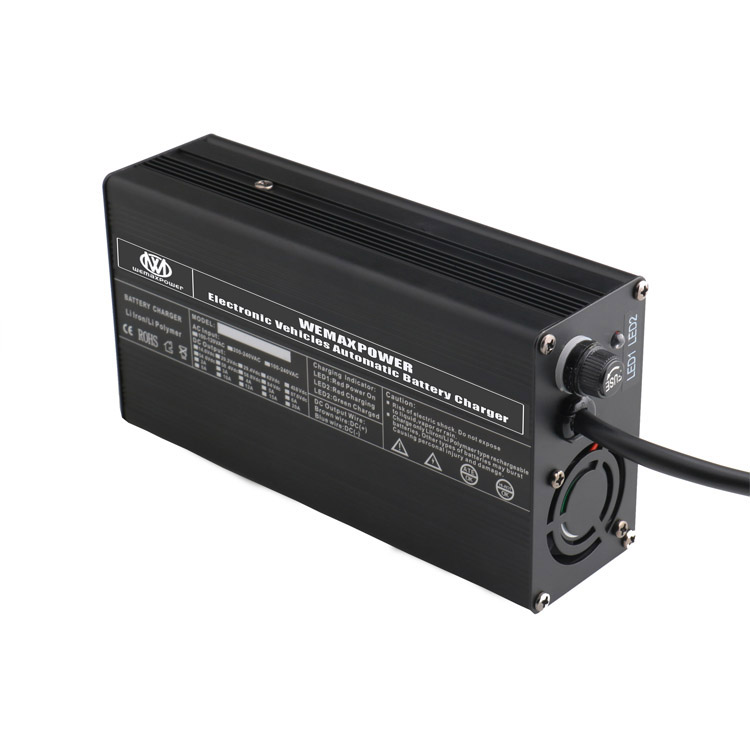

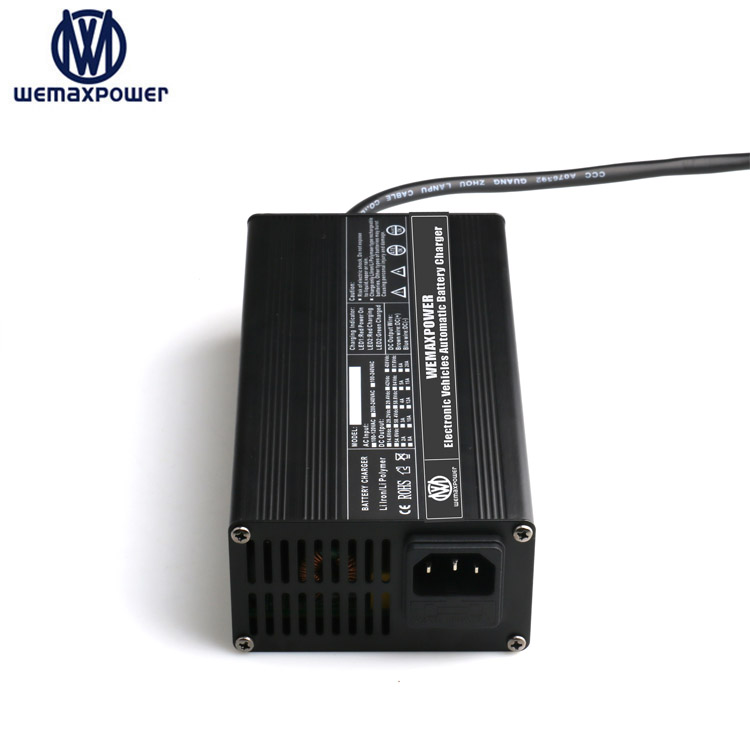

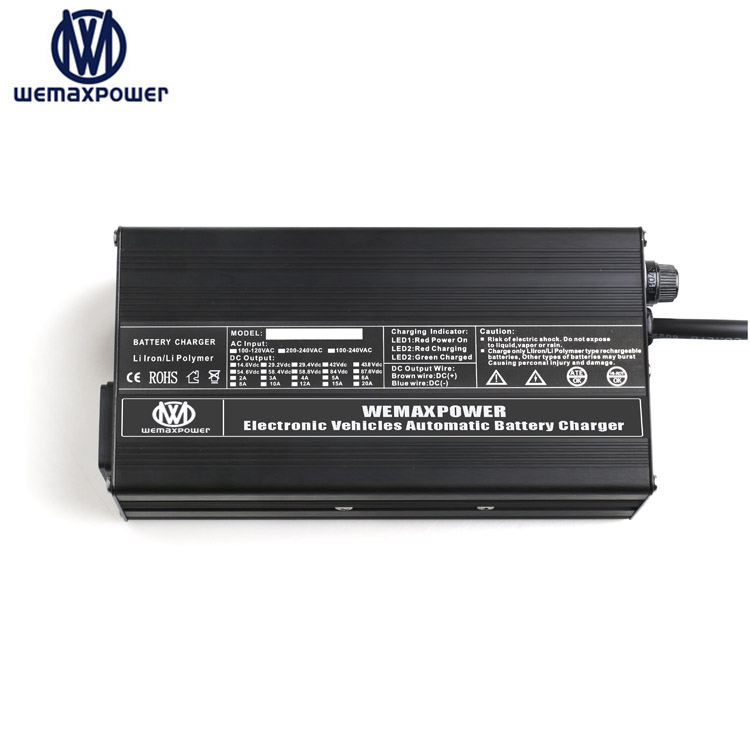

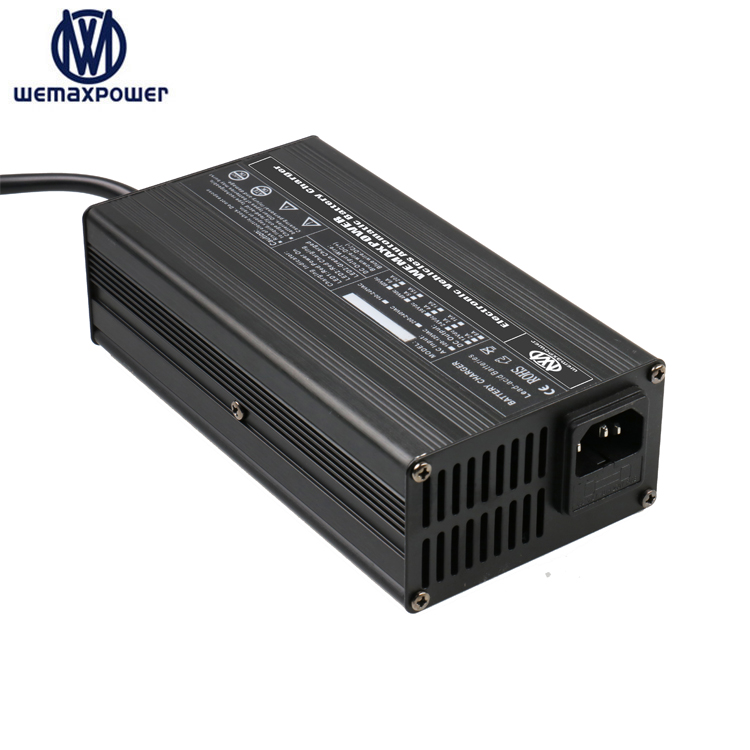

| Product Name | 12V15A Electronic Vehicles Lithium Ion Lifepo4 Lead Acid Automatic Smart Battery Charger |
| Model | WMX-BC1215 |
| AC Input Voltage | 1 Phase 100-130VAC, 50-60Hz | 1 Phase 200-240VAC, 50-60Hz |
| Output Voltage | 12V (Max charge voltage 14.6V) |
| Output Current | 15A |
| Charging Current Selection | Lithium battery charge current = Battery capacity *0.3C~2C. Lead acid battery charge current = Battery capacity *0.12C~0.15C |
| Charge Mode | C.C, C.V, Trickle | Float |
| MTBF | MTBF > 20000 hours (25 Degrees Celsius, Full load and rated voltage input) |
| Conversion Efficiency | 90% |
| Application | Electric City-coco Scooter, Hover-board, E-bike, Mobility Scooter, Electric Toy Cars, Handicapped Scooter, Segway, Lime Electric Scooter, Hover-board, Electric Skateboard, Balancing Electric Scooter, Solo Wheel/Balance Freeman, Unfolded Balance Scooter, Le Bar Cart, Electric Forklift, Hover-board Balance, Power Tools, Portable Electric Device, Golf Cart, Electric Trolley |
| Protection | OVP | OCP | OTP | SCP Over voltage | Over current | Over Temperature | Short Circuit | Reverse Polarity Protection |
| Operating Temperature | -15 ~ 40 Degrees Celsius |
| Storage Temperature | -40 ~ 70 Degrees Celsius |
| Humidity | 5 ~ 95% |
| Altitude | 0 ~ 3000m |
| Shell Material | Aluminum Shell |
| Dimension | 170*90*50mm |
| N.W | 0.9 ~ 1.1kg |
| AC Plug (Option) | CN | US | EU | IT | UK | ZA | IN | KR | AU | JP | BR | CH… |
| DC Plug (Option) | Aviation Plug (GX16-3pin) | XLR-3PIN Plug | IEC Plug | Anderson | DC Jack (5.5*2.1)| RCA Plug | Alligator Clips | XT60 | XT90 | OT Circle Plug | Bare wire (Standard)… |
| Golf Plug (Option) | SB50 With Handle | EV Plug | Ezgo TXT Plug | Club Car Plug | Small Crowfoot | Big Crowfoot | Yamaha 2pins | Ezgo RXV | G29 Yamaha 3PINS | Grey Club Car… (Reminder: If the charger needs a golf plug, additional costs may apply.) |
Please let us know the plugs you need before confirming the order.
A1: It is designed to charge Lithium-ion (Li-ion) batteries, Lithium Iron Phosphate (LiFePO4) batteries, and Lead-Acid batteries. Please specify your battery type before confirming your order.
A2: The Constant Current (CC), Constant Voltage (CV), and Floating/Trickle charge mode ensures intelligent, safe, and efficient charging. It maximizes battery saturation while keeping heat generation to a minimum.
A3: The charger features multi-protection systems: Short Circuit Protection, Over-Voltage Protection (OVP), Over-Current Protection (OCP), Over-Temperature Protection (OTP), and Reverse Polarity Protection.
A4: The charger operates at a high conversion efficiency of 90% or above, providing stable and durable performance.
A5: Yes, we offer a wide range of optional AC plug options (US, EU, UK, AU, CN, etc.) and DC plug options (Aviation, XLR, Anderson, Alligator Clips, etc.) to match your specific vehicle or application.
A6: The charger is built with a lightweight aluminum shell (available in black and silver). This makes the unit highly durable, portable, and reliable for various environments.
