| Series No. | WMX-C4000 |
| Model No. | WMX-BC4860 (48--Output Voltage, 60--Output Current) |
| Product name | 48v 60a battery charger |
| Input Voltage | 110V(100~130Vac) / 220V(200~240Vac), 50HZ/60HZ |
| Nominal Voltage | 48 VDC |
| Charging Current | 60 A |
| Housing | Aluminum Alloy |
| Net Weight | 13 kg |

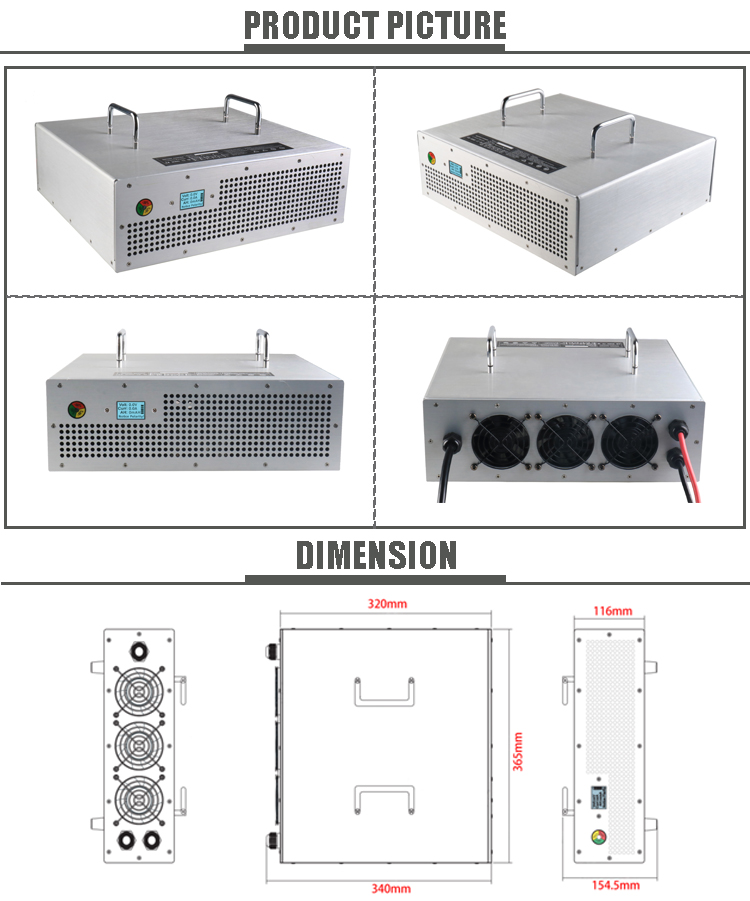

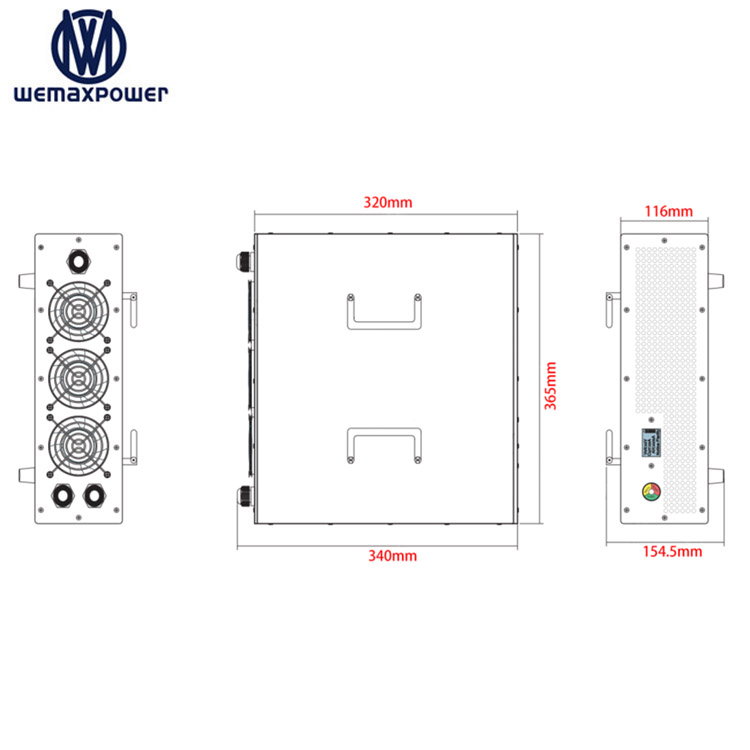

| Product dimension | 340*365*155mm |
| Lead acid Equal / Float voltage | 58.8V / 55.2V |
| LiFePO4 Charging voltage | 58.4V(16S) |
| Li-ion Charging voltage | 50.4V(12S), 54.6V(13S), 58.8V(14S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥90% |
| MTBF | ≥50000h |
| Operating Temperature | -20°C ~ 50°C |
| Store Temperature | -40°C ~ 80°C |
| Related humility | 90% (40±2°C) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators |
Red Charging less than 80% Yellow Charging more than 80% Green Full charged 100% |
| AC Plug | Accept any plug base on your request |
This charger is fully compatible with Lithium-ion (Li-ion), Lithium Iron Phosphate (LiFePO4), and Lead-Acid batteries.
Please confirm the battery type (Li-ion, LiFePO4, or Lead Acid), the maximum charging voltage of your battery, the number of cells in series, the battery pack capacity (AH), and your required input/output plug configuration.
The charger uses an intelligent three-stage charging mode: Constant Current (CC), Constant Voltage (CV), and Floating/Cut-off. The cut-off point for lithium batteries is set between 3-10% of CC (default is 5%), while the transition for Lead-acid is 20% of CC.
It includes multiple safety functions: short circuit protection, over-voltage protection, over-temperature protection, and reverse polarity protection.
The LED indicators show the status clearly: Red indicates charging is under 80%, Yellow indicates charging is above 80%, and Green indicates a full charge (100%).
Yes, any plug configuration can be accepted and customized based on your specific requirements. Please inform us of your plug choices (e.g., Plug B & 1) prior to confirming your order.
