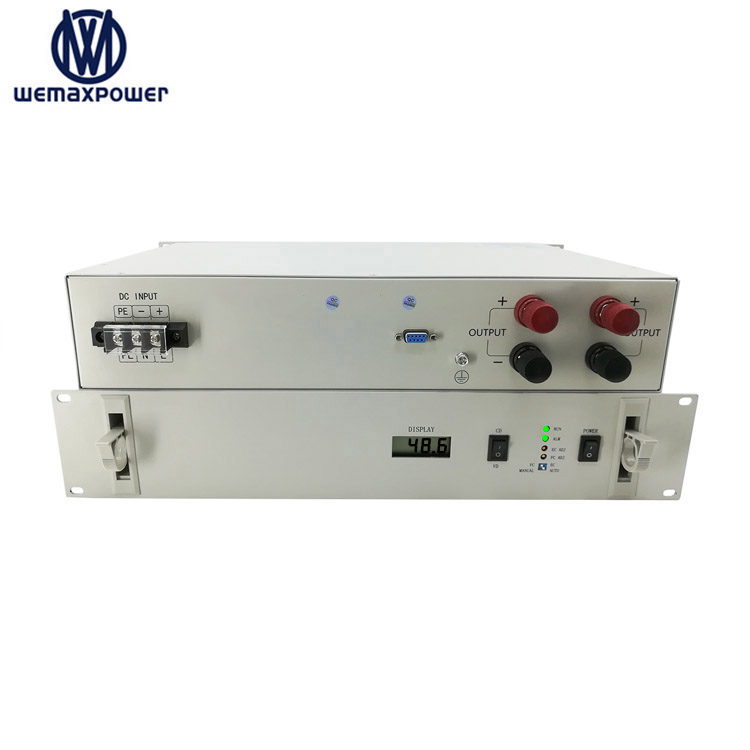

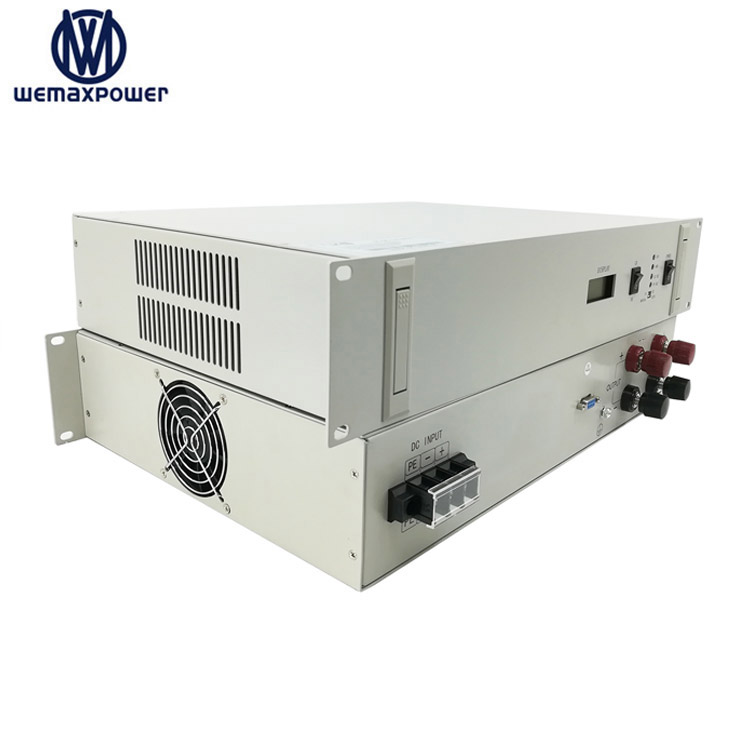

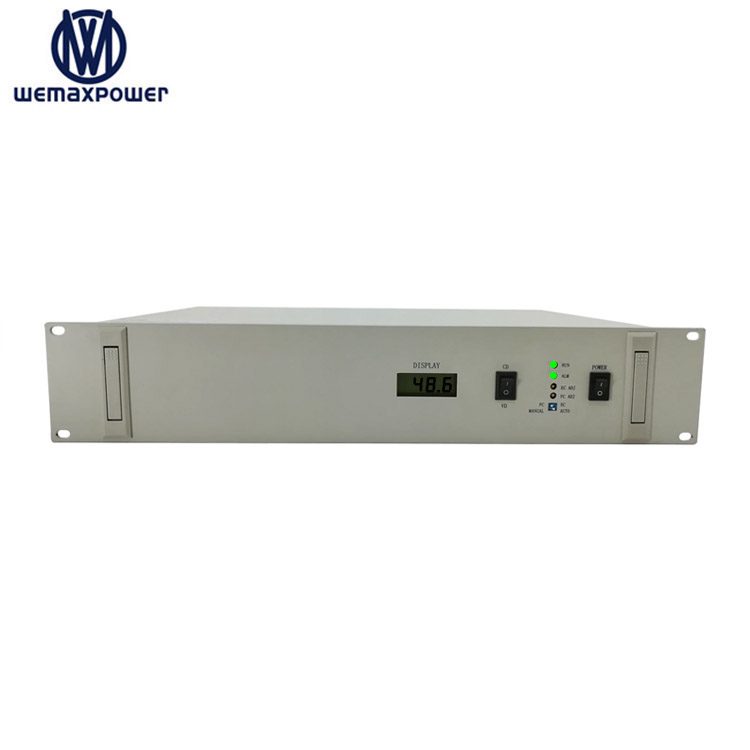

Convert DC Voltage 90V to 130Vdc 110Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 19INCH 2U Rack Mount DC-DC Converter WMX-DSD110S48**Series
110VDC TO 48VDC 10A, 20A, 30A, 40A, 50A, 60A 19INCH 2U Rack Mount DC-DC Converter
- Communication dedicated DC-DC converter is specially designed to meet the needs of various communication equipment in the communication and power sectors.
- Communication dedicated DC-DC converter adopts high-frequency switching power supply technology and has the characteristics of high voltage stability, low output noise, and strong anti-interference ability. Small in size, light in weight, and beautiful in appearance.
- Communication dedicated DC-DC converter is an ideal configuration for communication/electric equipment room to supply power to communication equipment of different voltage levels. Convert DC Voltage 90V to 130Vdc 110Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 19INCH 2U Rack Mount DC-DC Converter
- Input and output are completely isolated, safe and reliable.
- Advanced current control mode and stable and reliable circuit topology.
- Imported components are used for key components.
- Comprehensive protection functions, output over-voltage, over-current, short-circuit, overheating protection.
- Multiple units can be used in parallel.
- Dual AC & DC Input is available
Convert DC Voltage 90V to 130Vdc 110Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 19INCH 2U Rack Mount DC-DC Converter
| Model WMX-DSD110S48** Series |
110S4810 |
110S4820 |
110S4830 |
110S4840 |
110S4850 |
110S4860 |
| Input rate voltage |
110VDC |
| Input voltage range |
90~130VDC |
| Output rate voltage |
48VDC |
| Output voltage range |
40~60VDC |
| Output Current |
10A |
20A |
30A |
40A |
50A |
60A |
| Load regulation |
≤0.2% |
| Power grid regulation |
≤0.1% |
| Degree of imbalance for equalized current |
≤±5% |
| Phone weighted noise voltage |
≤2mV(CCITT) |
| Peak—peak noise |
≤150mV |
| Wide frequency noise |
≤50mV |
| Discrete noise |
≤20mV |
| Efficiency |
More than 90% |
| Dynamic response |
20% ~ 100% step load≤200Restoring time≤100uS |
| Working temperature |
-5~45℃ |
| Cooling mode |
Temperature control wind cooling |
| MTBF |
100,000Hour |

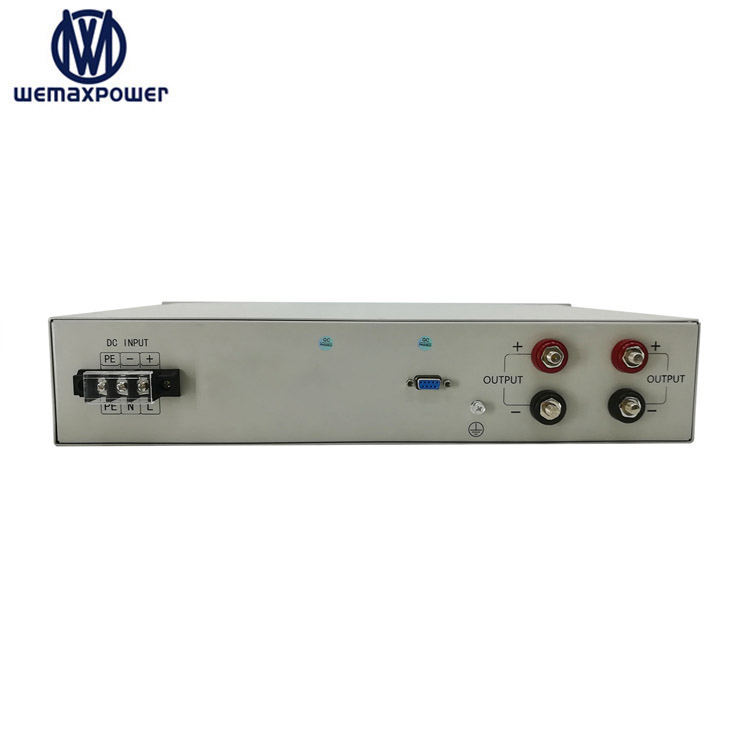

| Output type |
Screw terminal |
Cylindrical terminal |
| Dimension (W*H*D) |
19inch 2U Rack Mount, 482*300*88mm |
19inch 2U Rack Mount, 482*350*88mm |
| Net Weight |
8kg |
9kg |
9kg |
10kg |
10kg |
10kg |
| Model |
DC Input Voltage |
DC Output Voltage |
Output Current |
| WMX-DSD220S48** |
220V |
48V |
10A, 20A, 30A, 40A, 50A, 60A, 80A, 100A |
| WMX-DSD220S24** |
220V |
24V |
20A, 30A, 40A, 50A, 60A, 80A, 100A |
| WMX-DSD220S110** |
220V |
110V |
5A, 10A, 15A, 20A |
| WMX-DSD110S48** |
110V |
48V |
10A, 20A, 30A, 40A, 50A, 60A |
| WMX-DSD110S24** |
110V |
24V |
10A, 20A, 30A, 40A, 50A, 60A |
| WMX-DSD110S220** |
110V |
220V |
5A, 10A |
| WMX-DSD48S24** |
48V |
24V |
10A, 20A, 30A, 40A, 50A |
| WMX-DSD48S220** |
48V |
220V |
5A, 10A |
220Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 80A 100A 19INCH 2U Rack Mount DC-DC Converter
Convert DC Voltage 90V to 130Vdc 110Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 19INCH 2U Rack Mount DC-DC Converter
220Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 80A 100A 19INCH 2U Rack Mount DC-DC Converter
Frequently Asked Questions (FAQ)
Why choose us?
We are the dc dc converters manufacturer for more than 8 years. The performance of the converters is very stable, and the product technology is updated every year. We are the direct manufacturer, supplying OEM/ODM service.
What about your after sales-service?
We provide a 1-year guarantee period. Our return policy allows for exchanging goods if there are any quality issues.
What is the range of input voltage for the standard 110V DC-DC converter model?
The standard model has a rated input voltage of 110VDC with an input voltage range of 90VDC to 130VDC.
What built-in protection features are included in this DC-DC converter?
It features comprehensive protection designs, including output over-voltage, over-current, short-circuit, and overheating protection to ensure safety and reliability.
Can these converters be connected and used in parallel?
Yes, multiple units of this DC-DC converter can be used in parallel connection to suit higher power supply demands.
What customized input/output voltage options are available?
We offer customized ranges including DC inputs of 48V, 110V, and 220V, matching with various DC outputs of 24V, 48V, 110V, and 220V, with output currents going up to 100A.
