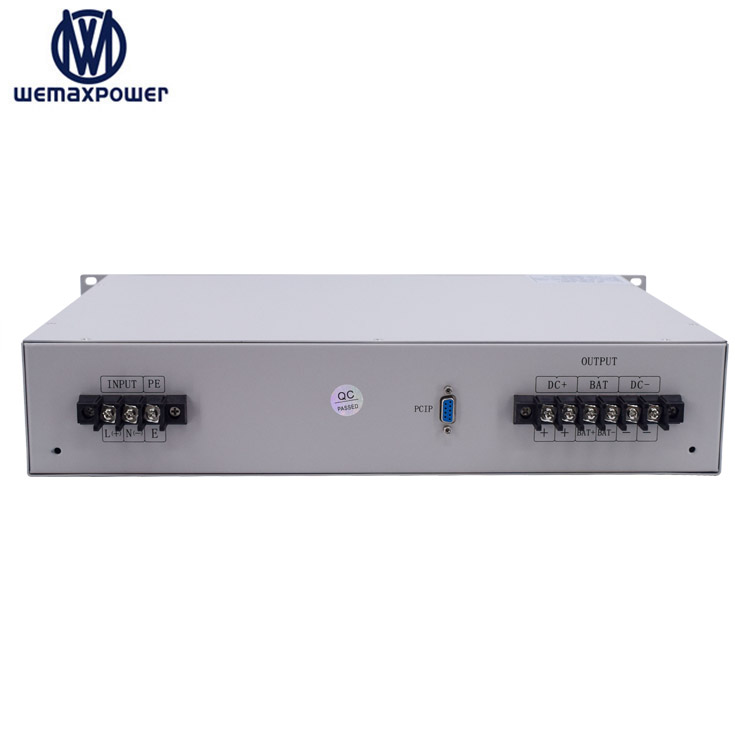

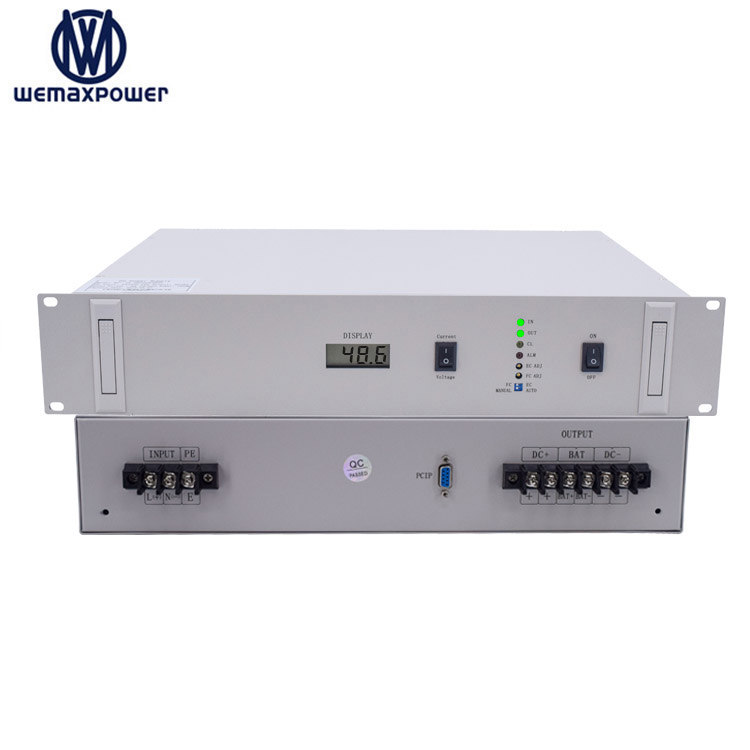

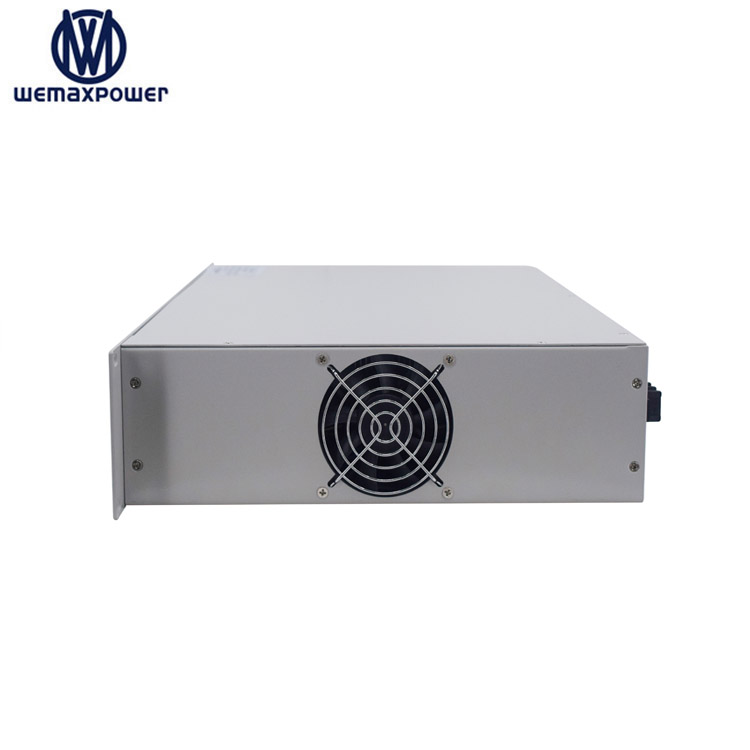

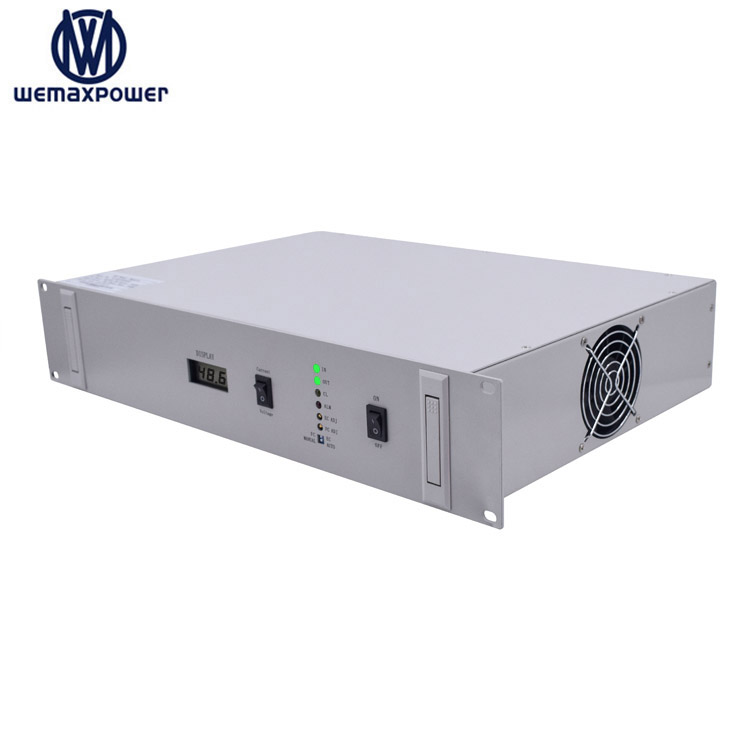

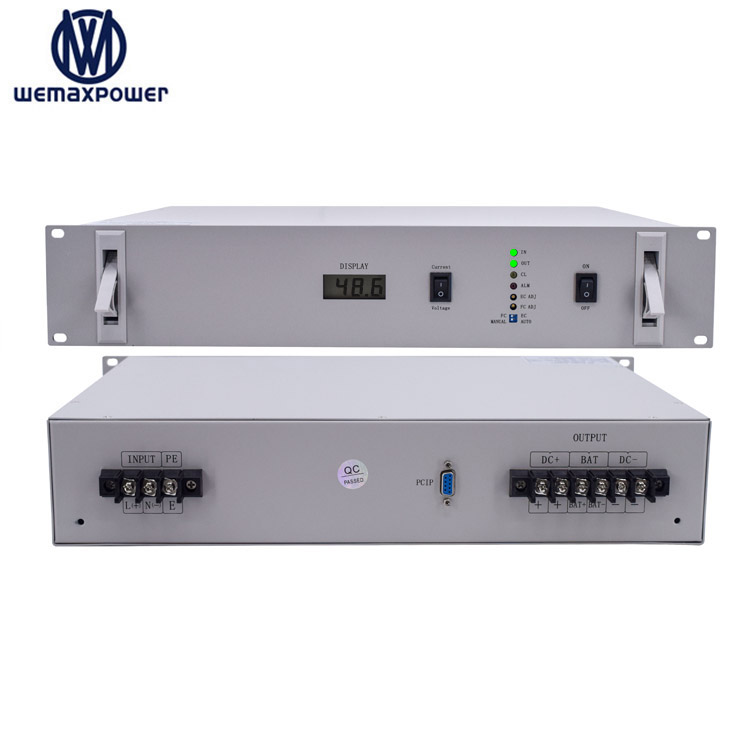

WEMAXPOWER Telecom Power Solutions Switching Mode Isolated Single Phase Single Output 19inch 220VDC to 48VDC 40A DC/DC Converter

1 / 5

WEMAXPOWER Telecom Power Solutions Switching Mode Isolated Single Phase Single Output 19inch 220VDC to 48VDC 40A DC/DC Converter

Send Inquiry

Product Description

>> 220vdc to 48Vdc 40A DC/DC Converter <<

PRODUCT INTRODUCTION

The Telecom Power Solutions Switching Mode Isolated 19inch 220VDC TO 48VDC 40A DC/DC Converter is specially designed to meet the needs of various communication equipment in the communication and power sectors.

The 220VDC -48VDC 40A DC DC Converter adopts high-frequency switching power supply technology and has the characteristics of high voltage stability, low output noise, and strong anti-interference ability. It is small in size, light in weight, and beautiful in appearance.

This Telecom Power Solutions Switching Mode Isolated 19inch 220VDC TO 48VDC 40A DC/DC Converter is an ideal configuration for communication/electric equipment rooms to supply power to communication equipment of different voltage levels.

SPECIFICATION

Telecom Power Solutions Switching Mode Isolated 19inch 220VDC TO 48VDC 40A DC/DC Converter

Model	DSD220S4840
Input rate voltage	220VDC
Input voltage range	180~270VDC
Output rate voltage	48VDC
Output voltage range	40~60VDC
Output Current	40A
Load regulation	≤0.2%
Power grid regulation	≤0.1%
Degree of imbalance for equalized current	≤±5%
Phone weighted noise voltage	≤2mV(CCITT)
Peak—peak noise	≤150mV
Wide frequency noise	≤50mV
Discrete noise	≤20mV
Efficiency	more than 90%
Dynamic response	20% ~ 100% step load≤200Restoring time≤100uS
Working temperature	-5~45℃
Cooling mode	Temperature control wind cooling
MTBF	100,000 Hour
Output type	Screw terminal
*Dimension (WHD)*	19inch 2U Rack Mount 48230088mm
Net Weight	11kg

CUSTOMIZE RANGE

Model	DC Input Voltage	DC Output Voltage	Output Current
DSD220S48**	220V	48V	10A,20A,30A,40A,50A,60A,80A,100A
DSD220S24**	220V	24V	20A,30A,40A,50A,60A,80A,100A
DSD220S110**	220V	110V	5A, 10A,15A,20A
DSD110S48**	110V	48V	10A,20A,30A,40A,50A,60A
DSD110S24**	110V	24V	10A,20A,30A,40A,50A,60A
DSD110S220**	110V	220V	5A,10A
DSD48S24**	48V	24V	10A,20A,30A,40A,50A
DSD48S220**	48V	220V	5A,10A
DSD48S110**	48V	110V	10A,20A
DSD24S48**	24V	48V	10A,15A,20A,30A,40A
DSD24S110**	24V	110V	10A

Note: The same specification of multi-unit DC-DC Converter supports connection in PARALLEL.

Product Description

Telecom Power Solutions Switching Mode Isolated Single Phase Single Output 19inch 220VDC to 48VDC 40A DC/DC Converter Infographics

Telecom Power Solutions Switching Mode Isolated Single Phase Single Output 19inch 220VDC to 48VDC 40A DC/DC Converter Design Specs

Frequently Asked Questions

Q1. How do we work?

Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q2. What kind of products can you buy from us?

You can purchase DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.

Q3. How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not function properly as described and the issue is proven to be caused by our factory, we will provide replacement services for the same item. Our support team is always available to assist you.

Q4. What should we do if we cannot find what we need on your website?

We offer custom bespoke solutions based on specific customer requirements. You can email us your detailed requirements, and we will check if we can develop them. We create new models monthly, and some might not yet be updated on the website. Alternatively, you can send us samples for custom development.

Q5. Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?

Yes, we welcome sample orders so you can test and verify the build quality and operational performance. We are confident you will be satisfied with the results and our competitive offerings.

Q6. Can multiple units of the DC-DC converter be connected in parallel?

Yes, units with the same specification support parallel connection. This allows you to combine multiple converters to increase total power and current capacity for demanding loads.
