Wemax Power
1 / 2
The telecom power Inverter 12VDC TO 120VAC 60HZ 0.5KVA 400W Pure Sine Wave Inverter complies with a stand-alone power source designed for home appliances. When the AC utility is cut-off, the transfer relay is de-energized and the connected load is automatically transferred to the Inverter/Home UPS output. Once the AC utility being restored, the relay is energized and the connected load is automatically remained to the AC utility.
telecom power Inverter 12VDC TO 120VAC 60HZ 0.5KVA 400W Pure Sine Wave Inverter Working Mode Settings:
| Item | Working Mode | Definition |
|---|---|---|
| 1 | Pure DC Input for main power | Pure DC input: when the DC power is off, the DC power inverter shuts down to stop working. |
| 2 | DC priority and AC Bypass input | AC and DC power input together: DC power takes priority and AC serves as backup. When DC power goes off, it switches automatically to AC power. |
| 3 | AC priority and DC Bypass input | AC and DC power input together: AC power takes priority and DC serves as backup. When AC power goes off, it switches automatically to DC power. |
| Model | WMX-DTA500-12 |
| Product Name | 12VDC TO 120VAC 60HZ 0.5KVA 400W Pure Sine Wave Inverter |
| Capacity | 500VA |
| Power | 400W |
| Input | |
| Nominal Voltage | 120Vac |
| Range | 90-145Vac |
| Frequency | 45 ~ 65 Hz |
| Output | |
| Voltage | 120Vac |
| Voltage Regulation (Battery Mode) | 120Vac ±3% |
| Frequency (Battery Mode) | 60 Hz±0.1% |
| Power Factor | 0.8 |
| Waveform | Pure sine wave |
| Battery | |
| Battery Voltage | 12Vdc |
| Backup Time (at full load) | Long backup time available |
| Environment | |
| Relative Humidity | 0-95% non-condensing |
| Operation Temperature | -20~60 degree C |
| Audible Noise | Less than 50dBA (at 1 meter distance) |
| Dimension | |
| Dimensions | 440*44*300mm --- W*H*D (mm) |
| Weight (kg) | 4.5KG |

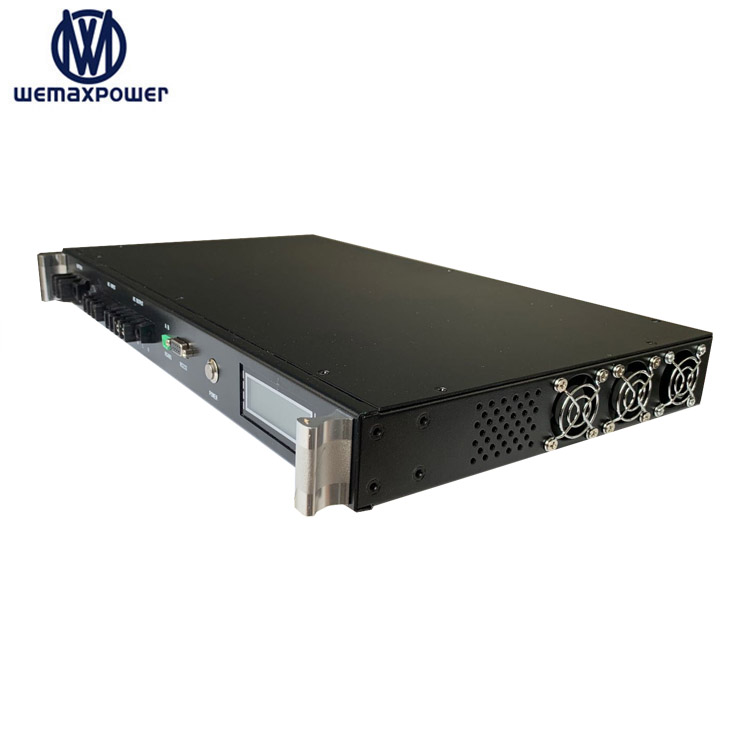

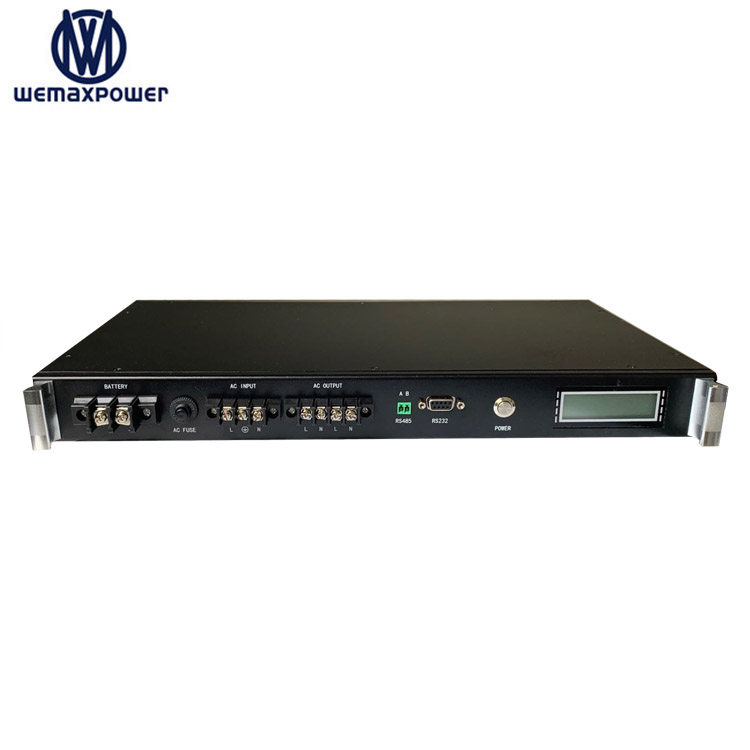

telecom power Inverter 12VDC TO 120VAC 60HZ 0.5KVA 400W Pure Sine Wave Inverter Product Images:
1. Guarantee time: one year.
2. Return policy: we can exchange goods if there is a quality problem.
1. Payment terms: L/C, T/T, Western Union, MoneyGram, Paypal, etc.
2. Shipping terms: Ship, DHL, UPS, FEDEX, TNT, EMS.
3. Sample order delivered within 24 hours, order lead time within 3 days.
